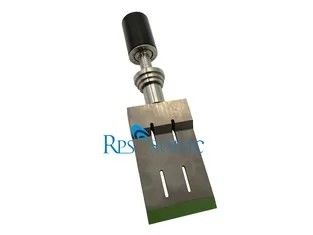

400w ultrasonic cutting device,
35khz ultrasonic cutting device,
35khz ultrasonic food cutting device
What's the principle of ultrasonic cutting?
The principle of an ultrasonic cutter is completely different from conventional one. It uses the energy of ultrasonic to melt the material to be cut. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause any chipping or breakage. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.
The basic structure of the ultrasonic cutting machine is an ultrasonic transducer, a horn, a cutting blade (tool head), and generator. The ultrasonic generator converts the commercial power into a high-frequency high-voltage alternating current and transmits it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to amplify the output amplitude of the transducer. The cutting blade (tool head) further enlarges the amplitude on the one hand and focuses the ultrasonic wave. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting the material can be achieved.
Ultrasonic food cutters are a type of equipment that uses ultrasonic energy for cutting. It is characterized by cutting without the cutting edge in the traditional sense.
We offer complete professional equipment and components for ultrasonic food cutting. Compared with traditional cutting machines, ultrasonic food cutters have more sanitary cutting, shorter downtime, better cost-effectiveness, higher consistency of cutting surfaces and longer blade life.
Ultrasonic cutting also has a great advantage in that it has a fusion at the cutting point while cutting. The cutting site is perfectly sealed to prevent loosening of the material being cut.
Ultrasonic food cutter features:
1. High cutting precision and constant material shape.
2. easy to apply to automated production.
3. the cutting surface has good finish and good bonding performance.
4. fast, high efficiency, no pollution.
We have hand-held cutters and fully automatic cutters. The hand-held cutter is small, beautiful in appearance and easy to operate. It can be replaced with different specifications and different material cutting knives to achieve the ideal cutting equipment. The fully automatic cutting equipment is equipped with a computer-controlled cutting head for the cutting of batches of material.
This ultrasonic food cutter uses ultrasonic vibration to reduce the frictional resistance between the blade and the food. It cuts the blade smoothly, reduces food debris during the cutting process, and increases productivity. It uses a vibrating handle that is simple to operate and quiet and silent when cutting, without vibration. This device vibrates at a high frequency of 40KHZ or 20KHZ. This low friction allows the cutting blade to cut food smoothly, making the cut surface of the food clean, beautiful and non-deformable.
Jiayuanda Technology - Professional ultrasonic food cutter manufacturers and suppliers in China, providing ultrasonic products for sale. Welcome to wholesale the best ultrasonic food cutter at competitive price from our factory.
ultrasonic cake cutter is the high power ultrasonic cutting system, which can cut the cake or food with neat surface, no chip will be left, and the knife is no sticky.
|Machine||Ultrasonic rubber/cake Cutter|
|Cutting Blade / Horn||Titanium|
|The width of blade||82.5mm|
|Cutting thickness||10~20mm(depend on materials)|
Clear and clean cutting surface
Small vibration allows to reduce the frictional resistance at cutting surface, and allows the ultrasonic blade to cut the products smoothly.
Reducing wastes of food and down time
Ultrasonic cutting prevents a mount of wastes of food during cutting, so that means it reduces production cost. Also, it allows to reduce down time to clean the production machines.
Sanitary production environment
The ultrasonic vibration prevent the food products from adherence to the surface of the cutting blade, so the surface of the blade keeps clean condition. The titanium blade is not oxidised, and has high durability.
Easy to use with automated line
Ultrasonic food cutter is designed to use in the automated production line. Also, it is easy to install the ultrasonic cutter to the existed line.
Cosmo System provide not only the components of ultrasonic cutter but also complete automation sytem.
Typical ultrasonic food cutting components include four major elements: a power supply, a converter, a booster and a cutting horn, as explained below.
1. Power supply
The ultrasonic power supply, also referred to as a generator, is an electronic device that takes standard 50/60Hz AC line voltage and converts it to high frequency electrical energy.
The ultrasonic converter is a sealed electro/mechanical device that receives the 20kHz electrical energy from the power supply and converts this electrical energy to high frequency mechanical vibrations using PZT(piezoelectric) ceramic discs that expand and contract within the converter housing.
The booster is a machined metal mechanical amplifier that will either raise or lower the amplitude of the horn's mechanical motion depending on the configuration of the masses machined at each end.
4. Cutting horn
The cutting horn, also referred to as a knife or a blade horn, is the component that comes into contact with the product and does the actual cutting. This horn is machined from titanium, has excellent acoustic properties, good surface hardness and superior fatigue value.
Our ultrasonic components and horns are designed for continuous operation under the most demanding production environments. Welcome customers to cooperate with us for a brilliant future!
Frozen cakes and pies
Snack and health bars
Fresh/frozen prepared meats
Dough or baked cookies
Soft and hard cheeses
Candy and confections
Ice cream bars
