Digital Generator Ultrasonic Welding Equipment Simple To Operate

Digital Generator Ultrasonic Welding Equipment Simple To Operate

portable ultrasonic welder

handheld ultrasonic welder

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-SW30

Contact Us

Request A Quote
Product Details
Frequency:
30khz
Power:
300W
Horn:
4mm
Horn Material:
Alumium Alloy Or Titanium Alloy
Generator:
Digital Generator
Weight:
4.5kg In Totall
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union
Supply Ability
200PCS/MONTH
Product Description

30Khz Portable ultrasonic spot welding equipment HDPE film welding



Parameter:



Item Parameter
Frequency 40Khz
Power 300W
Ceramice chips 2chips
Connect screw M8



Introduction:

The handheld ultrasonic spot welding gun uses ultrasonic plastic welding technology, which converts high-frequency electrical energy into mechanical vibration energy through an ultrasonic transducer, and then transmits the mechanical vibration energy to the welding head through a banner device after changing the amplitude. When the welding head is close to the surface of the processed product, ultrasonic waves are automatically generated. Micro-amplitude high-frequency vibration is performed on the surface of the processed product. The friction with the surface of the processed product is converted into heat. The processed product is melted and then welded. The welding operation is relatively perfect for welding, and welding with different effects can be obtained by changing the welding horn.



Advantage:
Small size, simple operation and fast cleaning; using module integrated circuit, strong power output;
Built-in fully automatic protection circuit, safe to use, stable and reliable work. The welding surface is firm, strong, beautiful and environmentally friendly.

The hand probe of the ultrasonic spot welder weighs only 0.9kg, is lightweight and convenient, and is flexible in operation. No needle thread is required for welding, and the strength of the solder joint is high and it does not fall off.
According to the size of the riveting point of the product to be welded and the welding requirements, different ultrasonic welding horns can be replaced, which is fast and convenient.



Application:

Portable ultrasonic welding machine, handheld ultrasonic welding machine, has the advantages of light body, easy to carry, easy to move and operate. The handheld ultrasonic welding machine can be divided into: ultrasonic plastic spot welding machine, ultrasonic metal welding machine, polymer battery Positive spot welder, lithium battery negative spot welder, aluminum-to-nickel spot welder, amorphous silicon spot welder, etc.Suitable for spot welding, pressure welding, riveting, drilling, boundary flower, dot marking, sealing, screws Embedding, decal welding, etc.

Ultrasonic plastic welding machine is suitable for welding, riveting, and embedding molding of ABS, PE, PC, PS, PVC, PP, SAN, PA, acrylic, nylon, ABS and PC composites, as long as the welding head is changed, Can be used for a variety of applications in one machine, widely used in electronics, electrical appliances, automotive parts, plastic toys, stationery, daily necessities, crafts, cosmetics and other industries.

The size and shape of the welding horn of the handheld ultrasonic spot welder can be customized



Feature



1. Ultrasonic spot welding machine is used for riveting, cutting, sewing and welding edges of plastic products.



2. Optimized the shortcomings of hot welding yellowing, flanging, and excessive thickness. Appropriate wrench design uses module integrated circuit, strong output power, easy operation, built-in automatic protection circuit, safe use, stable and reliable operation. 3. It is assembled with high-quality components. The whole machine is designed to be small in size, easy to carry and move, reliable in performance, simple to operate, and the main business.



The original ceramic transducer has strong output capability, stable welding quality and low failure rate.



5. Eliminate pinholes caused by traditional sewing.



6. Use vibration friction or cutting, no smoking, no out-of-focus, eliminate the risk of high periodic waves, thermal cutters and air pollution.



7. It can be processed without preheating, convenient operation, fast continuous processing speed, high efficiency and low labor cost.



8. Ultrasonic vibration generator has the advantages of large output, high efficiency, low welding head temperature and stable machine quality.

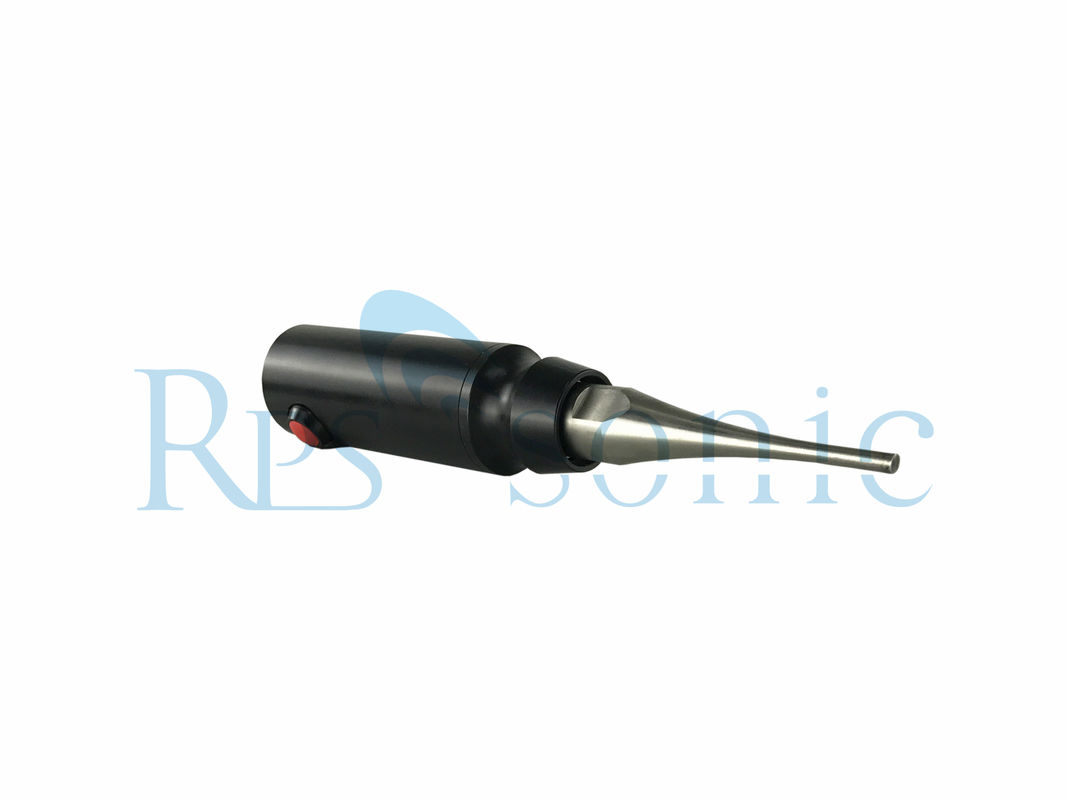

Digital Generator Ultrasonic Welding Equipment  Simple To Operate 0



Digital Generator Ultrasonic Welding Equipment  Simple To Operate 1
