20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing

20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing

Waterproof Ultrasonic Welding Equipment

1000w Ultrasonic Welding Equipment

Cap Sealing Ultrasonic Welding Equipment

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

CD20

Contact Us

Request A Quote
Product Details
Frequency:
20khz
Power:
1000w
Usage:
Gap Welding
Type:
Waterproof
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

20Khz Ultrasonic Waterproof Welding Equipment for Cap Welding And Sealing

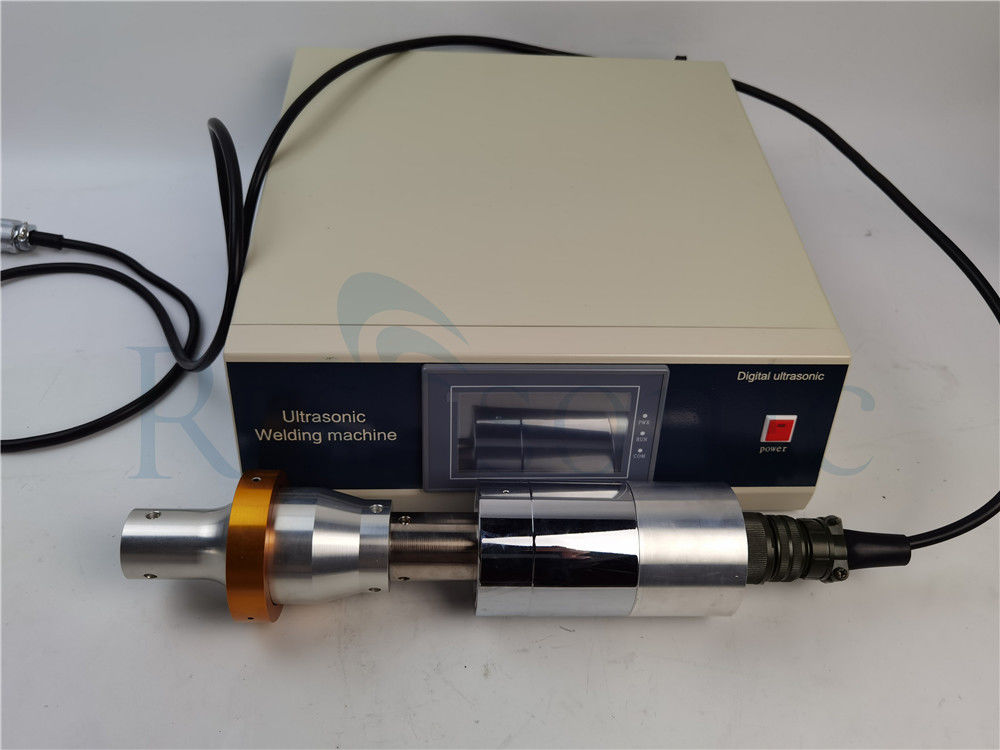

20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing 0



The welding principle of the ultrasonic plastic bottle cap welding machine:

The plastic cover box ultrasonic welding machine generates a 15KHZ (or 20KHZ) high-voltage high-frequency signal by an ultrasonic generator, and then converts it into the mechanical vibration energy of the same frequency through the piezoelectric inverse effect of the ultrasonic transducer, and acts on it in the form of audio longitudinal wave Plastic products on the workpiece. The friction of the welding joint causes heat generation on the surface of the workpiece. When the temperature rises to the melting point of the plastic workpiece itself, the interface of the workpiece melts rapidly, and then fills the gap between the interfaces. When the vibration stops, the workpiece is cooled and shaped under a certain pressure at the same time. Perfect welding. Plastic welding is the welding of the main body and the main body, and the welding process of welding, embedding, forming, riveting, and cutting can be achieved by using a special welding mold.



Features of ultrasonic standard plastic wine bottle cap welding machine:

1. Ultrasonic PP plastic bottle cap box welding machine can choose the original imported ultrasonic transducer and ultrasonic generator from Japan, the United States, Germany, and Taiwan, and the quality is reliable;

2. Desktop ultrasonic plastic bottle cap shell welding machine adopts linear guide bearing, precision fine-tuning device, and excellent performance;

3. The ultrasonic food plastic bottle cap welding machine is an electric lifting body, and uses a gear up and down design, which is easy and convenient to operate and has high strength;

4. The ultrasonic plastic box shell welding machine is a digital adjustable pressure trigger system, and the trigger mode adjustment technology is the world's leading;

5, 2600W ultrasonic plastic anti-counterfeiting bottle cap welding machine is designed with IC control loop, automatic frequency tracking, overload protection device, stable quality;

6. Ultrasonic PE plastic box welding machine is designed with anti-backward-back and coaxial direct pressure design. The pressure is balanced and the welding precision is improved;

7. The surface of the ultrasonic bottle cap and box welding machine is well formed, without damage or deformation, no scratches and glue residue;

8. The ultrasonic ABS plastic box welding machine is formed by gravity casting. It adopts a large base and a square column with high welding precision. It has the most advanced international welding modes of time welding, deep welding and collapse welding.

20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing 1

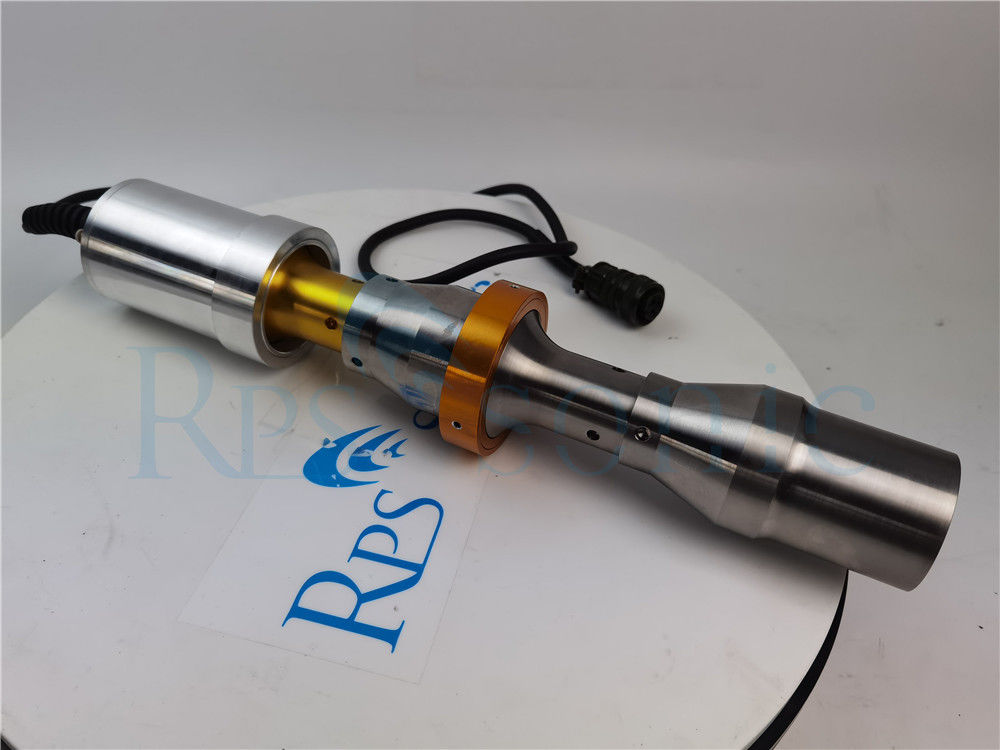

This is the description of 20KHz converter and booster for ultrasonic plastic welding machine



type CD20
frequency 20KHz
power 1000watt
power supply AC220v
Application For drinking sealing



20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing 2

Ultrasonic sealing is especially suitable for:



Bag of thermoplastic film

Liner, cover and cup

Carton with thermoplastic coating

Valve film / filter material

Screw cap on the carton/film

20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing 3

20Khz 1000w Waterproof Ultrasonic Welding Equipment For Cap Welding Sealing 4
