20Khz 1000w Manual Ultrasonic Cutting System For Food Cutting

20Khz 1000w Manual Ultrasonic Cutting System For Food Cutting

20Khz Manual Ultrasonic Cutting System

1000w Ultrasonic Cutting System

Titanium Ultrasonic Cake Cutter

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-HC20

Contact Us

Request A Quote
Product Details
Frequency:
20khz
Power:
1000w
Horn:
Titanium
Horn Size:
305mm
Application:
Bread,cake,sandwish,nougat,cheese
Weight:
20kg
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

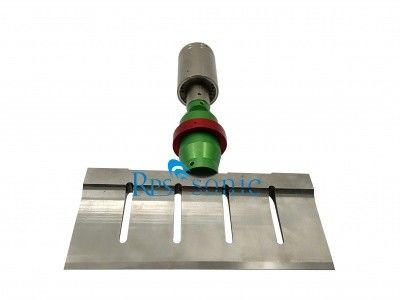

20Khz 1000w High Quality Manual Ultrasonic Cutting System For Food Cutting



Parameter



Machine Ultrasonic cake Cutter
Frequency(KHz) 20Khz
Power 1000 W
Cutting Blade / Horn Titanium
Voltage(V) 220V
The width of blade depend on your requirement
Cutting thickness 10~20mm(depend on materials)
Horn amplitude 10-40μm
Equipment weight 25KG



Description



Ultrasonic food cutting knife is a device that realizes clean cutting of food through ultrasonic high-frequency vibration. Due to the ultrasonic vibration of the cutting knife, the frictional resistance is very small, the food will not be deformed due to compression or extrusion, which can make up for the shortcomings of the existing cutting methods, and the cutting material is not easy to adhere to the blade. It is especially suitable for cutting objects that are sticky and inconvenient to pressurize (such as food products)

The newly developed manual cutting system RPS-HC20, high-efficiency ultrasonic generator drive technology, can effectively improve work efficiency; good stability, fine cutting surface, sanitary and tidy, no chips, beautiful and no deformation.

The principle of ultrasonic cutting is completely different from traditional cutting. It uses ultrasonic energy to heat and melt all parts of the cutting material, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require sharp cutting edges, nor does it require a lot of pressure, so it will not cause the edges of the cut material to collapse and damage.



Application



1. Cake cutting: It has the characteristics of delicate cut, no crumbs, no sticking to the knife, no deformation, and no coloring of multi-layer products. The types that can be cut are sandwich cake, layer cake, date cake, cream cake, mousse cake, napoleon cake, sponge cake, cheese cake, chiffon cake. In the cutting mode, the modes of equal division circle, rectangle, square, slice, strip, triangle, etc. are supported.

2. Bread cutting: It has the characteristics of fine cut, no crumb, no slag, no deformation, etc. It is mainly used for bread slicing, with high efficiency, good stability, and sanitation. The equipment is divided into multiple models to meet various scales. Demand from food factories.

3. Sandwich cutting: It has the characteristics of no deformation, uniformity, no leakage of ingredients, and beautiful cut surface. It is mainly used for cutting sandwich foods such as sandwiches and pizzas. In the cutting mode, it supports equal division of circles, triangles, rectangles, squares, etc.

4. Candy cutting: The product solves the problems of sticking knives, melting, severe tool wear, crumbs, and dregs during the cutting process of the candy industry. It can be used to cut a variety of candies and foods, such as: nougat, Soft candy, toffee, hawthorn cake, marshmallow, mochi, shaqima, etc.



Cutting advantage


• Use ultrasonic energy to cut to reduce friction
• No sticking to the knife, smooth and neat cut
• Wide range of cutting objects, both frozen products and cream-containing products can be adapted
• Cutting constant temperature, both high and low temperature can be cut
• Significantly increase processing speed
• No crumbs and edges
• Cut multi-layer products to keep no color cross-over between layers
• Use ultrasonic energy to cut to reduce friction
