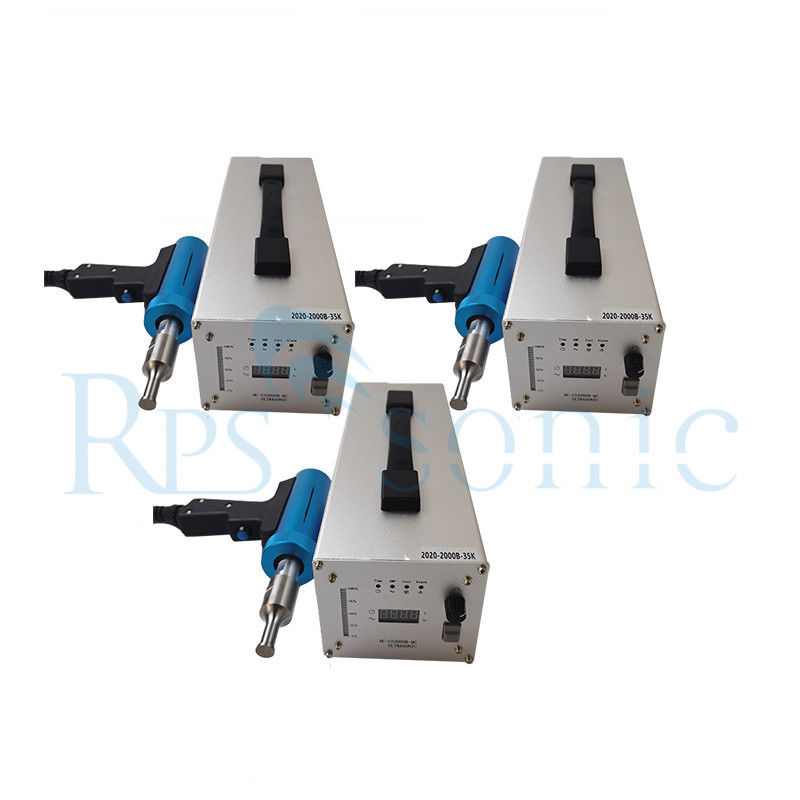

35Khz 800w Straight Type Ultrasonic Spot Welding Machine For Cotton Cloth

35Khz 800w Straight Type Ultrasonic Spot Welding Machine For Cotton Cloth

35Khz Portable Ultrasonic Welding Machine

Ultrasonic Spot Welding Machine 800w

Straight Ultrasonic Spot Welding Machine

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-SW35

Contact Us

Request A Quote
Product Details
Frequency:
35Khz
Power:
600w
Horn Marterial:
Titanium
Horn Size:
Customized
Weight:
7kg
Generator:
Digital
Voltage:
220V
Product Name:
35Khz 800w Straight Type Ultrasonic Spot Welding Machine For Cotton Cloth
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

35Khz 800w Digital Type Ultrasonic Spot Welding Machine For Cotton Cloth Welding

35Khz Portable Ultrasonic spot welding machine for cotton cloth welding



Parameter



Item Parameter Advantage: Application

28Khz ultrasonic hand welder

Straight type

▪ 28Khz 800W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate.

2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it’d using life.

3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate.

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.





28Khz ultrasonic hand welder

Gun type

35Khz ultrasonic hand welder

Straight type

▪ 35Khz 500W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.



35Khz ultrasonic hand welder

Gun type

For better application , it is better share all the material information with me, the material, thickness, operate way, speed requirements before order .

We also supply 20Khz 40Khz ultrasonic hand-weld welder.



Description



The principle of ultrasonic spot welding machine welding machine is to convert 50/60 Hz current into 15, 20, 30 or 40 kHz electric energy through an ultrasonic generator. The converted high-frequency electric energy is again converted into mechanical motion of the same frequency through the transducer, and then the mechanical motion is transmitted to the welding head through a set of amplitude modulator devices that can change the amplitude. The welding head transfers the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by friction to melt the plastic. The short pressure maintained on the workpiece after the vibration stops causes the two weldments to solidify into one body in a molecular link. Generally, the welding time is less than 1 second, and the obtained welding strength is comparable to that of the main body. Ultrasound can be used not only to weld hard thermoplastics, but also to process fabrics and films. The main components of an ultrasonic welding system include ultrasonic generator, transducer/amplitude modulator/welding head triple group, mold and frame.

Ultrasonic welding is an advanced technology to realize the joining of plastic parts and metal sheets with its advantages of fast, clean, and safe. It uses Japanese components, which is powerful and reliable. Multiple protection circuits provide enterprises with efficient welding methods and reduce production costs. Small and flexible, simple operation and other advantages.



Features



Maximize efficiency

Ultrasonic welding is monitored through time, energy, power and height limits, and the entire welding process is tested in real time, so as to maximize the efficiency of the entire welding process and minimize the energy consumption of production.

Cost saving and environmental protection

The entire welding process is clean and pollution-free, because no harmful solvents or adhesives are used during the welding process, and the product itself will not be damaged, which avoids some of the problems of traditional welding and bonding processes and saves welding costs. Due to its complete electrical characteristics, this technology does not require high-level maintenance.

Speed ​​advantage

The typical welding cycle is within 0.5 seconds. Compared with other welding methods, the welding speed is faster. This welding technique is much faster than traditional adhesives or solvents. The cooling time is very fast, and the workpiece does not need to be left in the tool for a long time to dry or solidify the welded joint.

Easy to operate

The general ultrasonic spot welding equipment is a small machine, which is relatively light to operate and does not require high manual technology. It is convenient to store after use and does not take up a lot of space. Ergonomics and lightweight handheld probe can reduce operator fatigue. The lightweight system with integrated handle makes the device easy to move and easy to move in the factory.

High welding accuracy

High-precision thrust control and highly accurate welding depth control ensure the overall welding quality and avoid weak welding. Ensure a certain welding quality and avoid burning or burning of materials.
