Handheld 40Khz Ultrasonic Cutting Device 300 Watt For Honeycomb

Handheld 40Khz Ultrasonic Cutting Device 300 Watt For Honeycomb

Ultrasonic Cutting Device 300 Watt

Honeycomb Cutting Ultrasonic Device

0.6mm Blade Ultrasonic Cutting Device

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-C40

Contact Us

Request A Quote
Product Details
Frequency:
40Khz
Power:
300w
Horn Material:
Titanium
Weight:
6kg
Blade Thicness:
0.6mm
Application:
Nonwoven Cutting ,foam Cutting,fabric Cutting
Product Name:
Handheld 40Khz Ultrasonic Cutting Device 300 Watt For Honeycomb
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

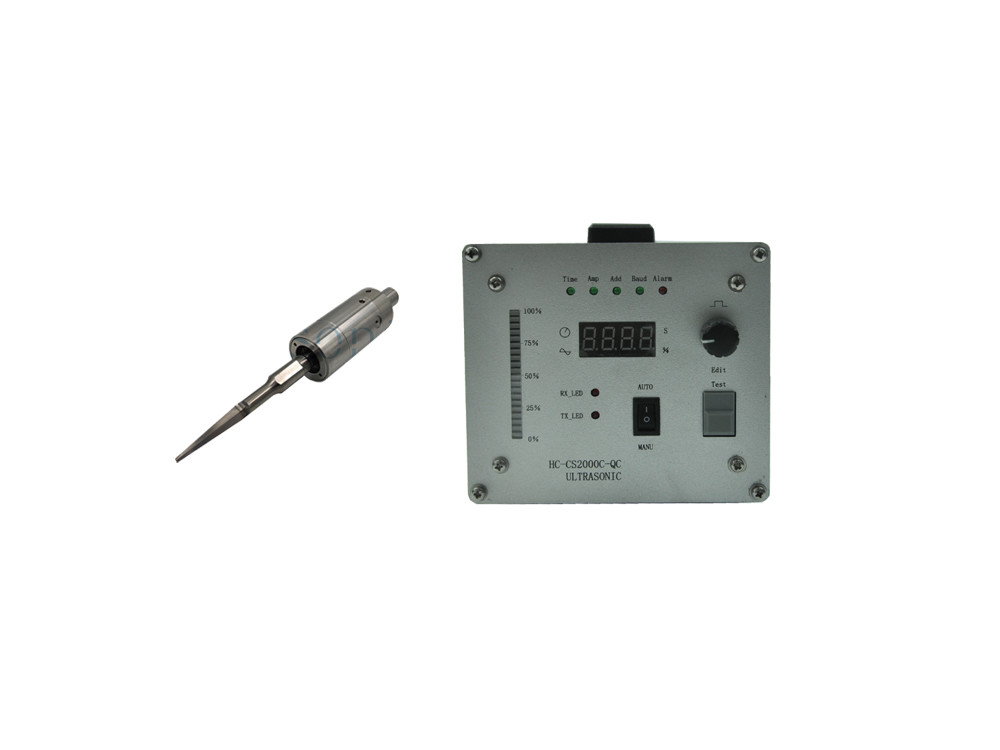

Handheld 300 Watt 40Khz Ultrasonic Cutting Device For Honeycomb Cutting



40Khz 300w Handheld Ultrasonic Cutting Device for honeycomb cutting



Parameter



Frequency 40Khz
Frequency adjustment Auto-tracking type
Max. power output 300W
Power output Infinitive adjustment
Power supply AC200V 50/60Hz
Outer dimension (mm) 120*120*380
Weight 6kg
Blade thickness 0.6mm



Introduction

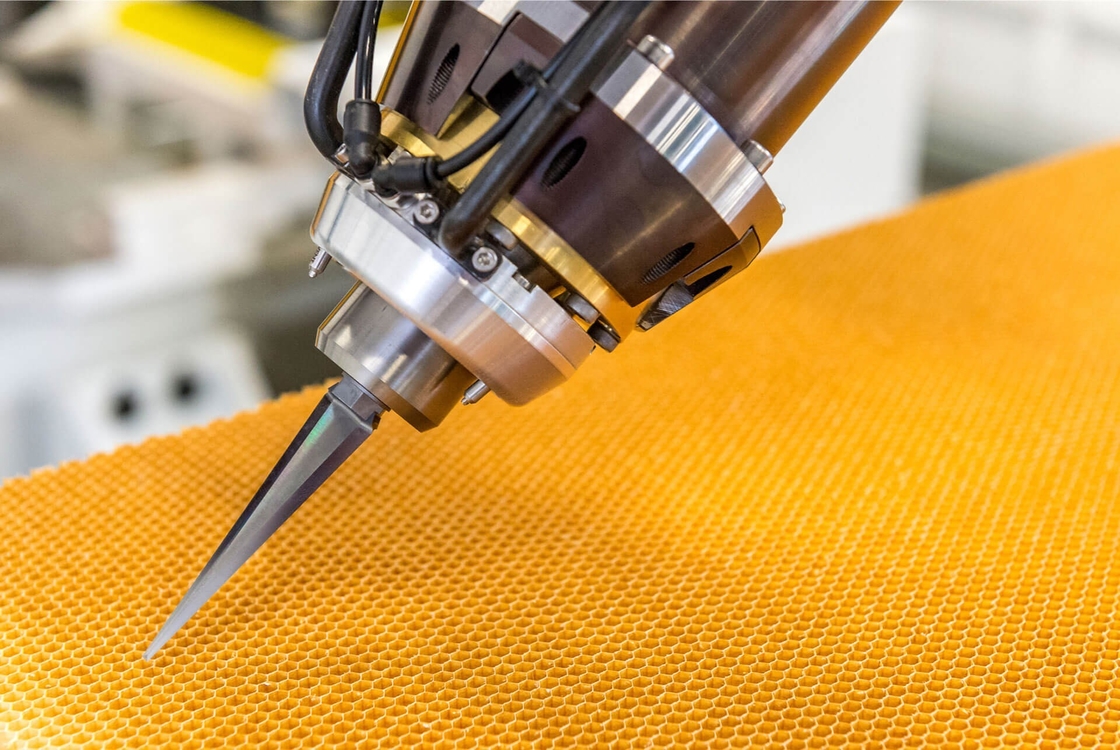

Honeycomb materials and structures are increasingly used in the aeronautics industry. Machining these materials using traditional methods is often complex, costly, and unsatisfactory in terms of quality and accuracy.
CRENO has developed a unique solution, qualified by aerospace, for these materials by combining the advantages of the ultrasonic cutting process and traditional milling machines.

This kind cutting machines combine traditional milling and ultrasonic cutting quality in one machine. It is therefore possible to machine composite skins, honeycomb materials, and bonded parts. This solution offers the opportunity to work on a wide range of materials and shapes, in particular when cutting small parts at high-speeds.


RPS-SONIC is one of the first manufacturers to offer innovative hard metal monolithic knives. This monolithic design made of solid carbide ensures the best rigidity and the best swinging behaviour of the knife and thus, overcomes traditional problems of standard brazed knives like non-consistency in quality and response when in vibration.

RPS-SONIC offers innovative high frequency knives, especially developed for stable cutting processes of composite materials. Unlike the standard version from other manufacturers (brazed tools with steel connection and Tungsten Carbide blades), our knives are solid carbide tools.



Application range


▲ Components for aerospace industry:
Wing panels, Floor panels, Doors

▲ Components for automotive industry:

Isolation panels, Elements for the seats

▲ Food industry:

For the food industry, we only use FDA approved carbide grades that have been specifically designed for an optimal performance of our ultrasonic cutting knives.



Advantages & Benefits


Single-source production

We master the entire process chain from the raw material to the finished tool and thus, we can always guarantee a stable and high quality.



Application-oriented research and development

For the solid carbide knives, we have developed a specific Tungsten Carbide grade with an improved relation of hardness, toughness and transverse rupture strength.



Individual solution-expertise

Our engineering team can work with OEM’s to develop individual solutions for each ultrasonic cutting system to achieve the most precise and stable cutting processes. Please contact us for an informal discussion on how we can support you!



High class engineering

We guarantee a highly stable and precise cutting process thanks to:

▲ Solid thread connection with improved tightening torque resistance

▲ Accurate execution of every cutting edge for improved sharpness

▲ Accurate dimensional inspection after every production step

It goes without saying that the knives have been tested successfully under real-life and severe cutting conditions.



Optimised production

Thanks to our assimilated production process and accurate inspections, we offer knives with near net shape and the highest sharpness on the market.
