20Khz Titanium Horn Ultrasonic Probe 2000w Ultrasonic Tube Sealing Machine

20Khz Titanium Horn Ultrasonic Probe For 2000w Ultrasonic Tube Sealing Machine

20Khz Titanium horn ultrasonic probe for 2000w ultrasonic tube welding machine

Parameter

Description

The ultrasonic sealing machine adopts the principle of ultrasonic high frequency vibration.

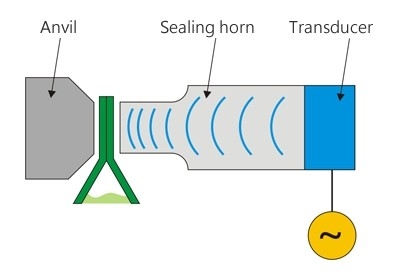

The machine converts high-frequency electric energy into mechanical energy through the transducer. The energy is transmitted to the hose workpiece through the tool head. With 20,000 times per second ultrasonic frequency and a certain amplitude, the joint surface of the hose workpiece is violently rubbed. Melt and complete the gluing process instantly.

Ultrasonic tail sealing welding machine adopts electronic program control, high degree of automation, easy operation, and built-in electronic protection circuit. The ultrasonic tail sealer has a certain degree of uniformity of the material of the metal tube and the thickness of the tube wall when fusing metal workpieces.

Ultrasonic tail sealing machine does not need any auxiliary products, the sealing speed is fast, the quality is good, and the appearance is beautiful, which solves the shortcomings of using adhesives or hot melt welding.

It is suitable for sealing the ends of various types of hoses such as toothpaste, cosmetics, medicines, food, industrial supplies, etc. The ultrasonic sealing machine uses ultrasonic principles to seal the ends of hoses and composite pipes, with good working stability and high efficiency. All moving components are imported. Material.

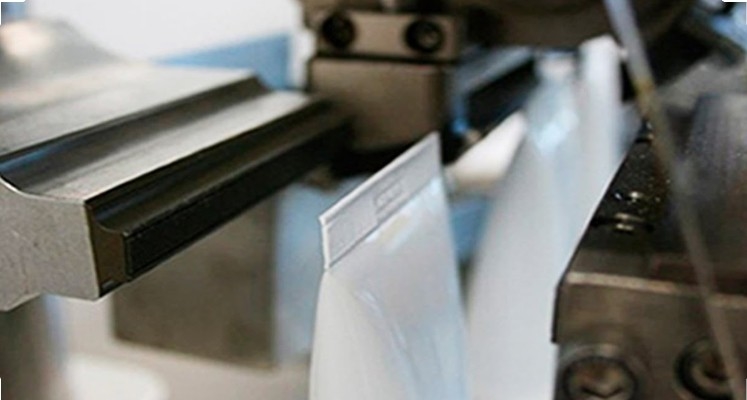

Fast, clean and repeatable sealing of plastic or laminated collapsible squeeze tubes in a single step process. Advanced systems offering an energy-saving, environmentally-friendly, efficient process for sealing tubes across a wide range of thermoplastic materials. Systems are available with integral base for manual operation or power head actuator for automated in-line production systems.

• Strength of tube seal not compromised by presence of contaminants like ink, dye, powder, emulsion, etc.
• Minimal extrusion of excess plastic and/or laminate tube material.
• Tube materials need not be pre-heated.
• Cost-saving on-demand energy usage vs. continuous energy.
• Seal strengths attainable to 100% of the parent material.
• Instantaneous solidification of bonded material.
• Optional product coding available (anvil side)

Features

Seal All plastic and laminate tubes, ANY shape or size
Production speeds of up to 15 tubes per minute

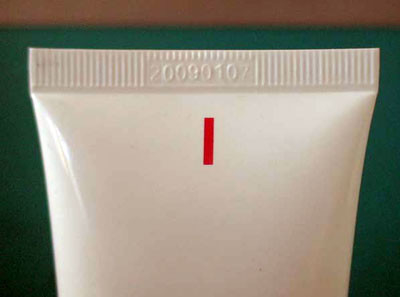

Date / Lot Coding of all tubes already built-in
Seals through product contamination
Very low reject rate, less than 1%
Ultrasonic sealing eliminates 'flash' and 'ears' versus hot-air sealing methods
Rotary cutting knife to cleanly cut even the thickest tube materials
Change-over time of less than 5 minutes
Virtually NO CHANGE PARTS
Line operators can setup and run machine, no mechanics required
Training new operators is literally a 10-minute procedure, extremely simple
Small footprint, table-top design
Perfect for small production runs and lab use
No warm-up time needed, plug in and it's ready to seal tubes right away
No water requirement
Single phase, 110v power (no 3-phase power required)
Needs only a very small air compressor for air requirements
