50mm Miniature Ultrasonic Welding Converter Heat Resistant Long Life Span

50mm Miniature Ultrasonic Welding Converter Heat Resistant Long Life Span

piezoelectric converter

branson ultrasonic converter

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

rps-TB-922ja

Contact Us

Request A Quote
Product Details
Frequency:
20khz
CT:
18000~20000nf
Diamerter:
50mm
Ceramic Chips:
4pcs
Power:
2000W
Connect Screw:
1/2-20unf
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD150/PC FOB SHANGHAI
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union
Supply Ability
200PCS/MONTH
Product Description

Quality ultrasonic welding converter supplier replace for Branon 20khz

Parameter

Branson 922JA Converter For Use with 920 D/M (2000 Watt) Power Supplies

For use with 920 D/M (2000 watt) power supplies and the 920IW or IW+ model presses

and the 920IW or IW+ model presses



Item Parameter
Frequency 19.4~19.8Khz
Power 2000W
Impedance 8
Capatance 12000pf
Connect screw 1/2-20unf
Used for Branson 920 series



Introduction

Made in China direct replacement for Branson 922JA converter (101-135-049) that delivers superior quality and ruggedness with superior value.

Shortly after introducing the 900 series 2000W units in about 1986, Branson discovered that some high-power applications would not run properly. They solved this problem by adding a circuit board with the primary function of adding additional capacitance to the 922J converter and renamed it 922JA. Our 922JA replacement converter (AM20922) contains such a circuit board just below the insulator disc to match Branson 922JA performance.



We can supply replaced transducer for Branson, Dukane,Rinco, Telsonic and Herrmann.

For Branson welding transducer we have 20Khz, 30khz and 40khz .

For Dukane welding converter, we can supply 20Khz and 40Khz transducer.

For Rinco welding converter, we can supply 35Khz and 20Khz one, also we can supply the 60Khz &70khz ultrasonic smart card welding system for smart card wire inlay.

For Telsonic , the most populor one is 36Khz transducer for ultrasonic cutting system.

For Herrmann, we can supply the 20khz herrmann transducer.

At the same time we can customize depending on your drawing and sample.



Why RPS-SONIC TRANSDUCER:

We specialize in converter and tooling rebuild and testing, providing assurance that your complete stack is tested and verified 100% and can be tuned to the proper frequency, reducing system failures and down time.
We have the equipment and experience to fully test all converters, boosters, and tooling 100%
Custom one of a kind units
Preventive maintenance programs

1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in high power ultrasonic for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation

7. All replaced transducer work on oringinal machine for testing before shipment.

8. Local agent in Mexico.

9. Good Surface treatment, more beautiful appearance.







Service and shipment

  •  Warranty one year for transducer.
  •  You can contact us for technical inquiry any time.
  •  We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  •  We supply customized products service for small quantity also.
  •  Shipment by FED-EX /DHL/UPS/TNT
  •  100% customer satisfaction is our goal

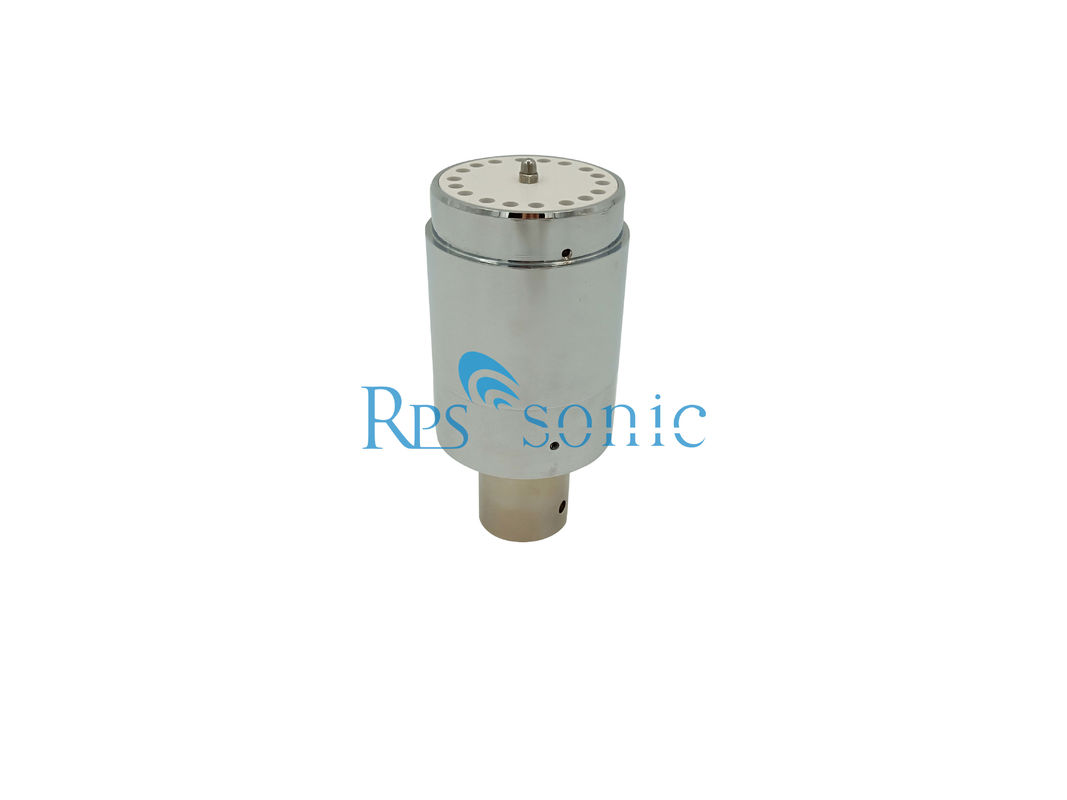

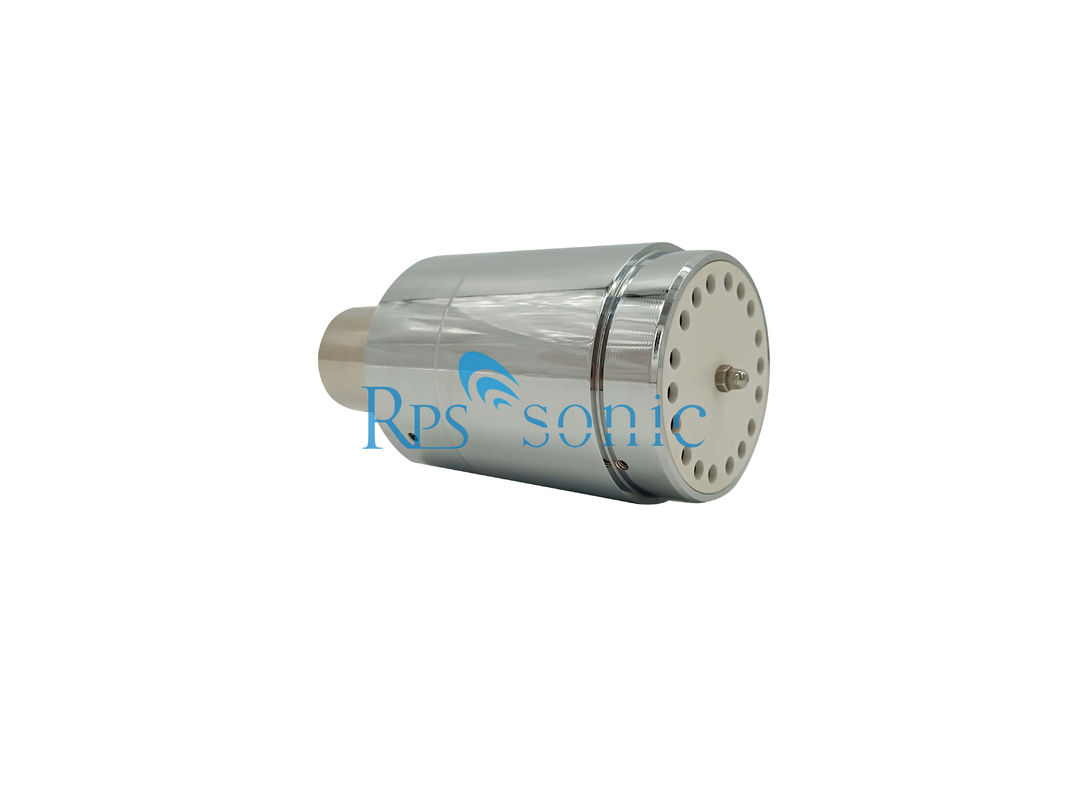

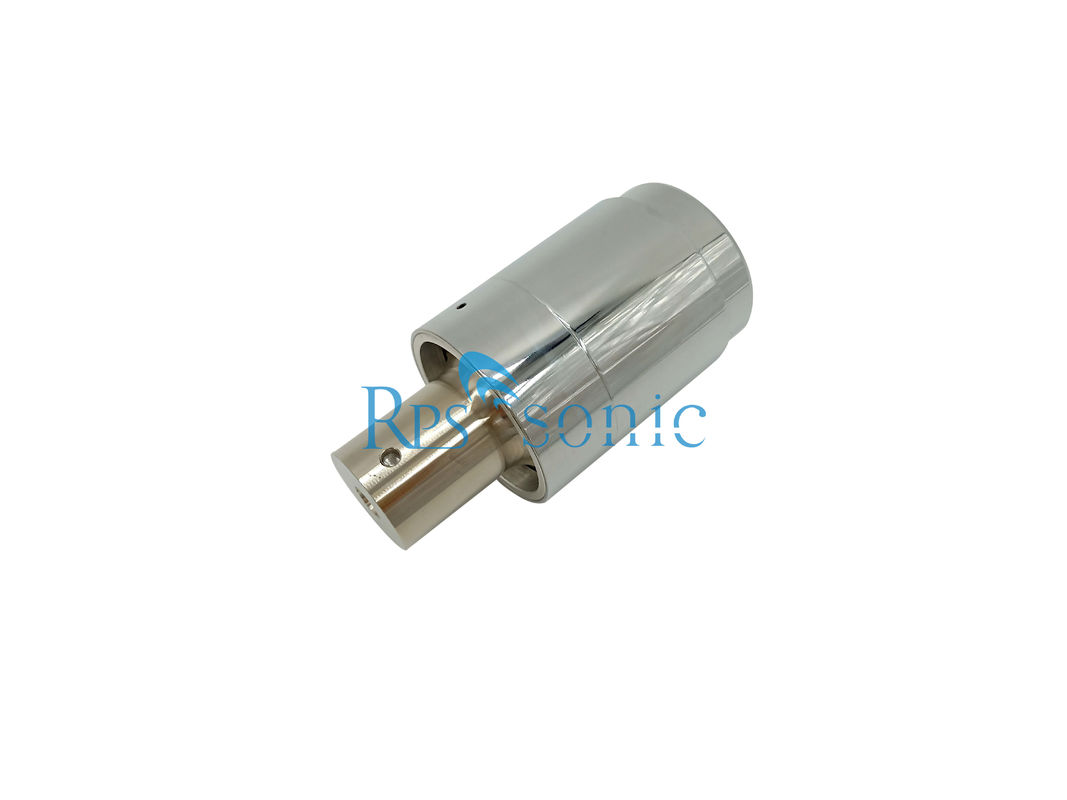

50mm Miniature Ultrasonic Welding Converter Heat Resistant Long Life Span 0

50mm Miniature Ultrasonic Welding Converter Heat Resistant Long Life Span 1
