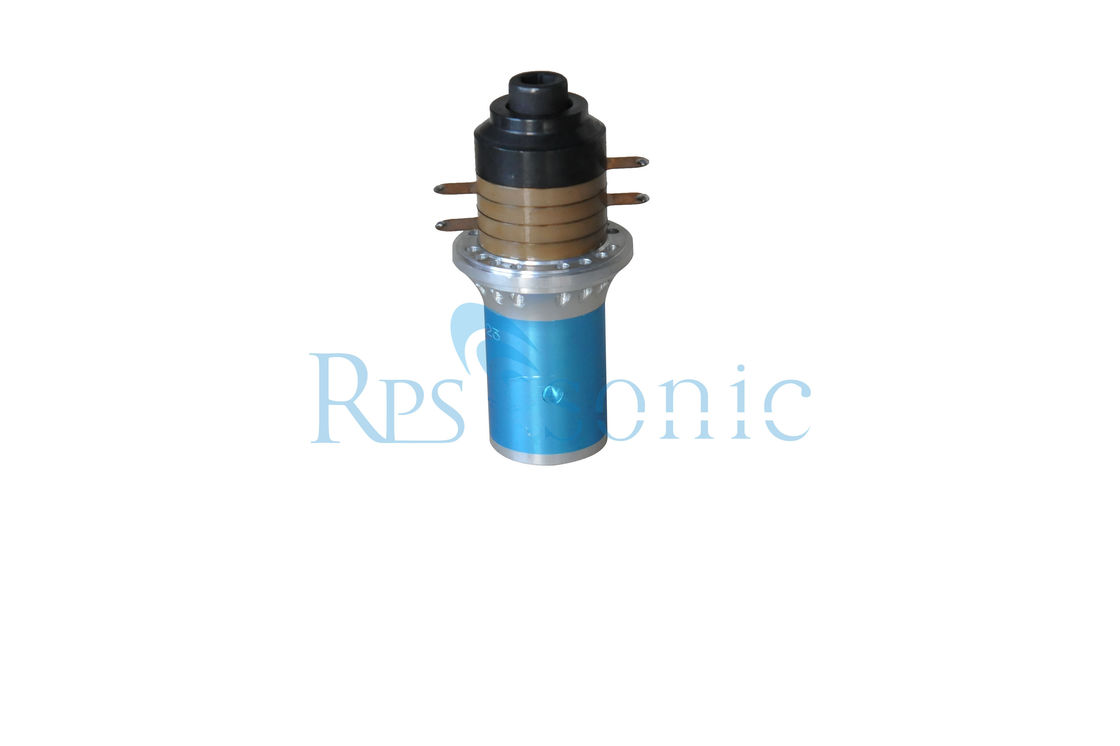

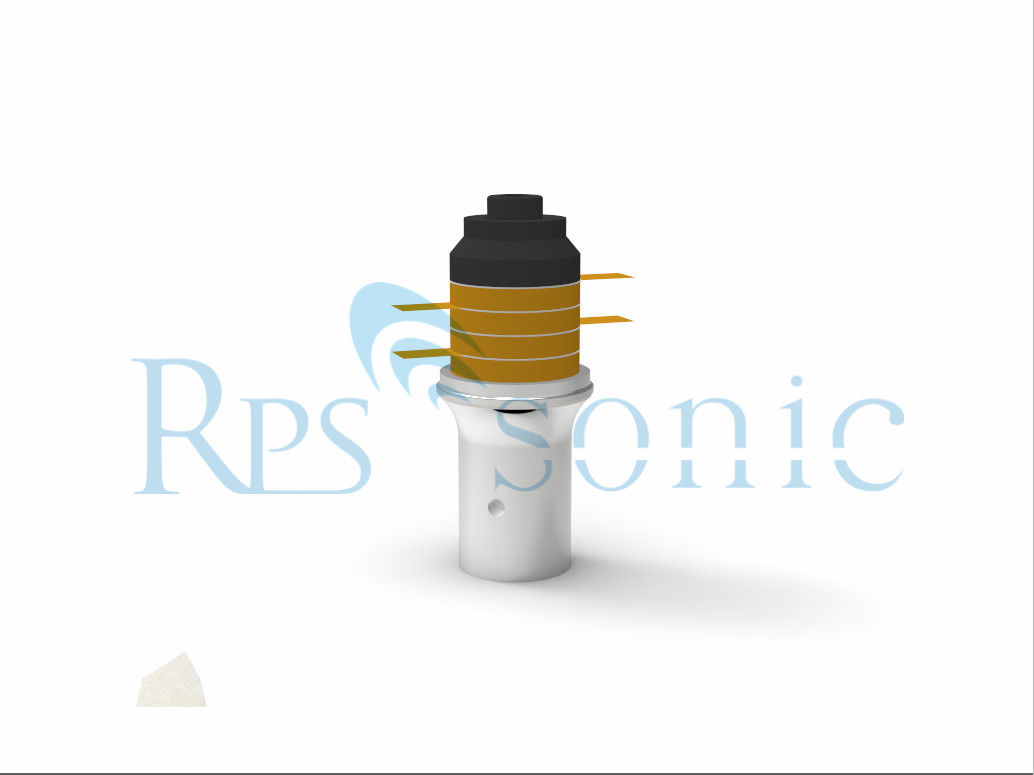

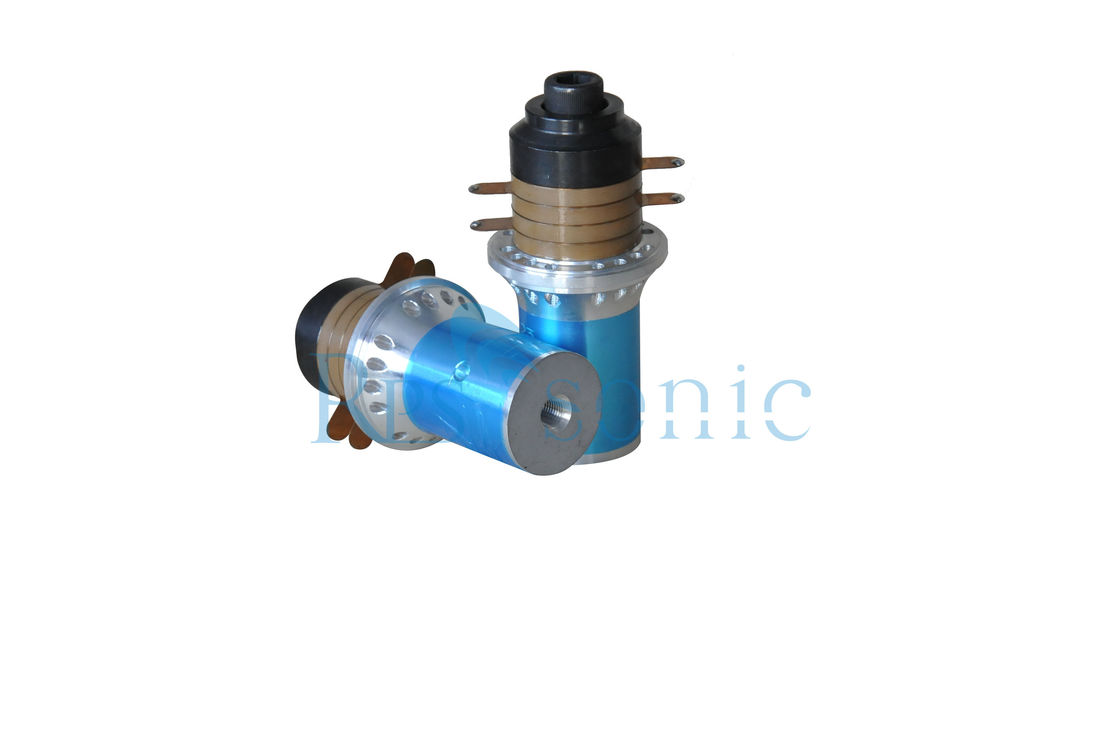

PZT 6 Ultrasonic Welding Transducer High Reliability Long Life Span

PZT 6 Ultrasonic Welding Transducer High Reliability Long Life Span

ultrasonic piezoelectric transducer

high frequency ultrasonic transducer

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

rps-5020-4zc

Contact Us

Request A Quote
Product Details
Frequency:
20khz
Power:
900W
Capacitance:
7000~11000pf
Ceramic Chip:
4pcs
Warranty:
One Year
Product Name:
PZT 6 Ultrasonic Welding Transducer High Reliability Long Life Span
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD150/PC FOB SHANGHAI
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
200PCS/MONTH
Product Description

long lifespan PZT 6 ultrasonic welding transducer for ultrasonic cutting

Parameter



Item Frequency Impedance Capacitance
4020-4D 19.8 6 7000~8000
  19.8 6 8000~9000
  19.8 6 10000~11000



Introduction



Ultrasonic welding is used across variety of industries to join together thermoplastic materials. During ultrasonic welding, high frequency mechanical vibrations and compressive pressure are applied to the plastic materials. This creates intermolecular friction within the plastic which raises the temperature high enough to reach the melting point. During high volume production in manufacturing environments, the ultrasonic welding system component which fails most often is the ultrasonic transducer, which is responsible for creating the vibration. The ultrasonic transducer converts electrical energy into mechanical energy by means of a polarized piezoelectric PZT (lead zirconate titanate) polycrystalline ceramic material using high frequency voltage. The ultrasonic transducer is composed of round PZT disks attached to a titanium machined body by means of a central bolt. The bolt creates compressive pre-stress which prevents any tensile stresses within the brittle crystals during vibration and ensures perfect coupling between all components. The piezoelectric PZT crystals behave according to linear coupled electrical and mechanical equations. The ultrasonic transducer assembly is vibrated near the parallel resonant frequency to maximize efficiency and amplitude output. Based upon warranty and field data, this size ultrasonic  transducer fails twice as often as the 20 kHz and 35 kHz transducers. The analysis was based upon studying overall converter design practices and creating a Finite Element model to understand the stress magnitude and distribution to predict the point of failure. Laboratory experiments were then performed under high amplitude conditions to increase the stress levels until failure occurred. The Finite Element model predicted the current design should be capable of withstanding up to 208% of nominal production level amplitudes (stress) before failure due to uncoupling between the ceramic crystals and the adjacent conducting plates. During the laboratory experiments the failures occurred between 179%-244%, however the failure mode did not correlate with the failure predicted by the Finite Element model. All of the failures during the experiment resulted from electrical arcing at the inner diameter of the bottom ceramic disks. Furthermore, these laboratory failure modes were not consistent with those normally observed in production environments where fracture and shifting of crystals are the dominant modes. We can conclude that the electrical load used in the experiments did not accurately represent production welding conditions, which means it could not be used as a comparison against the Finite Element model. In order to increase the lifespan of the transducer additional testing must be performed. First and foremost would be new tests which accurately reproduce production welding conditions. Then these results could be tested against the Finite Element model. Once this was completed, if the models accuracy was verified, improvements could be made and tested with the Finite Element model to try and increase the lifespan.



Why RPS-SONIC TRANSDUCER:



1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation





Service and shipment

  • Warranty one year for transducer.
  • You can contact us for technical inquiry any time.
  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  • We supply customized products service for small quantity also.
  • Shipment by FED-EX /DHL/UPS/TNT





Main features:
◆ High efficiency: mechanical quality factor is high, the resonant frequency of work available to a very high electro-acoustic conversion efficiency.
◆ large amplitude: The computer optimized design of the structure, vibration ratio is high, front cover a large amplitude.
◆ High power: in the pre-stressed screw under the action of piezoelectric ceramic energy to be the greatest play.
◆ heat resistance: the resonant impedance, heat a small, wide temperature range.

PZT 6 Ultrasonic Welding Transducer High Reliability Long Life Span 0
