Waterproof Ultrasonic Welding Tool Customized Ultrasonic Welding Booster

Waterproof Ultrasonic Welding Tool Customized Ultrasonic Welding Booster

ultrasonic welding device

diy ultrasonic welder

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Ultrasonic Welding Booster
Rplace For:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union
Supply Ability
Product Description

20Khz customized ultrasonic welding tool for drink cap welding waterproof

Products Details


typecap welding
ModelDepending on your requirements
power supplyAC220v
Material Titanium


The plastic drink lid welding machine converts the current 15 / 20Hz electric frequency into 20KHz or 40KHz high-frequency electric energy through a transistor function device and supplies it to the converter. The converter converts electrical energy into mechanical vibration energy for ultrasonic waves, and the pressure regulating device is responsible for transmitting the converted mechanical energy to the welding horn of the ultrasonic welding machine. Welding horn is an acoustic device that directly transmits mechanical vibration energy to the product to be laminated. The vibration is transmitted to the bonding surface through the welding work piece. The vibration friction generates heat energy to melt the plastic. The vibration will stop when the molten material reaches its interface. Holding the pressure for a short time can cause the melt to produce a strong molecular bond when the adhesive surface is solidified. The entire cycle is usually completed in less than one second, but its welding strength is close to a connected material.


Features :

1. According to the requirements of bottle cap products, the driving method can be selected from pneumatic, hydraulic or servo motor drive;

2. Japanese technology piezoelectric ceramic transducer with strong and stable output;

3, frequency automatic compensation circuit, the whole machine gravity casting molding, high precision;

4.Adjustable welding horn level structure, convenient mold adjustment, stable use and high welding efficiency;

5. The overall appearance of the bottle cap welding machine is good, and the surface is sprayed with plastic to resist corrosion.

6. Ultrasonic bottle cap welding machine is a square column, linear guide bearing, precision fine-tuning device;


Ultrasonic plastic lid box welding principle:
Ultrasonic plastic lid box welding machine is for PP, PE, ABS plastic wine bottle caps, cosmetics caps, beverage bottle caps, food bottle caps, oil barrel caps, petrol barrel caps, lubricant barrel caps, cosmetic boxes, set-top box shells, solar energy Design of cover boxes such as junction boxes, meter boxes, and water bottle covers. The welding principle is as follows: the ultrasonic welding head and the bottom mold of different specifications are designed for the cover box, the ultrasonic energy is generated by an ultrasonic generator, and then the ultrasonic transducer mechanically vibrates the ultrasonic energy, and the mechanical vibration energy is transmitted to the The bottom surface of the ultrasonic welding head in contact with the plastic cover. Because the mechanical vibration can cause the ultrasonic welding head to rub against the plastic cover box, and the friction generates heat. When the temperature reaches the melting point of the plastic lid box, the molecules of the plastic lid box will move rapidly, forming a melting effect. Finally, a certain pressure of the ultrasonic welding head is added, and the plastic cover box molecule is used to fill the gap between the ultrasonic welding head and the bottom mold, and it will be cooled and formed after stopping the action, and the watertight and airtight requirements are achieved after welding.


Scope of welding of plastic bottle caps and barrel caps:
Ultrasonic plastic bucket lid welding machine is specially used for welding plastic bucket lids, such as: PP plastic bucket lids, PE plastic bucket lids, oil bucket lids, lubricant bucket lids, plastic bucket lids, plastic sealing lids, packaging bucket lids, paint buckets Caps, petrol tank caps, container tank caps, liquid tank caps, fuel tank caps, chemical tank caps, etc. It can also weld plastic bottle caps, wine bottle caps, pharmaceutical bottle caps, cosmetic boxes, plastic toys, plastic stationery, electric irons, U disks, car lights, chargers, water meters, filter elements, packaging boxes, and signal boxes through the installation of molds. And other plastic cases.

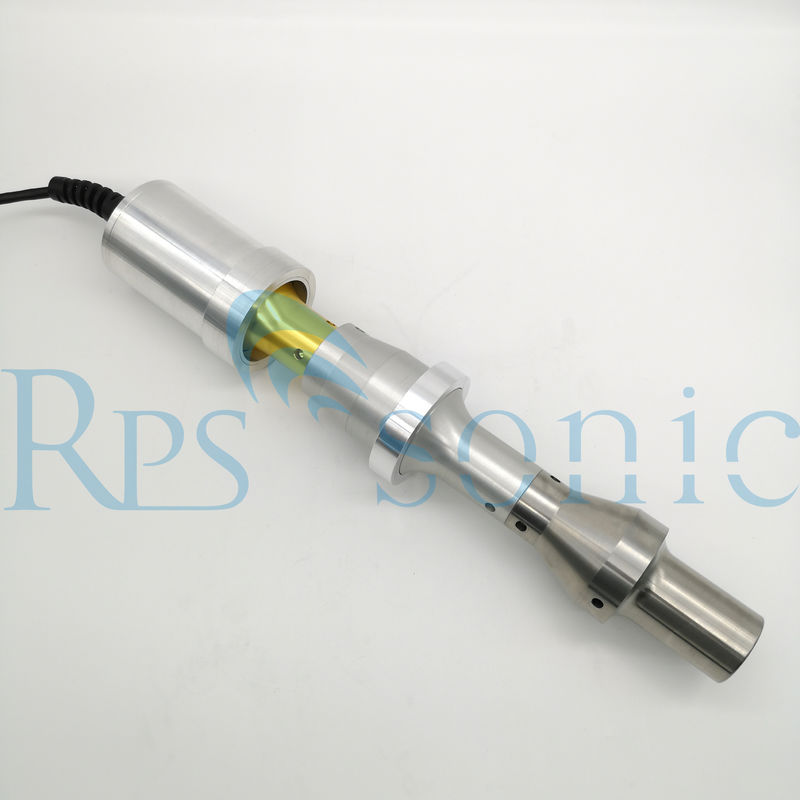

Waterproof Ultrasonic Welding Tool   Customized  Ultrasonic Welding Booster 0

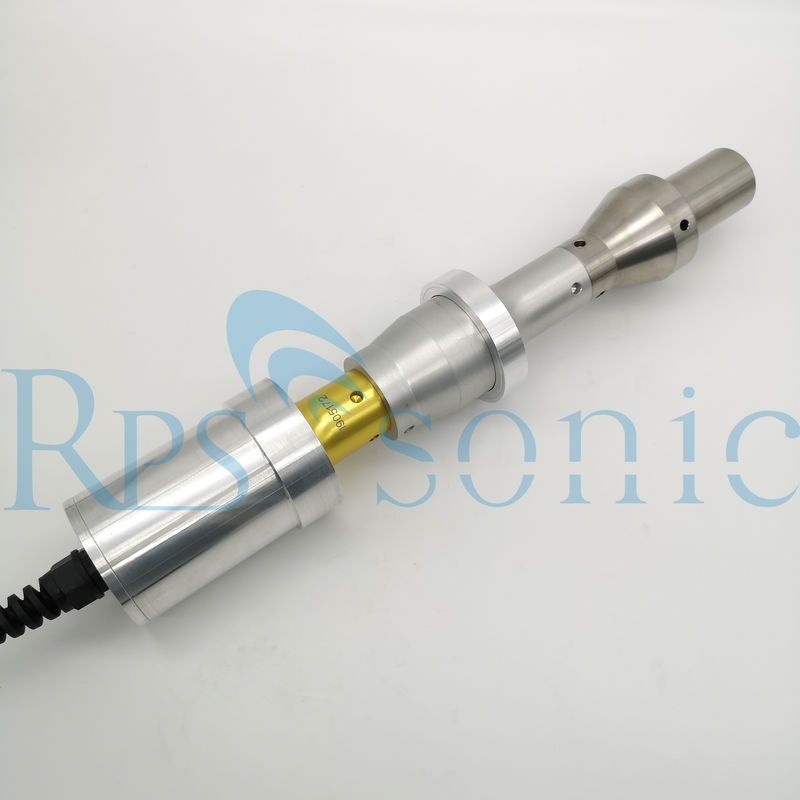

Waterproof Ultrasonic Welding Tool   Customized  Ultrasonic Welding Booster 1

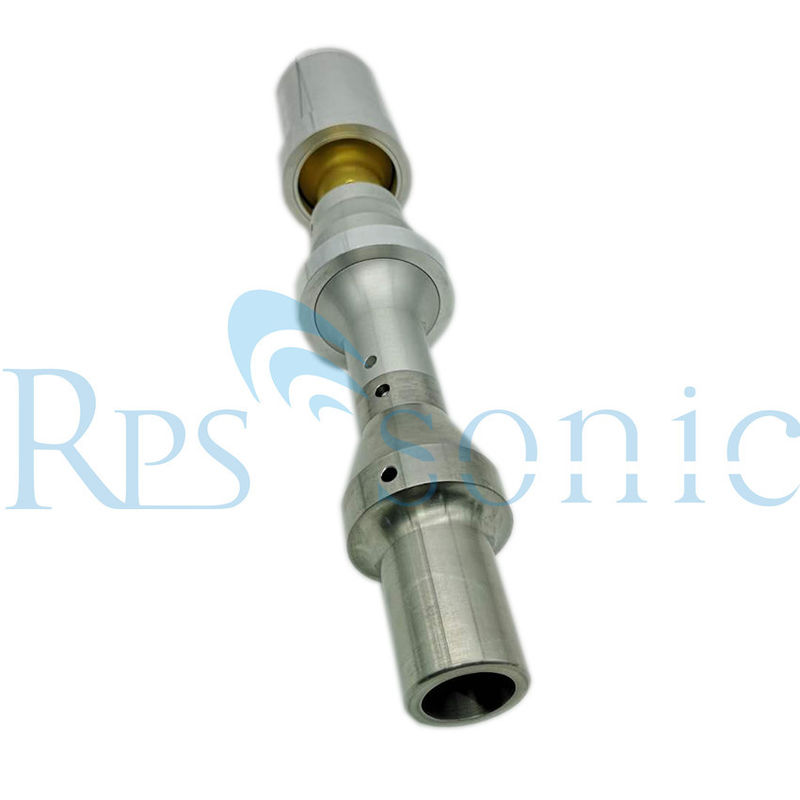

Waterproof Ultrasonic Welding Tool   Customized  Ultrasonic Welding Booster 2
