Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output

Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output
Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output

Large Image :  Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output

Product Details:
Place of Origin: China
Brand Name: RPS-SONIC
Certification: CE
Model Number: RPS-TD41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output

Description
Frequency: 20khz Power: 1800W
Ceramic Chips: 4pcs Replace For: 20khz Dukane 41S30
Application: Food Cutting
High Light:

piezoelectric converter

,

branson ultrasonic converter

20 Khz Waterproof ultrasonic converter for ultrasonic cutting process

Paramete​

Dukane 41S30 Water Proof Transducer for Ultrasonic Food Cutting

Model replaced Dukane 41C30
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 10 um
Application ultrasonic food cutting

Converter. ultrasonic converter is a piezoelectric transducer which is fed high frequency current from the power supply and outputs mechanical vibrations at the same frequency. The converter works by means of the piezoelectric effect—think quartz watches. In summary, the piezoelectric effect occurs when a mechanical deformation (change in shape due to pressure) occurs to a candidate material which will in turn generate an electric charge. The piezoelectric effect works in reverse also. If an electric field is applied to the material, it will change shape. Piezoelectric transducers found in ultrasonic converters are composed of many piezoelectric ceramic discs, covered on either side by metal plates. These are all stored under pressure in a titanium cylinder. The power supply sends high frequency current to this device, generating rapidly changing electric fields. These rapidly changing electric fields cause a rapid change in the shape of the piezoelectric material, resulting in high frequency vibrations. The titanium cylinder helps to transmit this vibration to the booster.



Dukane 41S30 sealed transducer with 24″ cord and 1/4 ” OD tubing for air cooling. Also available with SHV connector for ultrasound cable. 41S30 Sealed HD 20kHz Probe with Stainless Steel Can & Air Cooling.
A probe-horn assembly or probe-booster-horn assembly (stack) can be mounted into a customerprovided machine to ensure stability and proper alignment during operation or for automated operation. A stack is secured in a machine by clamping the probe (and booster, when present) at designated locations. Clamping at these designated locations provides stability to the stack and at the same time does not interfere with the transmission of ultrasonic vibrations of the stack components.

To mount the probe stack, see the drawings for help in determining the correct clamping locations. The sealed HD 41S30 probe in a machined open probe mount. Note that the sealed probes have a raised area near the front. The 20kHz probes may be safely clamped here. However, the smaller 40kHz probes should not be clamped in this raised area since it may place stress on the transducer mount and seals.



Why RPS-SONIC TRANSDUCER:



1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation



Service and shipment

l Warranty one year for transducer.

l You can contact us for technical inquiry any time.

l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

l We supply customized products service for small quantity also.

l Shipment by FED-EX /DHL

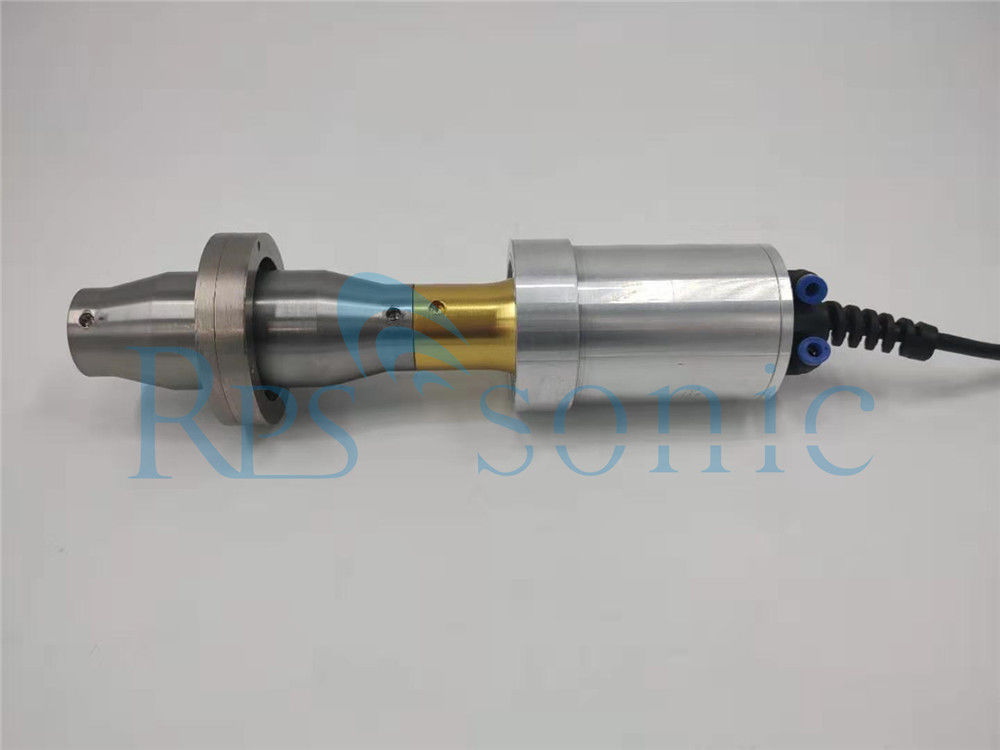

Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output 0

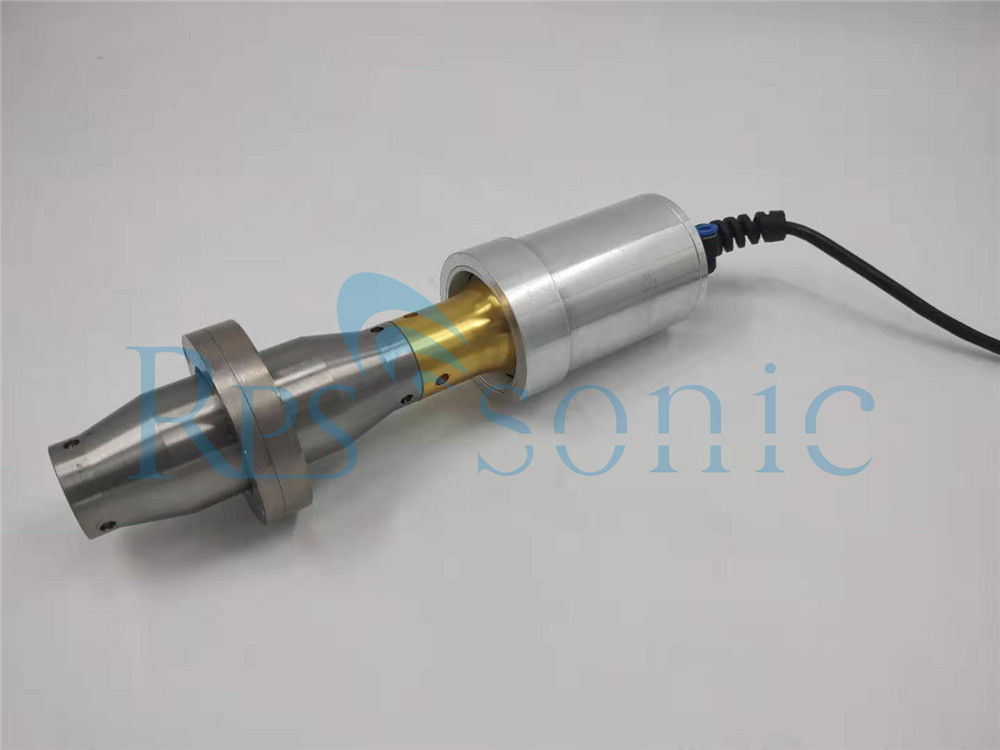

Steel Housing Waterproof Ultrasonic Converter 2000 Watt High Output 1
