ultrasonic transducer horn,
ultrasonic cutting horn

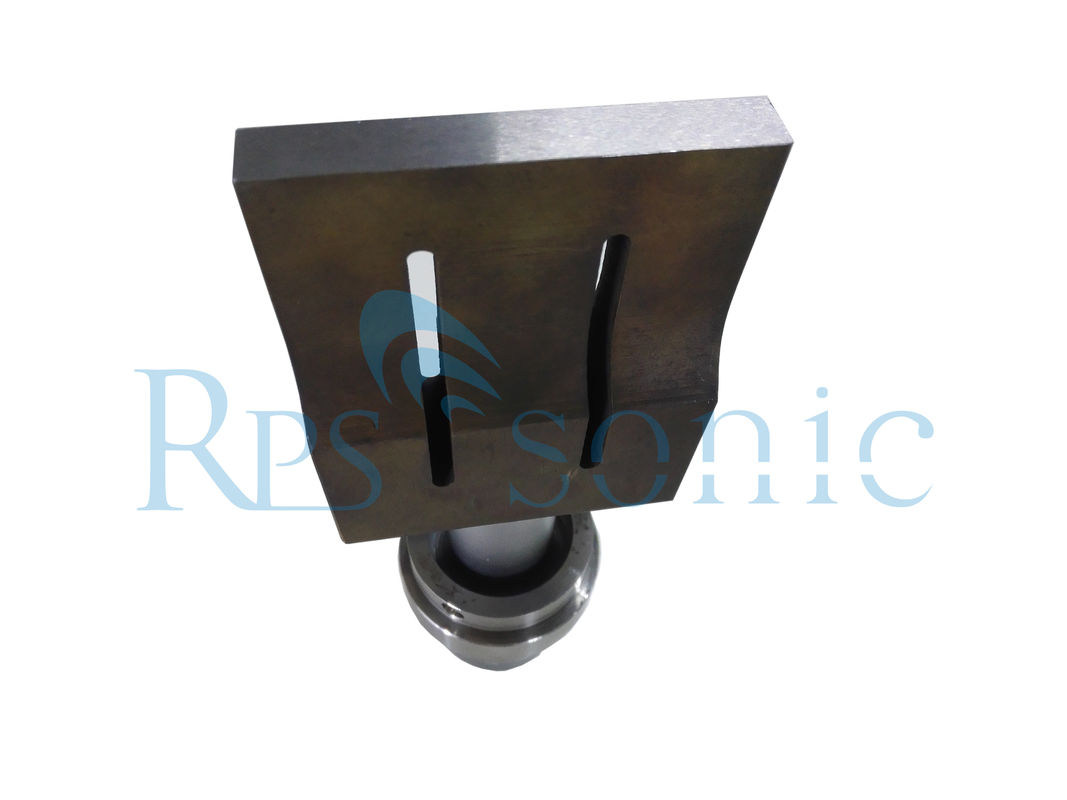

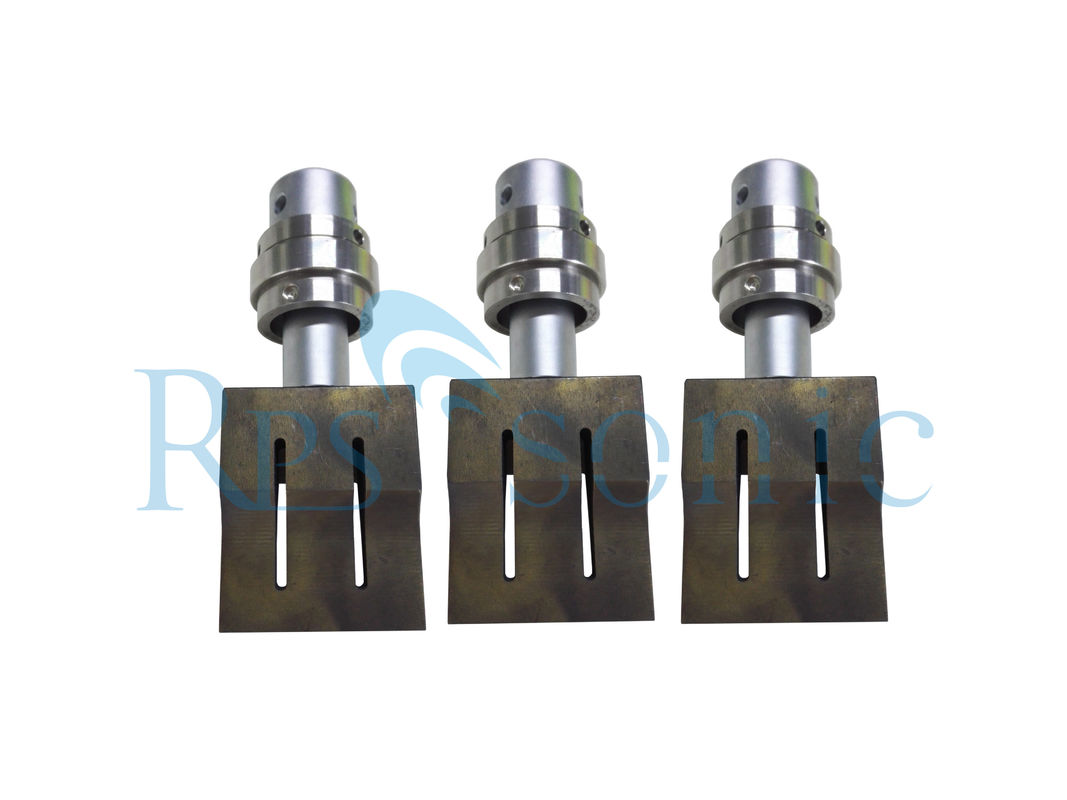

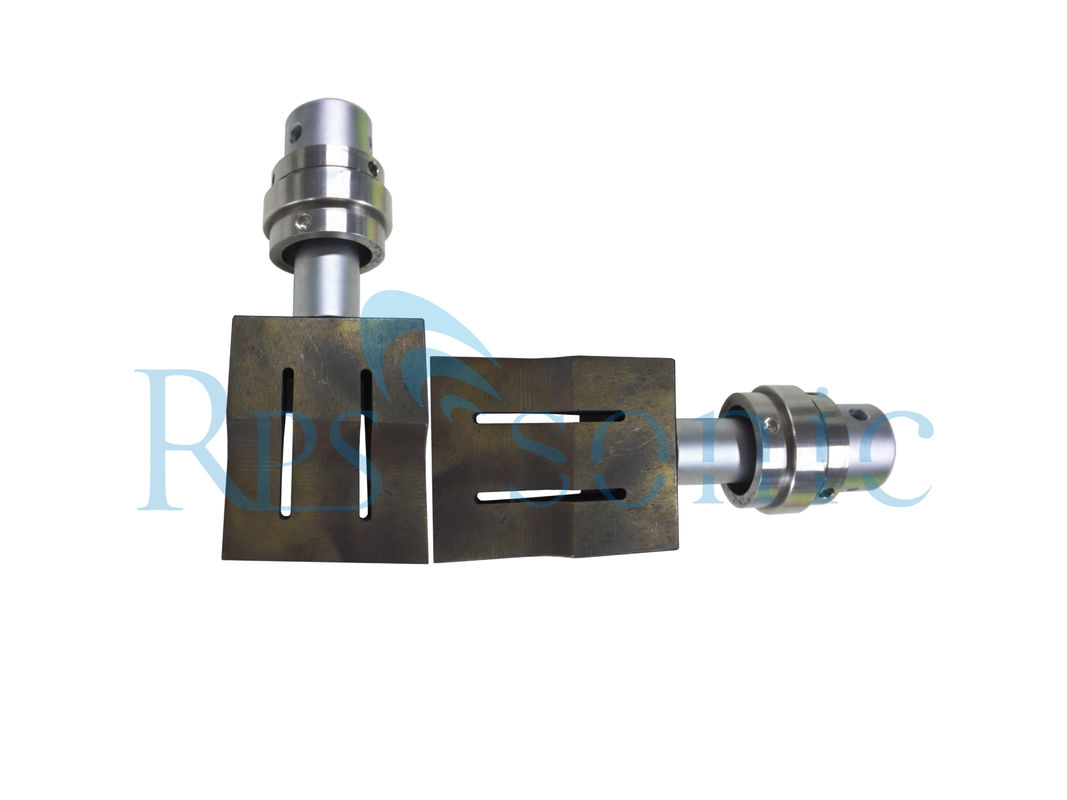

The ultrasonic Punching horn for ribbon cutting and sealing uses the energy of ultrasonic to locally melt the material to be cut, thereby achieving the purpose of cutting the material.
The characteristics of the ultrasonic cutting machine do not need sharp cutting knives, do not need great pressure, and will not damage the cutting material.
The cutting blade is doing ultrasonic vibration, the friction resistance is particularly small, and the material to be cut is not easy to stick to the blade. It has obvious cutting effect on frozen, viscous and elastic materials. It is particularly effective for cutting food, rubber or inconvenient objects.
At the same time as cutting, there is fusion effect at the cutting site. Sealing the cutting part can prevent the looseness of the material being cut (such as flashing of textile materials). The use of the ultrasonic cutting machine can also be expanded, such as digging holes, shovel, scraping paint, engraving, and slitting.
The basic composition of the sonic cutting machine. Ultrasonic transducer, ultrasonic horn, ultrasonic cutter, ultrasonic generator.
Amplify the amplitude further and focus the ultrasonic
When the ultrasonic wave is output, the ultrasonic energy is concentratedly input to the cutting part of the material to be cut by a cutting blade. Under the action of huge ultrasonic energy, this part instantly softens and melts, and the strength is greatly reduced. Only a small amount of force is needed to achieve the purpose of cutting materials.
According to the cutting method of the ultrasonic cutting machine, it can be divided into: cutter type cutting machine and cutting board type cutting machine. Two cutting methods are suitable for different process conditions and cutting objects.
Application fields of ultrasonic cutting machine:
Ultrasonic cutter type cutting machine is suitable for cutting thick, thick, long materials that are not convenient for setting cutting boards. For example, raw rubber output from rubber mixer, tube cutting, frozen meat, candy, chocolate cutting, printed circuit board, or handheld cutting machine, etc. In order to meet the needs of embossing and cutting, a cylindrical flower wheel is added to the cutting cutting board, which can cut endlessly changing patterns, the cost is very low, and the efficiency is extremely high. This cutting method is suitable for cutting sheet materials, such as various trademarks, clothing laces, fabric cutting, decorative beads cutting, natural fibers, synthetic fibers, non-woven fabrics, artificial resins, paper, film cutting, slitting and so on.
