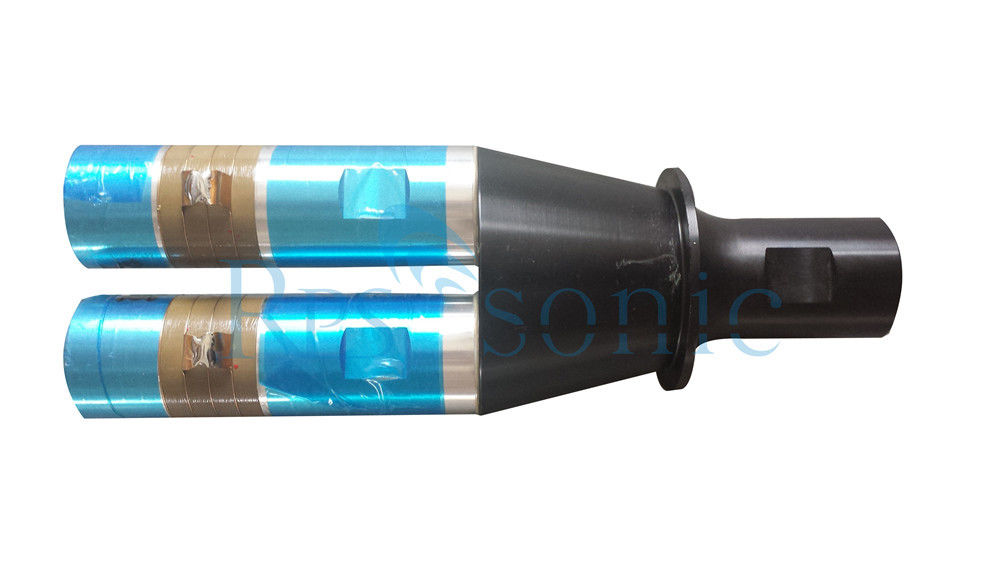

High Power Dual Vibrator 15khz Ultrasonic Piezoelectric Transducer

High Power Dual Vibrator 15khz Ultrasonic Piezoelectric Transducer

15khz Ultrasonic Piezoelectric Transducer

rps-6015-4Z-Z

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

rps-6015-4Z-Z

Contact Us

Request A Quote
Product Details
Frequency:
15khz
Power:
4200W
Capacitance:
19000~21000
Ceramic Chip:
8pcs
Warranty:
One Year
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD150/PC FOB SHANGHAI
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
200PCS/MONTH
Product Description

4200W piezoelectric High-power ultrasonic welding machine dual-vibrator transducer





Parameter



Item Frequency Impedance Capacitance
6015-4Z-Z 15KHZ 18 18000~20000
  15KHZ 18 20000~22000

Introduction



High-power ultrasonic welding machine dual-vibrator transducer, also known as vibrator, is the mutual conversion of electrical energy and mechanical energy (acoustic vibration) by the piezoelectric effect of piezoelectric ceramics, and through front and rear radiation cover blocks matched by acoustic impedance The device to be amplified.

Low resonance impedance, high mechanical Q value, high electro-acoustic conversion efficiency.

Good thermal stability, low heat generation, good frequency and static capacitance consistency.

High-quality piezoelectric ceramic wafers are used, with large output amplitude and long life.

The function of the ultrasonic transducer is to convert the input electric power into mechanical power (ie, ultrasonic waves) and then transfer it out, while consuming a small part of the power itself.

For the ultrasonic transducer, the technical problem to be solved is to design an ultrasonic transducer with a large working distance and a high frequency bandwidth.

The piezoelectric ceramic disc transducer 3 is used above; the piezoelectric ceramic disc transducer is used as the basic ultrasonic transducer, which transmits and receives ultrasonic signals; the Cymbal array receiver is located above the disc piezoelectric transducer, As an ultrasonic receiver, it is used to receive Doppler echo signals outside the frequency band of the disc transducer.





Advantage

1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.





Why RPS-SONIC TRANSDUCER:



1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation





Service and shipment

  • Warranty one year for transducer.
  • You can contact us for technical inquiry any time.
  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  • We supply customized products service for small quantity also.
  • Shipment by FED-EX /DHL/UPS/TNT



There are two types of ultrasonic welding: ultrasonic metal welding and ultrasonic plastic welding. Among them, ultrasonic plastic welding technology has been widely used. It uses the ultrasonic vibration generated by the transducer to transmit the ultrasonic vibration energy to the welding area through the upper welding piece. Due to the large acoustic resistance at the welding zone, that is, the junction between the two weldments, local high temperatures will cause the plastic to melt and complete the welding work under the action of contact pressure. Ultrasonic plastic welding can facilitate the welding of parts that cannot be welded by other welding methods. In addition, it also saves expensive mold costs for plastic products, shortens processing time, improves production efficiency, and is economical, fast and reliable.



High Power Dual Vibrator 15khz Ultrasonic Piezoelectric Transducer 0
