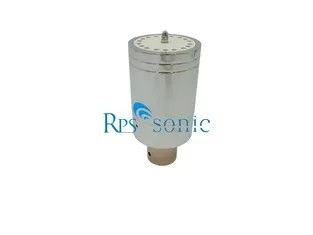

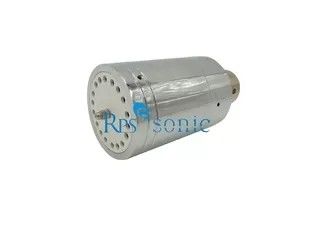

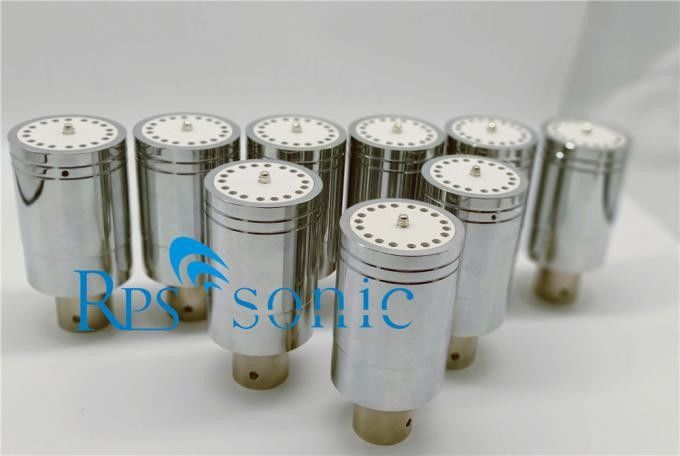

4PCS 50mm Branson 20khz Ultrasonic Transducer For IW Systems with air cooling

4PCS 50mm Branson 20khz Ultrasonic Transducer For IW Systems with air cooling

4PCS 20khz Ultrasonic Transducer

Branson 20khz Ultrasonic Transducer

ultrasonic transducer 20khz

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Ceramic Chip:
One Year
Product Name:
4PCS 50mm Branson 20khz Ultrasonic Transducer For IW Systems
For Welding
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
Product Description

20khz Branson transducer for Branson 2000 / 2000X actuator and IW systems.



Item Parameter
Frequency 19.4~19.8Khz
Power 4000W
Impedance 12
Capatance 19000~21000pf



Branson CJ20 used with all Branson® 20 kHz 2000 & 2000X series welder for all 20kHz 2000 and 2000X actuators and IW systems.All of the components used in this Branson CJ-20 replacement converters are all new, not recovered from scrapped units. These converters are made in a highly controlled and repeatable manner to duplicate the performance of the OEM models. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part. Also we have second Branson machine, all replaced transducer will work on the original Branson machine before shipment, so that there will be no tuning problem.

We worked on the OEM design to make these units more durable. We left no stone unturned to try to give you the best product anyone knows how to make. We are proud to make a unit that looks different and probably outperforms the OEM unit. As with replacement parts for automobiles, often the aftermarket part is much better and less expensive than the OEM part.

All Branson transducer we can make for you.

But we have to declaratie in advance, this Branson CJ20 is made by RPS-SONIC, replacement transducer for Branson CJ 20, not original Branson CJ20. Please not mixed it with the original Branson.


1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.



1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation


Service and shipment

  • Warranty one year for transducer.
  • You can contact us for technical inquiry any time.
  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  • We supply customized products service for small quantity also.
  • Shipment by FED-EX /DHL/UPS/TNT
