20Khz Handheld Plastic Ultrasonic Plastic Welding Machine Auto Tracking

20Khz Handheld Plastic Ultrasonic Plastic Welding Machine Auto Tracking

20Khz Ultrasonic Plastic Welding Machine

Titanium Ultrasonic Plastic Welding Machine

Auto Tracking Ultrasonic Spot Welding

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Plastic Welding
Horn Material:
Horn Size:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
Supply Ability
Product Description

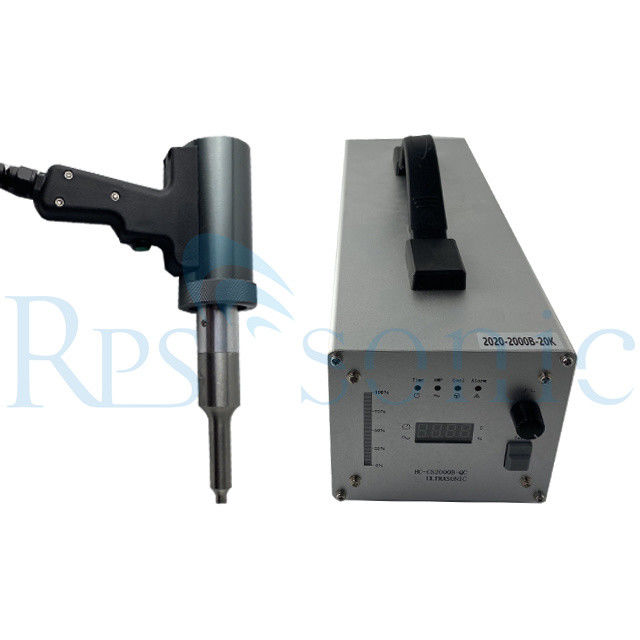

20Khz Handheld Plastic Ultrasonic spot Welding Device with digital generator




Frequency 20Khz
Frequency adjustment Auto-tracking type
Max. power output 1000w
Power output Infinitive adjustment
Power supply AC200V 50/60Hz
Outer dimension (mm) 120*120*380
Weight 8kg
Horn material Titanium

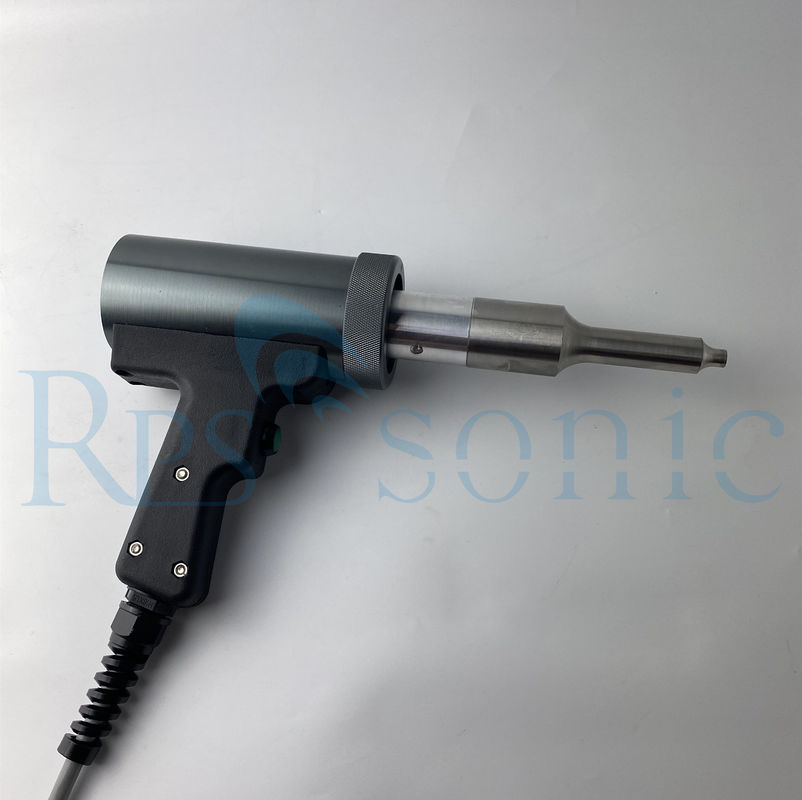

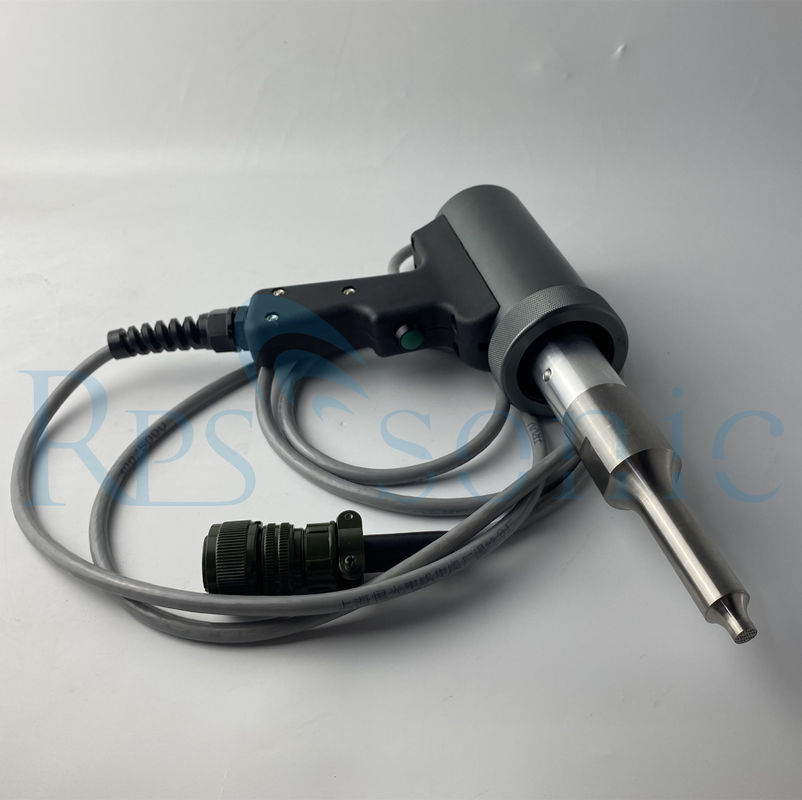

Pistol ultrasonic spot welding machine, also known as portable ultrasonic welding machine, handheld ultrasonic welding machine, handheld welding machine, portable welding machine, ultrasonic spot welding machine, riveting machine, ultrasonic spot welding machine, can be used for butt welding of thermoplastics , Can also replace the welding head according to customer needs, used for riveting, spot welding, embedding, cutting and other processing processes. Compared with other traditional processes (such as gluing, ironing or screw fastening, etc.), it has high production efficiency and welding Significant advantages such as good quality, environmental protection and energy saving.

The handheld ultrasonic welding machine can also be used for the welding, riveting, spot welding of thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts. It eliminates the backward process of pasting with chemical organic melting point agents, which has energy consumption. Low, high efficiency, no deformation, no pollution, firm welding, convenient operation, etc. The handle can also be made into a pistol style. Pressure is applied to the plastic part through the hand-held part, and the ultrasonic switch is pressed at the same time, then ultrasonic waves can be emitted for welding. Studies have shown that the use of handheld ultrasonic welding machines for welding in the plastics industry has become increasingly common all over the world. Since the application of this technology can replace the flux, adhesive, studs or other mechanical fixing methods required in the past production, the production efficiency is improved and the cost is reduced.
Plastic hardware, riveting, spot welding, folder positioning, etc.
It is small in size, convenient to work, and does not occupy space. Original Japanese transducer, automatic frequency tracking.
Underwear equipment, underwear machinery, ultrasonic, ultrasonic, hand welder;




1. Eliminate the pinhole phenomenon caused by traditional sewing.
2. Use vibration to rub or cut, no smoke, no peculiar burnt smell, eliminate the danger of high frequency, eager cutting machine and air pollution.
3. It can be processed after starting up, no preheating is required, easy to operate, continuous processing speed, high efficiency, and low labor cost.
4. Ultrasonic vibrator has super output, high efficiency, low welding head temperature and stable machine quality.
Most suitable for the welding of thermoplastic thin materials. Applicable materials: synthetic chemical woven fabrics, including chemical woven blended fabrics such as T/C6533 plain woven fabrics, knitted fabrics, nylon fabrics, Tedlon fabrics, non-woven fabrics, glitter fabrics, artificial leather, PU, sand Ding cloth, PS, PVC, PE+paper, TR and various films covered or laminated woven fabrics.




It is mainly used in two major areas: home appliances and automobile interior decoration. For the welding of large products, a professional ultrasonic welding machine is required.

Specifically include: automotive door panels, automotive sound insulation panels, automotive interior parts, automotive sound insulation cotton, TV shells, computer shells, electrical plastic trims, etc. Detailed process and materials: suitable for ABS, PP, PE, PC, PUC, Spot welding, pressure welding, riveting and chain welding of PMMA, PS, PPS, PBT, PETG and other plastics.


20Khz Handheld Plastic Ultrasonic Plastic Welding Machine Auto Tracking 0
