Ultrasonic Spray Coating for the Fabrication of Polymeric Organic Light-Emitting Diodes
What is the ultrasonic spray nozzle?
An ultrasonic spray nozzle is a device that atomizes liquids into fine droplets using ultrasonic vibrations. These nozzles are commonly used in various applications, including:
Coating: They provide uniform coating for surfaces in industries like automotive and electronics.
Pharmaceuticals: Used for drug delivery systems and creating fine mist for inhalers.
Agriculture: For precise pesticide application, minimizing chemical use and drift.
Cleaning: Effective in cleaning delicate parts with minimal liquid.

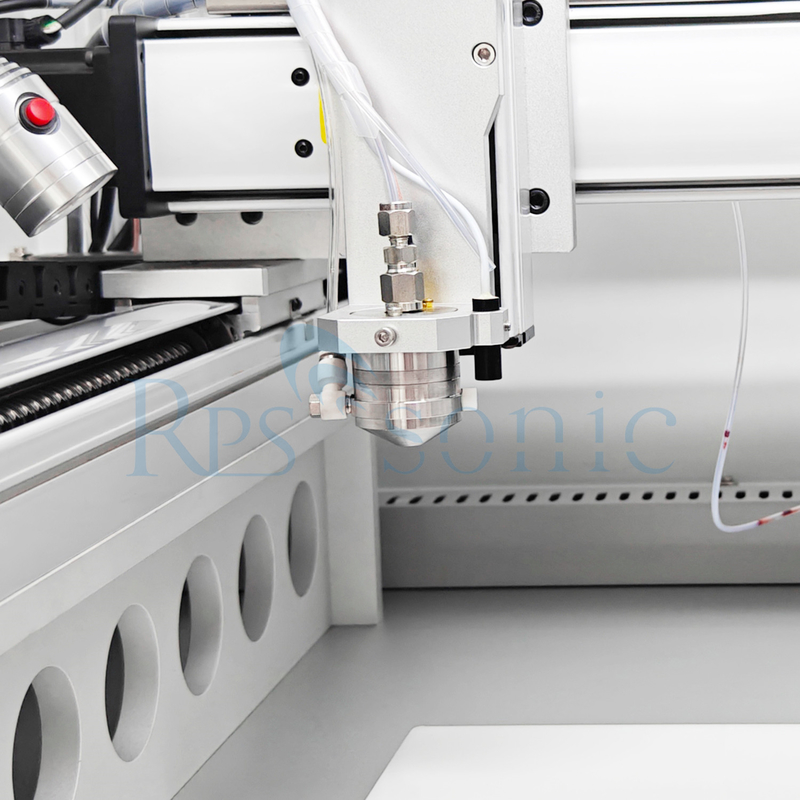

The horn or nozzle tip amplifies the ultrasonic vibrations and focuses them on the liquid. This amplification helps in generating higher velocities and pressures, leading to more efficient atomization. The liquid is supplied to the nozzle, and the ultrasonic vibrations cause it to break up into a fine mist or spray, which can be directed onto a target surface.
What is the parameter of the spray nozzle?
| Item | Wide type | Diffuse type | Bunching type | long nozzle | External fluid supply |
| Diameter of atomized particle | 15-40 | 15-41 | 15-42 | 15-20 | 15-20 |
| Spray width (um) | 40-120 | 40-80 | 2-20 | 1-3 | 0.5-2 |
| spray height (um) | 50-150 | 30-80 | 10-30 | 10-20 | 10-20 |
| Flow (ml/min) | 0.5-20 | 0.5-20 | 0.5-10 | 0.5-10 | 0.01-1 |
| Suitable viscossity (cps) | ＜30 | ＜30 | ＜30 | ＜15 | ＜15 |
| Particle size in liquid (um) | ＜20 | ＜15 | ＜10 | ＜8 | ＜8 |
| Diversion pressure (mpa) | ＜0.05 | ＜0.05 | ＜0.05 | / | / |
Do you have the spray nozzle pictures?
What is the Application of the spray nozzle?
Ultrasonic spray nozzles are widely used in various applications, including coating, painting, surface treatment, fuel injection, pharmaceuticals, and agriculture. They offer advantages such as precise control of droplet size, uniform spray distribution, reduced overspray, and improved coating quality. Additionally, they can be used with a wide range of liquids, including water-based solutions, solvents, suspensions, and viscous fluids.
Overall, ultrasonic spray nozzles are highly efficient and versatile devices used for atomizing liquids into a fine mist or spray for various industrial and scientific applications.
Ultrasonic coating technology is beneficial across various industries due to its precision and efficiency. Here are some key industries that leverage this technology:
1. Automotive
Applications: Coating, painting, and surface treatments for durability and aesthetics.
Benefits: Uniform application, reduced waste, and improved corrosion resistance.
2. Electronics
Applications: Coating of circuit boards, components, and connectors.
Benefits: Enhanced protection against moisture and contaminants, as well as improved conductivity.
3. Pharmaceuticals
Applications: Coating for drug delivery systems, inhalers, and medical devices.
Benefits: Precise dosing and uniform application for effective treatment.
4. Aerospace
Applications: Coating of aircraft components for protection and weight reduction.
Benefits: High-quality finishes and reduced drag, improving fuel efficiency.
5. Textiles
Applications: Water-repellent and stain-resistant treatments on fabrics.
Benefits: Enhanced durability and comfort, extending the life of products.
6. Food and Beverage
Applications: Coating of packaging materials and protective layers on food products.
Benefits: Improved shelf life and protection against contamination.
7. Energy
Applications: Coating of solar panels and wind turbine components.
Benefits: Enhanced efficiency and protection against environmental factors.
8. Cosmetics and Personal Care
Applications: Coating of cosmetic products and packaging.
Benefits: Improved application and enhanced product performance.
9. Manufacturing
Applications: Surface treatments and coatings for machinery and tools.
Benefits: Increased wear resistance and reduced maintenance costs.
Summary
These industries benefit from ultrasonic coating technology's precision, efficiency, and versatility, making it an essential tool for improving product quality and performance.
Can you provide examples of industries or applications where ultrasonic spray nozzles are commonly used?
Coating and Painting: Ultrasonic spray nozzles are commonly used in industries such as automotive, aerospace, and electronics for coating and painting applications. They provide precise control over droplet size and distribution, resulting in high-quality and uniform coatings. Examples include painting car bodies, applying protective coatings on electronic components, or coating medical devices.
Pharmaceutical and Biotechnology: Ultrasonic spray nozzles find application in the pharmaceutical and biotechnology industries for drug delivery, coating of pharmaceutical tablets, and creating thin films for medical devices. The fine mist produced by ultrasonic atomization enables accurate dosing and uniform coating of pharmaceutical products.
Electronics and Semiconductor: Ultrasonic spray nozzles are employed in electronics manufacturing for processes such as conformal coating, stencil cleaning, fluxing, and moisture barrier coating. They ensure precise and uniform deposition of coatings and cleaning agents on circuit boards, semiconductor wafers, and electronic components.
Food and Beverage: Ultrasonic spray nozzles are used in the food and beverage industry for applications such as flavoring, aroma enhancement, and coating food products. They can evenly distribute liquid additives or create a fine mist of oils, flavors, or coatings to enhance the sensory attributes of food items.
Agriculture: Ultrasonic spray nozzles are utilized in agriculture for precision spraying of pesticides, herbicides, and fertilizers. They offer better control over droplet size and distribution, reducing waste and optimizing the effectiveness of the sprayed substances. Ultrasonic sprayers can also be used for greenhouse propagation and plant tissue culture.
Fuel Injection: Ultrasonic spray nozzles are employed in fuel injection systems for internal combustion engines. They enable efficient atomization of fuel, resulting in improved combustion efficiency, reduced emissions, and better fuel economy.
Surface Treatment and Cleaning: Ultrasonic spray nozzles are used for surface treatment and cleaning applications, such as degreasing, coating removal, and precision cleaning in industries like automotive, aerospace, and manufacturing. The fine mist produced by ultrasonic atomization allows for thorough and controlled cleaning or treatment of surfaces.
Can you provide the working video of the spray nozzle?
