Non Destructive Ultrasonic Spot Welding In Automotive Industry

Non Destructive Ultrasonic Spot Welding In Automotive Industry
Non Destructive Ultrasonic Spot Welding In Automotive Industry Non Destructive Ultrasonic Spot Welding In Automotive Industry Non Destructive Ultrasonic Spot Welding In Automotive Industry

Large Image :  Non Destructive Ultrasonic Spot Welding In Automotive Industry

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-SW30
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Non Destructive Ultrasonic Spot Welding In Automotive Industry

Description
Frequency: 30khz Power: 1000W
Horn: 12mm Horn Material: Alumium Alloy Or Titanium Alloy
Generator: Digital Generator Weight: 5kg In Totall
High Light:

portable ultrasonic welder

,

ultrasonic welding equipment

handheld Non-destructive ultrasonic spot welding in the automotive industry



Parameter:



Item Parameter
Frequency 30Khz
Power 1000W
Ceramice chips 4chips
Connect screw M10

Introduction:

Compared with traditional processes (such as gluing, ironing or screw fastening), ultrasonic spot welding has significant advantages such as high production efficiency, good welding quality, environmental protection and energy saving. The handheld ultrasonic welding machine can also be used for welding and riveting of thermoplastic products, as well as inlaying and blanking processes between metal and plastic parts. It has completely replaced the process of pasting organic melting point, and has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, solid welding, and convenient operation.
Ultrasonic energy can be used not only for welding metals, rigid thermoplastics, but also for fabrics and films. The hand-held ultrasonic welding machine can replace different ultrasonic welding horns according to the size of the riveting point of the product to be welded and the welding requirements. It is fast and convenient, and the cost is much lower than that of a special automotive door plate ultrasonic welding machine, which meets customer needs. .



Advantage:
Small size, simple operation and fast cleaning; using module integrated circuit, strong power output;
Built-in fully automatic protection circuit, safe to use, stable and reliable work. The welding surface is firm, strong, beautiful and environmentally friendly.
According to the size of the riveting point of the product to be welded and the welding requirements, different ultrasonic welding horns can be replaced, which is fast and convenient.



Application:

Automobile plastic trims use a lot of sound-absorbing cotton. Different sources of automobile noise are used for the sources of automobile noise, such as doors, roofs, windows, undercarriages, rear trunks, and hoods. Installation of some soundproofing materials.

The automobile heat-insulating and muffler cotton welding machine adopts multiple sets (multi-points) of standard ultrasonic welding machines as the theme structure. The whole machine uses high-strength steel as the frame. Multiple welding horns are welded at the same time. The high-precision limit screw can be aligned. The height of the die is adjusted, the movement of the upper die support is controlled by the cylinder, and the PLC human-machine interface control, high accuracy, convenient debugging of the whole machine, stable performance, practical models can be adjusted at random, and can also cooperate with semi-automatic or fully automatic Production.

Specific fields of automotive insulation and sound insulation cotton:
Non-woven fabrics for automobile sound insulation, heat insulation, vibration damping, sealing, and interstitial pads
Non-woven fabrics for car trunks, coat racks, and contour covers
Non-woven fabrics for automobile door panels and rear shelf substrates
Car seat non-woven
Non-woven car air filter
Car ceiling, car floor leather, automotive interior carpet, reinforced molding, anti-stick mold non-woven fabric

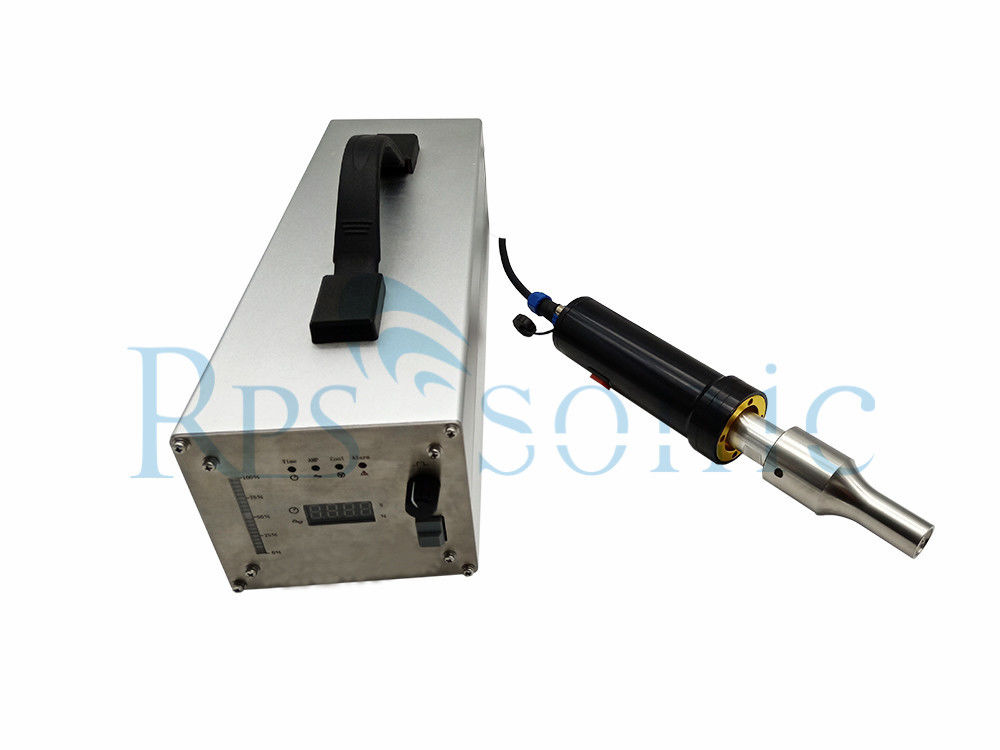

Non Destructive Ultrasonic Spot Welding In Automotive Industry 0

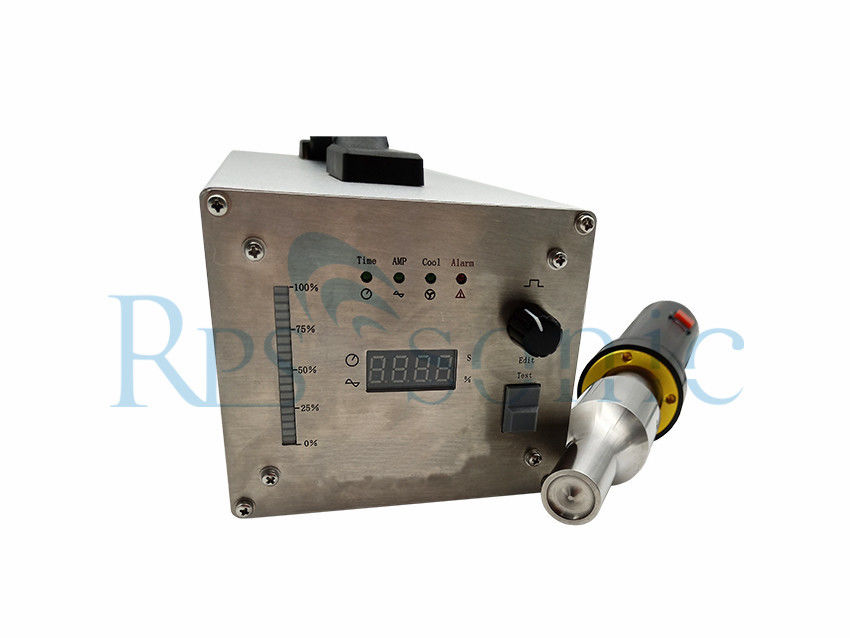

Non Destructive Ultrasonic Spot Welding In Automotive Industry 1
