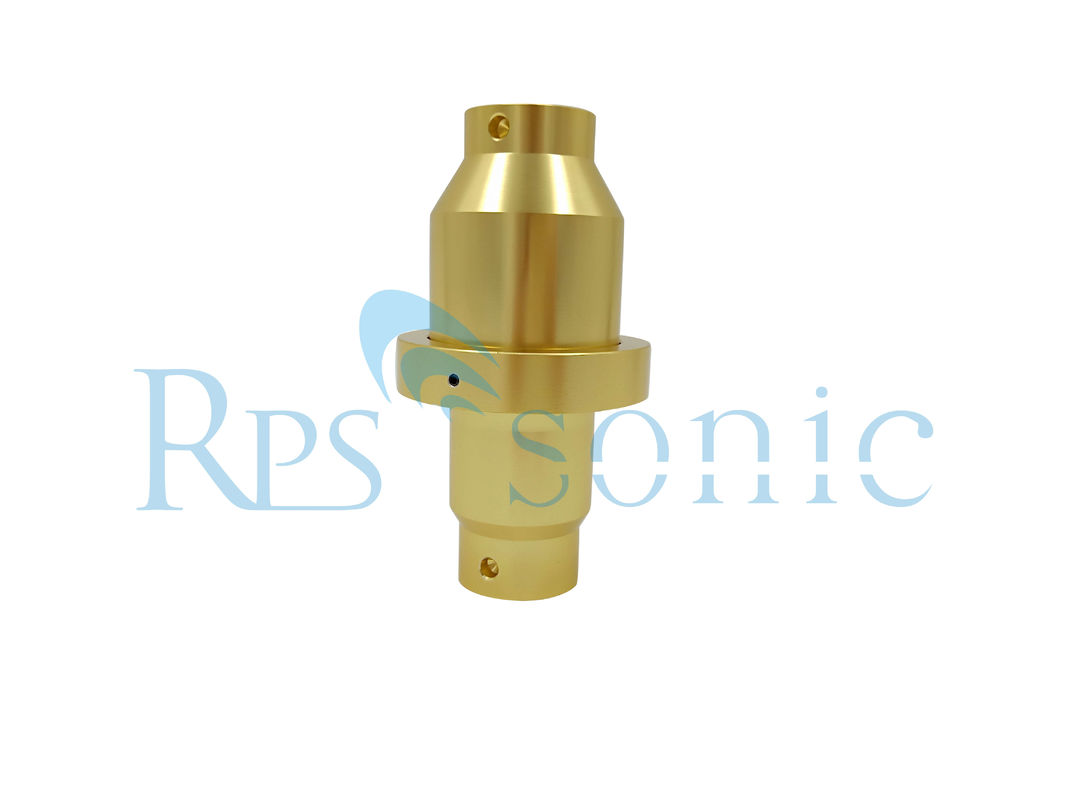

Portable Ultrasonic Welding Tool O Ring Designed High Precision

Portable Ultrasonic Welding Tool O Ring Designed High Precision
Portable Ultrasonic Welding Tool O Ring Designed High Precision Portable Ultrasonic Welding Tool O Ring Designed High Precision Portable Ultrasonic Welding Tool O Ring Designed High Precision

Large Image :  Portable Ultrasonic Welding Tool O Ring Designed High Precision

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-BB20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Portable Ultrasonic Welding Tool O Ring Designed High Precision

Description
Name: Ultrasonic Welding Booster Frequency: 20khz
Gain: 1:2 Material: Aluminum/titanium
Rplace For: Branson
High Light:

ultrasonic welding device

,

diy ultrasonic welder

aluminum O-ring designed ultrasonic welding booster 20khz Ultraschall boosters

Products Details



type Branson
frequency 20KHz
Model Depending on your requirements
power supply AC220v
Material Aluminum/titanium



What's ultrasonic booster?

The Ultrasonic booster is a one half-wavelength long resonant section made of aluminum or titanium. It is mounted between the Ultrasonic transducer and the Ultrasonic horn, and modifies the amplitude of vibration applied to the Ultrasonic horn.

The success of an ultrasonic plastics assembly application is dependent on the required force, time, and velocity factor to obtain the correct energy level. The ultrasonic velocity factor is obtained by using the correct ultrasonic horn and ultrasonic booster combination to provide the optimum amplitude for the type of plastic, size of part, and type of assembly to be per-formed. Since it may be technically impractical to design the correct amplitude into the ultrasonic horn because of its shape, ultrasonic boosters are used to either increase or decrease the amplitude at the ultrasonic horn face to transmit the required energy to the joint interface.

To enlarge the amplitude , the ultrasonic booster will have different diameters and mass on either side of its center or nodal point.

An amplitude increasing booster has a smaller mass at the end attached to the ultrasonic horn, while an amplitude decreasing ultrasonic booster has a greater mass at the end attached to the ultrasonic horn.

Choosing the Correct ultrasonic Booster: When selecting a ultrasonic booster to be used for an application, it is recommended to use the lowest gain ratio possible that will provide acceptable application results for correct amplitudes values. This will help to operate the ultrasonic horns at lower fatigue levels, which increases tooling reliability.

Ultrasonic horns are designed to be operated with a maximum ultrasonic booster limitation so they will not exceed unreliable fatigue stress levels. The maximum ultrasonic booster limits for special ultrasonic horns are etched directly on the ultrasonic horn along with the horn identification numbers.





The material of ultrasonic welding booster:

Depending on the Welding strength results are obtained from the welding of various material horns. The strength of the welds obtained by low carbon steel and titanium alloy horns is better, but the steel booster is much heavy than that of titanium alloy booster. The weight ratio of carbon steel is three times that of aluminum alloy and two times of titanium alloy. The weight of the horn is also a factor that must be considered in the welding process. Limited by the load-bearing capacity of the sensor and the overall weight of the welding machine in ultrasonic welding processing, the weight of the horn is relatively lighter and more appropriate. Furthermore, under the same weight limitation, if aluminum alloy and titanium alloy are used, it can Larger horns are manufactured, so aluminum and titanium alloy horns are usually used in the welding of large parts.

We supply high quality Ultrasonic Boosters in both aluminum O-ring design booster and our Solid mouth Titanium Ultrasonic booster
