20khz 2000w Ultrasonic Welding Transducer With Booster And Horn

20khz 2000w Ultrasonic Welding Transducer With Booster And Horn

20khz ultrasonic welding transducer

2000w ultrasonic welding transducer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Ultrasonic Welding,Mask Making,Earloop Welding
Digital Sensor, Switching Transducer, Analog Sensor
Product Name:
20khz 2000w Ultrasonic Welding Transducer With Booster And Horn
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union
Supply Ability
Product Description

20khz 2000w High Quality Ultrasonic Welding transducer with booster and horn

What is ultrasonic transducer

Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.

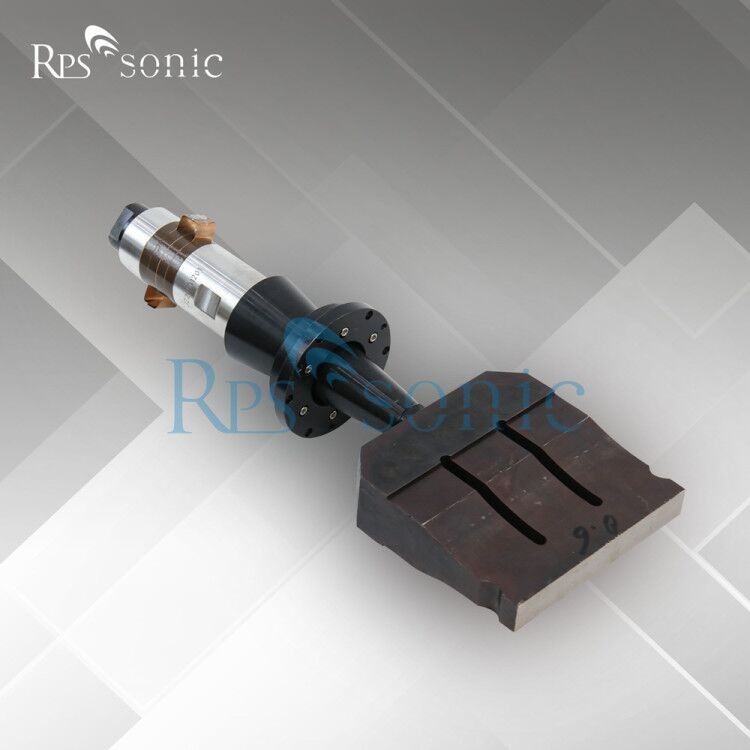

20khz 2000w Ultrasonic Welding Transducer With Booster And Horn 0


20Khz 50mm Ultrasonic Welding Transducer for Continue Work Fabric Sealing

Item Frequency Impedance Capacitance
5020-4Z 19.8 6 12000


1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.


Ultrasonic transducers offer several advantages in various applications. Here are some of the key advantages:

  1. Non-Destructive Testing: Ultrasonic transducers are commonly used in non-destructive testing (NDT) applications, such as flaw detection and thickness measurement. They can detect internal defects and material thickness without causing any damage to the object being tested.

  2. High Frequency Operation: Ultrasonic transducers operate at frequencies above the human audible range (typically above 20 kHz). This high-frequency operation enables them to provide detailed and precise measurements in various applications.

  3. Penetration and Resolution: Ultrasonic waves have the ability to penetrate through solid materials, including metals, plastics, and composites. This allows ultrasonic transducers to inspect the internal structure of objects and provide valuable information about material integrity and flaws. Additionally, ultrasonic transducers can provide high-resolution imaging, allowing for detailed analysis of the inspected material.

  4. Versatility: Ultrasonic transducers can be designed to operate in different modes, such as pulse-echo, through-transmission, and phased-array. This versatility makes them suitable for a wide range of applications, including medical imaging, industrial testing, and distance measurement.

  5. Real-Time Monitoring: Ultrasonic transducers can provide real-time monitoring capabilities, allowing for continuous inspection and measurement of materials or processes. This is particularly valuable in applications where immediate feedback or control is required, such as process monitoring in manufacturing.

  6. Non-Invasive Medical Imaging: In medical imaging, ultrasonic transducers are used in techniques like ultrasound imaging. Unlike X-rays or computed tomography (CT) scans, ultrasound imaging is non-invasive and does not involve ionizing radiation. It is widely used for prenatal imaging, abdominal imaging, and cardiovascular imaging due to its safety, real-time imaging capability, and portability.

  7. Cost-Effective: Ultrasonic transducers tend to be relatively cost-effective compared to other imaging or testing technologies, such as magnetic resonance imaging (MRI) or X-ray machines. This cost advantage makes them accessible in various industries and applications.

It's important to note that the specific advantages of ultrasonic transducers may vary depending on the application and the design of the transducer itself.



Service and shipment

l Warranty one year for transducer.

l You can contact us for technical inquiry any time.

l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

l We supply customized products service for small quantity also.

l Shipment by FED-EX /DHL

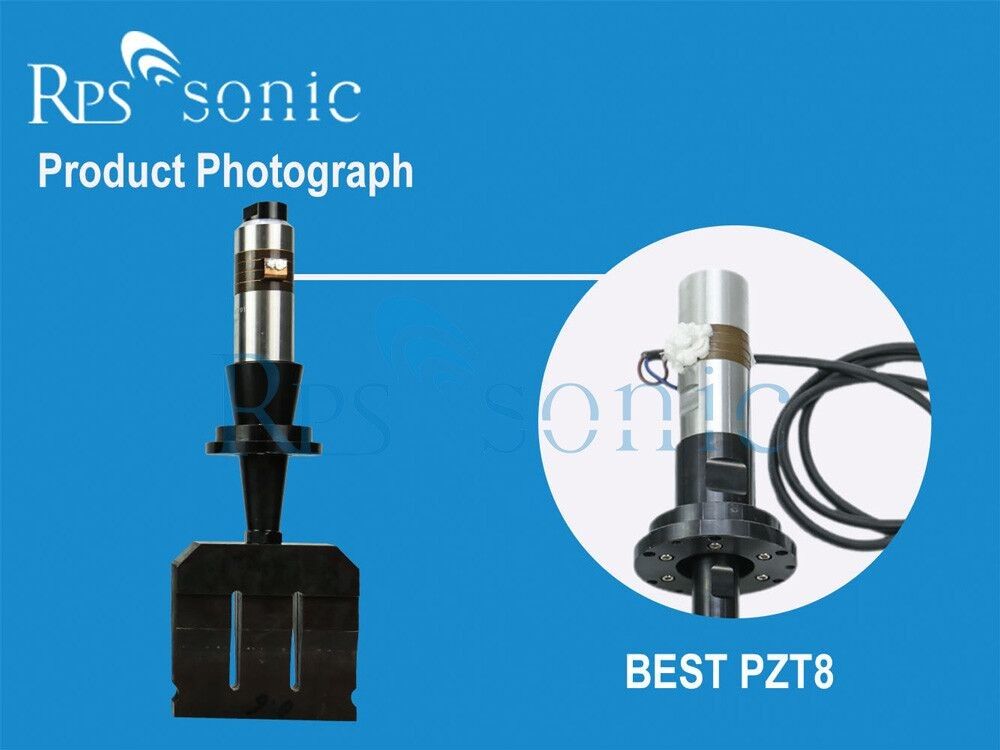

20khz 2000w Ultrasonic Welding Transducer With Booster And Horn 1

20khz 2000w Ultrasonic Welding Transducer With Booster And Horn 2

20khz 2000w Ultrasonic Welding Transducer With Booster And Horn 320khz 2000w Ultrasonic Welding Transducer With Booster And Horn 4
