Place of Origin:
China
Brand Name:
Rps-sonic
Certification:
CE
Model Number:
RPS-WM20
Contact Us

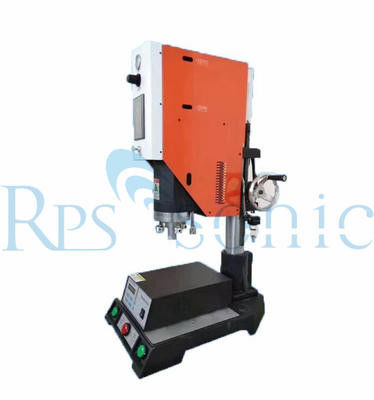

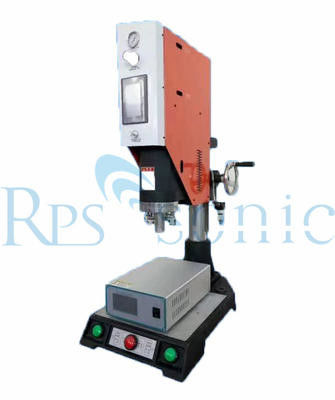

20Khz Ultrasonic Welding Machine with Touch Screen for Automobile Welding
Frequency | Power | Working distance | Input voltage | Air pressure | System language |
15Khz | 2500W/3000W/4000W | 75mm/100mm | 220V or 110v | 0.2-0.8Mpa | English/Chinese |
20Khz | 2000W/3000W | 75mm | 220V or 110v | 0.2-0.8Mpa | English/Chinese |
30Khz | 1000W | 75mm | 220V or 110v | 0.2-0.8Mpa | English/Chinese |
35Khz | 1000W | 75mm | 220V or 110v | 0.2-0.8Mpa | English/Chinese |
40Khz | 800W | 75mm | 220V or 110v | 0.2-0.8Mpa | English/Chinese |
Description
Ultrasonic plastic welding machine with modes of time model and energy model; it can automatically track and display real-time frequency, with amplitude stepping function, welding amplitude range up to 10-100 (1% accuracy). There is also amplitude compensation; welding quality management (time, energy mutual detection), including clear traceable welding records (operation statistics) to control your welding quality in real time. It also features transducer overload protection, mold impedance analysis and protection to protect your equipment. Powerful, high quality and high welding stability. It is your best choice for plastic welding.
B.Function
◆ Real-time frequency automatic tracking display;
◆ Welding mode: time, energy
◆Amplitude stepping function;
◆Welding amplitude 10-100 adjustable (1% accuracy)
◆Amplitude compensation
◆Mold impedance analysis + protection
◆Overload protection;
◆Quality management (time, energy mutual detection)
◆ welding record (operation statistics);
◆ powerful, high quality, high welding stability
What is an ultrasonic welder?
Ultrasonic welding (USW) is a solid-state welding process that produces a weld by local application of high-frequency vibratory energy while the work pieces are held together under pressure. 5. A sound metallurgical bond is produced without melting the base material.
How does ultrasonic welding machine work?
The vibrations, produced by a welding sonotrode or horn, as it is generally known, are used to soften or melt the thermoplastic material at the joint line. The components to be joined are held together under pressure and subjected to vibrations, usually at a frequency of 20 or 40 kHz.
Where is ultrasonic welding used?
Ultrasonic welding is used in almost all major industries like automotive, electronic and appliances, medical, packaging etc. A limitation of ultrasonic welding is that with current technology, large joints cannot be welded in a single operation. In addition, specifically designed joint details are required.
Service and shipment:
Warranty one year for transducer.
You can contact us for technical inquiry any time.
We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
We supply customized products service for small quantity also.
Shipment by FED-EX /DHL/UPS/TNT
