High Power PET Geocell Belt 2600w Ultrasonic Welding Tool

High Power PET Geocell Belt 2600w Ultrasonic Welding Tool

Geocell Belt Ultrasonic Welding Tool

PET Ultrasonic Welding Tool

2600w Ultrasonic Welding Tool

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Alumium Horn
Connect Screw:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union
Supply Ability
Product Description

High Power Ultrasonic Welding Accessories For PET Geocell Belt Welding


The ultrasonic welding machine can perform plastic welding, implantation, forming, riveting, spot welding, cutting, sewing and other operations. As long as the welding head is changed, one machine can be used for multiple applications.

Geogrid is a kind of main geosynthetics. Compared with other geosynthetics, geogrid has unique performance and efficacy. It is commonly used as reinforcement material of reinforced soil structure or composite material.

The application of ultrasonic welding technology in plastic industry has become more and more popular in the world. Because the application of this technology can replace the flux, adhesive and other mechanical fixation methods needed in the old production, it can improve the production efficiency and quality, reduce the cost and reduce the pollution to the environment.

The plastic geogrid is characterized in that the shape of the grid hole in the geogrid is triangular, and the geogrid is formed by extrusion. The joint of the geogrid hole is provided with a circular weight reducing hole. The material of the geogrid is polypropylene. The utility model is ingenious in design and simple in use. By changing the shape of the grid hole, the gravity stretching direction of the grid is changed. In the practical engineering application, the utility model can adapt to the needs of different environments, improve the bearing capacity of the subgrade, and extend the service life of the subgrade.

The rib is a kind of high molecular plastic with high tensile strength. The joint of longitudinal and transverse ribs is welded by high frequency ultrasonic wave, which ensures the stability of product quality and the effective locking of grid grid on soil. At the same time, the strength of the grid can change the tension of the rib and adjust the number of the rib to design different models and specifications. In order to meet the needs of different projects and various technical indicators.


Item Parameter
Frequency 15Khz
Power 2600W
Ceramice chips 4chips
Connect screw M16*1


Kindly check the AMPLITUDE REFERENCE GUIDE for ULTRASONIC WELDING (in Microns (um)) table in the next page, you will find suit frequency for your application.


The benefits of ultrasonic welding are that it is much faster than conventional adhesives or solvents. The drying time is very quick, and the pieces do not need to remain in a fixture for long periods of time waiting for the joint to dry or cure. The welding can easily be automated, making clean and precise joints; the site of the weld is very clean and rarely requires any touch-up work. The low thermal impact on the materials involved enables a greater number of materials to be welded together.


Equipment work environment requirement.
 Maximum allowable environment temperature: -20C° to 40C° Exceeding the operating temperature
may cause work error and fire.
 Maximum allowable air humidity: less than 70%. Excessive air humidity can condense water inside,
Short-circuit the internal electronic components of the power supply, causing the device to operate
 Maximum electromagnetic interference intensity: less than 120E. Larger than this standard can
seriously interfere with the normal operation of the device and damage the device. Ultrasonic power
supply itself is a large source of electromagnetic radiation. When there is a clear electromagnetic
interference and multiple devices are tightly installed, all communication lines and energy output
cables should be shielded and coaxial.


Service and shipment

  • Warranty one year for transducer.
  • You can contact us for technical inquiry any time.
  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  • We supply customized products service for small quantity also.
  • Shipment by FED-EX /DHL/UPS/TNT

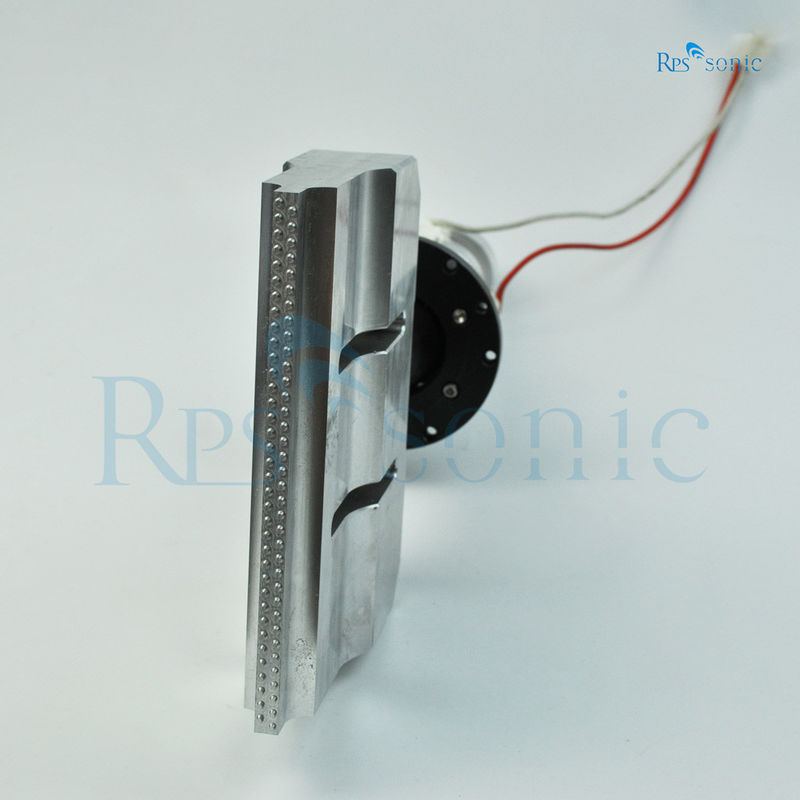

High Power PET Geocell Belt 2600w Ultrasonic Welding Tool 0

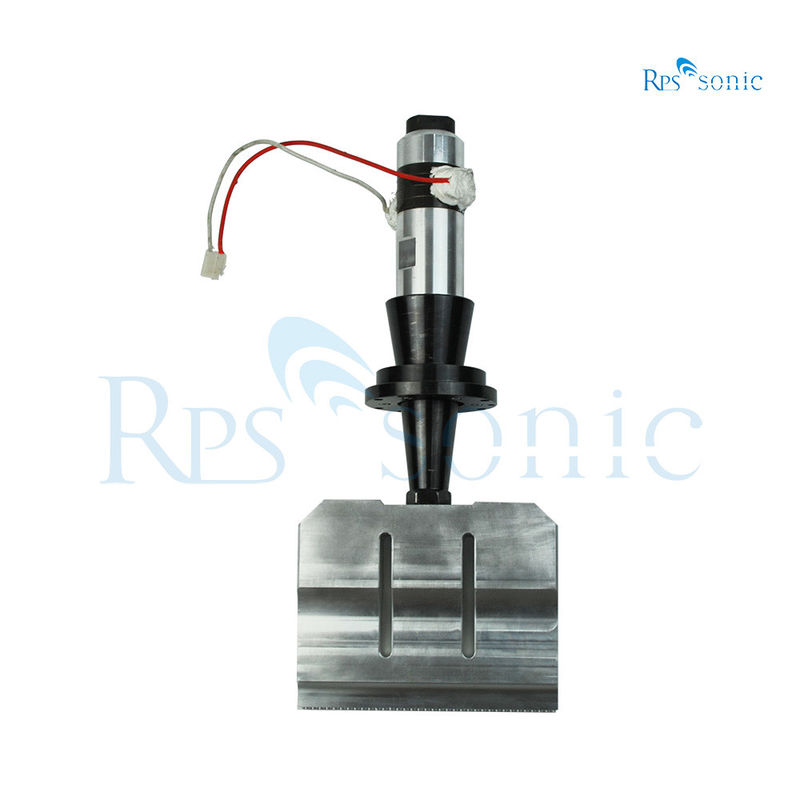

High Power PET Geocell Belt 2600w Ultrasonic Welding Tool 1
