35Khz 800w Digital Ultrasonic Sewing Machine For Protective Clothing

35Khz 800w Digital Ultrasonic Sewing Machine For Protective Clothing

Protective Clothing Ultrasonic Sewing Machine

35K Ultrasonic Sewing Machine

800w Ultrasonic Sewing Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
Supply Ability
Product Description

35Khz 800w Digital Ultrasonic sewing machine for Protective clothing sewing




Output power : 2000W
Power Input : 200V/50Hz
Output frequency : 35KHz
Working temperature : -10-28C
Working speed : 0-8m/min
Equipped pattern mould : 0-100 mm
Size of machine ( L * W * H ) :1300 * 600* 1260 mm
Weight of machine : 150 Kg




Ultrasonic sewing machines are widely used in the seamless clothing industry. The ultrasonic sewing machine is used for welding between two fabrics. This ultrasonic sewing machine has a popular sewing machine platform and can be operated skillfully without special training. It is just Run like an existing sewing machine. The ultrasonic sewing machine will cut the fabric with the sealing fabric. When the cutting and sealing operation is reopened, the connecting lines of the fabric board will be almost invisible, and the stitch will not be thicker than the fabric itself.




1. The use of ultrasonic stitching eliminates the need for needles and threads, saves the trouble of frequent needle and thread changes, does not have the disconnected joints of traditional stitching, and can also perform neat partial cutting and sealing of textiles. Stitching also plays a decorative role. It has strong adhesion, can achieve waterproof effect, clear embossing, more three-dimensional relief effect on the surface, fast working speed, good product effect and high-end beauty; quality is guaranteed.
2. Using Lijin ultrasonic and special steel wheel processing, the sealed edge will not crack, will not damage the edge of cloth, and there will be no burrs or curling.
3. No preheating is required during manufacturing, and continuous operation is possible.
4. It is easy to operate, not much different from the traditional sewing machine operation method, ordinary sewing workers can operate.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.


Applicable Products

Clothing lace, bed covers, pillow cases, car covers, tents, packing belts, backpacks, travel belts, hand belts, curtains, raincoats, windbreakers, snow coats, toys, gloves, tablecloths, chair covers, duvet covers, masks, hair Decorations, accessories, umbrellas, lampshades, etc.


Equipment function

1. Ultrasonic sewing machine uses ultrasonic vibration and steel wheels for garment making, after pressurizing, it can obtain the functions as described above.
2. No smoke or sparks during processing, no damage to the edge of the cloth, and burrs can also be avoided.
3. The Lijin flower wheel is easy to replace, and various round flower wheels can be replaced according to the needs of customers.
4. No preheating is required during manufacturing, and continuous operation is possible.
5. Color paper and gold foil paper can be added, and the function of printing and hot stamping can be achieved when pressurized.
6. Multiple units can be combined into a special machine to complete products with larger widths, such as quilts, umbrellas, etc. at one time.
7. The flower wheel is made of special alloy steel and has been subjected to special heat treatment process, which has the characteristics of wear resistance and long service life.
8. Ultrasonic suture machine has simple mechanical operation and easy maintenance. It uses 20KHZ low-noise ultrasonic to prevent noise interference.

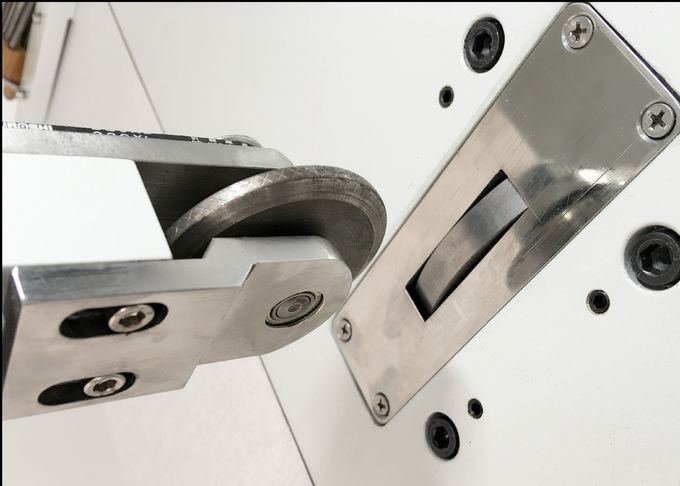

35Khz 800w Digital Ultrasonic Sewing Machine For Protective Clothing 0
