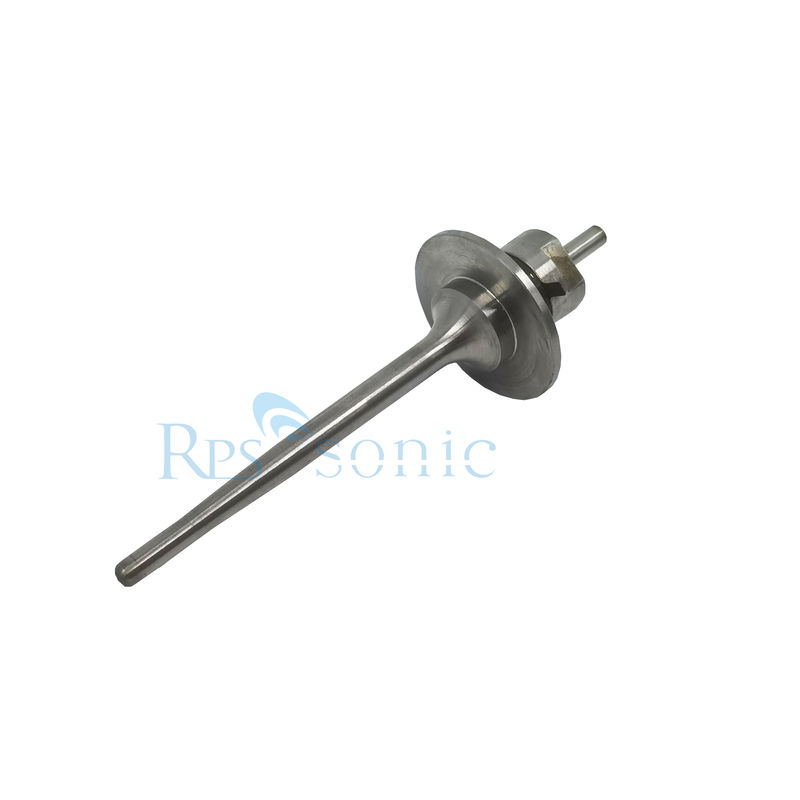

Long Mouth Type 100w Ultrasonic Atomizing Nozzle With Digital Generator

Long Mouth Type 100w Ultrasonic Atomizing Nozzle With Digital Generator

100w Ultrasonic Atomizing Nozzle

Digital Generator Ultrasonic Spray Nozzles

Digital Generator Ultrasonic Atomizing Nozzle

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-AT50

Contact Us

Request A Quote
Product Details
Frequency:
50Khz
Power:
10~100w
Flow Rate:
<20ml/min
Generator:
2000E/2000C
Solution Utilization:
98%
Voltage:
220V/50HZ
Product Name:
Long Mouth Type 100w Ultrasonic Atomizing Nozzle With Digital Generator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

50Khz 100w Long Mouth Type Ultrasonic Atomization Equipment For Syringe Spraying With Digital Generator

50khz 30w High Frequency Ultrasonic Spray Coating Equipment Easy To Use For Thin Film Spraying

50khz 30watt atomization equipment ultrasonic spray coating easy to use



Paramater



Item Parameter
Frequency 50Khz
Power 10~100w
FLOW RATE (ml/min) 0~20ml/min
Spray width 2~200mm
Solution utilization above 98%



We are committed to providing global customers with products and solutions based on ultrasonic and piezoelectric technology. The main products and services include ultrasonic spraying systems, ultrasonic spray nozzles, ultrasonic spray pyrolysis systems, piezoelectric ceramics, bubble detectors, megasonic cleaning, etc. Our solutions cover a variety of applications, such as implantable and interventional medical devices, nanomaterials, microelectronics and semiconductors, new energy, biomedicine, etc.



Description



Ultrasonic nozzle, also known as ultrasonic atomizing nozzle, is an ultrasonic atomizing device based on the principle of horn transducer. It atomizes the liquid through the amplified high-frequency ultrasonic oscillation, and sends the liquid mist to the object to be sprayed or a specific space through a certain amount of carrier gas. With its unique advantages, ultrasonic nozzles are widely used in the fields of nano- and sub-micron functional coating spraying, spray pyrolysis and spray drying. At the same time, ultrasonic spraying also has the advantages of uniform atomization particles, high precision, extremely low air pressure, 4 times the utilization rate of raw materials, and no clogging.

The penetrating ultrasonic nozzle is an extended ultrasonic atomizing nozzle. It adopts ultrasonic atomization nozzle technology. Through the design of the lengthened nozzle front end, the ultrasonic nozzle can be penetrated into the narrow space for spraying. It is mainly used for the application of spraying into the inner wall of the pipeline.

The more typical applications are vacuum blood collection tube spraying, syringe silicone oil spraying and so on. Oriental Jinrong provides a complete ultrasonic spraying solution for vacuum blood collection tube spraying. The penetration ultrasonic nozzle can achieve 5-10 heads in parallel for ultrasonic spraying at the same time, and the distance between the two nozzles is only 25mm, which can be used directly In the existing vacuum blood collection tube production line. With a dedicated precision metering pump, the anticoagulant is evenly sprayed into the inner wall of the vacuum blood collection tube, which can achieve a production speed of up to 12,000 tubes/hour.



Features



Independently researched and developed ultrasonic nozzles, which can penetrate into the inner wall of the tube for spraying, and are used for inner wall spraying such as vacuum blood collection tubes and syringes.

Coating uniformity: uniformity>95%

No need to add gas to spray, no splash

Saving raw materials: the utilization rate of raw materials is as high as 85%, which is 4 times that of traditional two-fluid spraying

0.001ml/min-50ml/min wide range flow spraying

The nozzle is not easy to be clogged



Application



Biomedical field: blood collection tube spraying, syringe spraying

Other areas: fine line spraying
