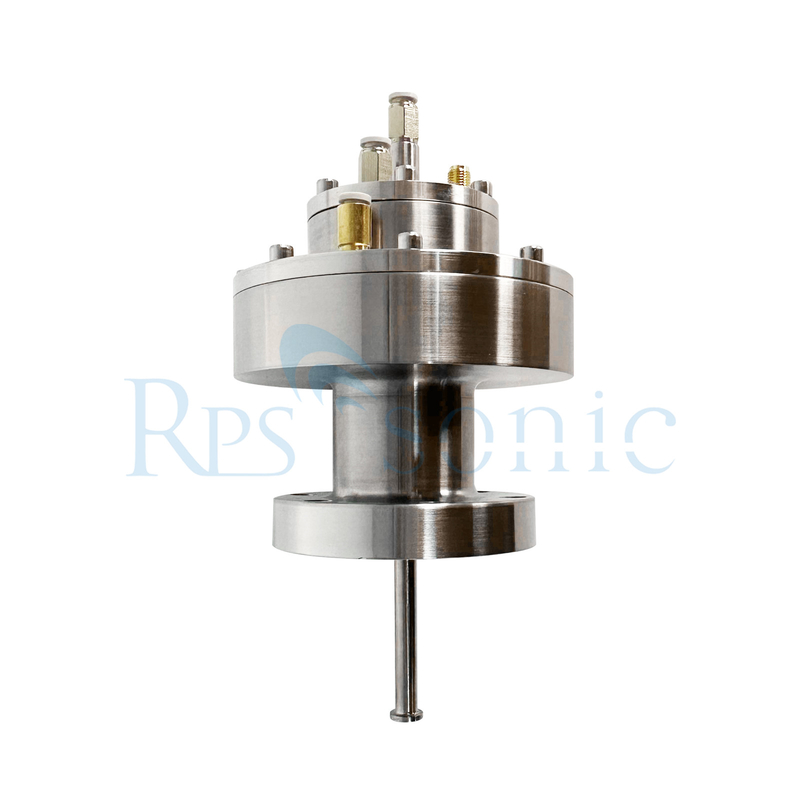

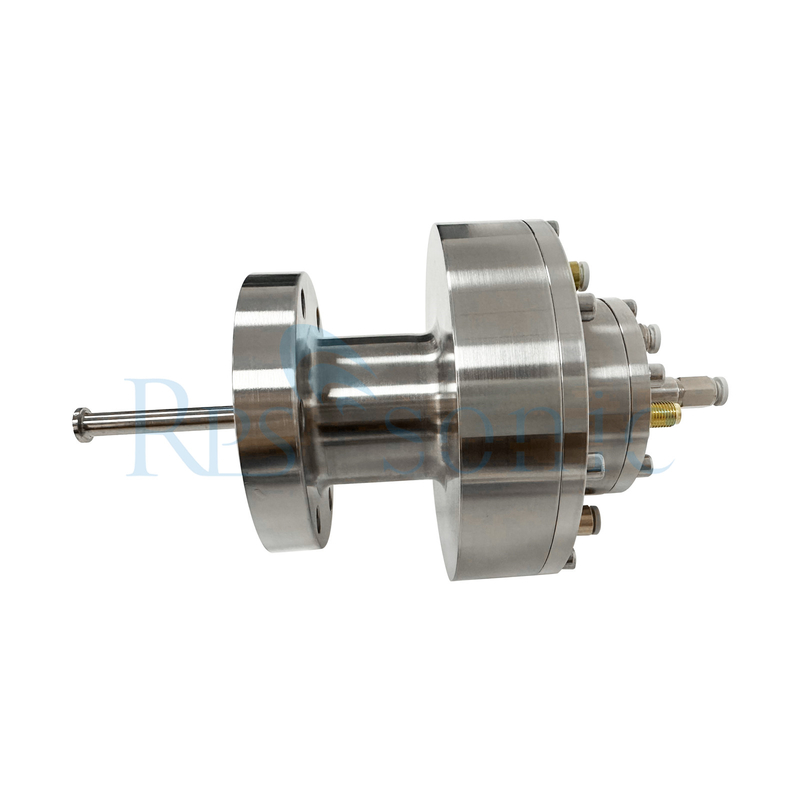

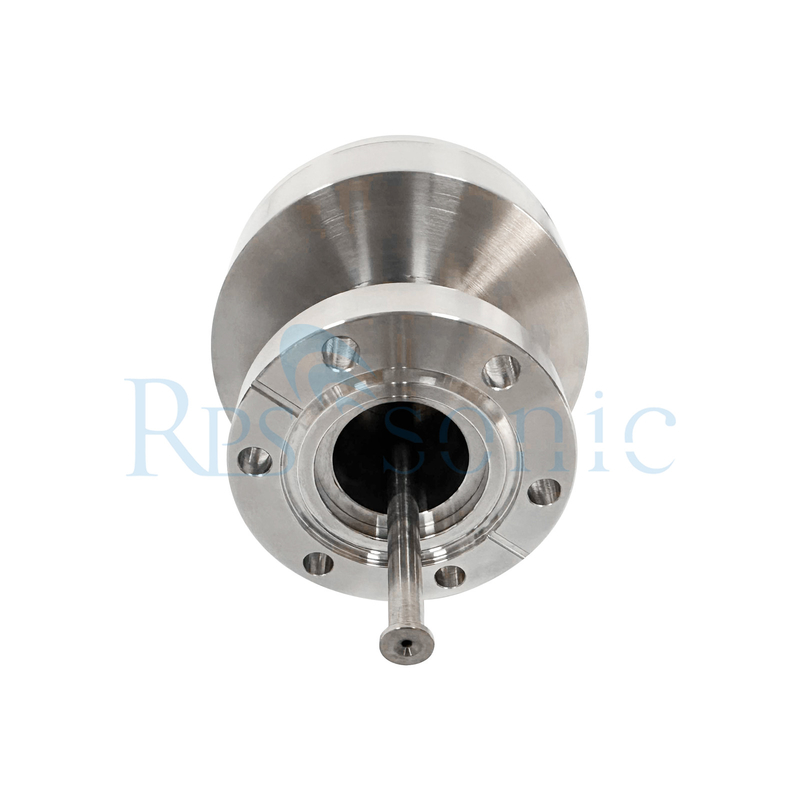

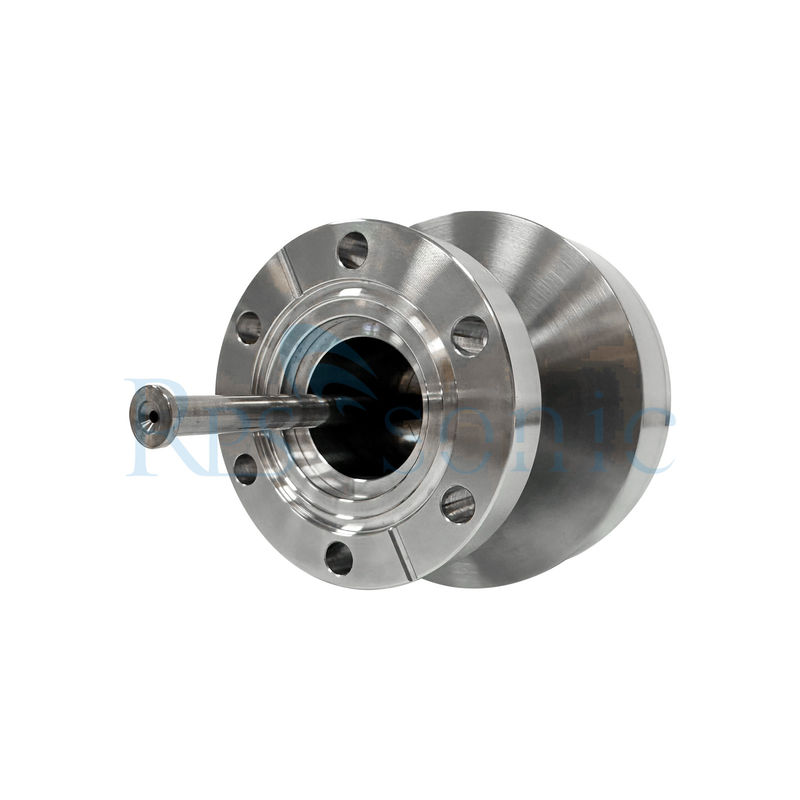

35khz ultrasonic Widemist Ultrasonic Atomizer Spray Nozzle for fuel Cell Manufacturing

35khz ultrasonic Widemist Ultrasonic Atomizer Spray Nozzle for fuel Cell Manufacturing

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Cutting Blade Material:
Titanium Alloy
Cutting Method:
Frequency Adjustment:
Auto-tracking Type
Generator Type:
Handle Length:
150 Mm
Usage Arrange:
Coating, Metal Liquid, Painting
Maxi Fabric Thickness:
Operate Type:
By Robot
Working Temperature:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Carton or wooden box
Delivery Time
Payment Terms
T/T, D/P, D/A
Supply Ability
10sets per week
Product Description

35khz ultrasonic Widemist Ultrasonic Atomizer Spray Nozzle for fuel Cell Manufacturing


What is the ultrasonic spray nozzle?

An ultrasonic spray nozzle is a device that uses ultrasonic vibrations to create a fine mist or spray of liquid. It consists of a piezoelectric transducer that converts electrical energy into mechanical vibrations. These vibrations are then transferred to a liquid, typically through a nozzle or atomizing plate, causing the liquid to break up into small droplets. Ultrasonic nozzles are a type of spray nozzle that use high frequency vibrations produced by piezoelectric transducers acting upon the nozzle tip that create capillary waves in a liquid film. Once the amplitude of the capillary waves reaches a critical height (due to the power level supplied by the generator), they become too tall to support themselves and tiny droplets fall off the tip of each wave resulting in atomization.The primary factors influencing the initial droplet size produced are frequency of vibration, surface tension, and viscosity of the liquid. Frequencies are commonly in the range of 20–180 kHz, beyond the range of human hearing, where the highest frequencies produce the smallest drop size.

35khz ultrasonic Widemist Ultrasonic Atomizer Spray Nozzle for fuel Cell Manufacturing 0

What is the Advtanges of ultrasonic spray nozzle?

Ultrasonic spray nozzles have several advantages over traditional spray nozzles. They can produce a more uniform spray pattern with smaller droplet sizes, which can be beneficial for applications such as coating, painting, humidification, and cooling. The smaller droplet sizes also enable better surface coverage and improved penetration into porous materials.

Additionally, ultrasonic spray nozzles are often more efficient in their use of liquid compared to conventional nozzles, as they require lower liquid flow rates to achieve the desired spray coverage. This can result in cost savings and reduced waste.

Overall, ultrasonic spray nozzles offer precise and efficient spray control, making them suitable for various industrial, medical, and research applications.

What is the Application of ultrasonic spray nozzle?

Ultrasonic spray nozzles have a wide range of applications across various industries. Some common applications include:

Coating and painting: Ultrasonic spray nozzles are used for precise and uniform coating of surfaces. They can be employed in industries such as automotive, electronics, and aerospace for applying protective coatings, paints, adhesives, and lubricants.

Semiconductor manufacturing: Ultrasonic spray nozzles are utilized in semiconductor manufacturing processes for the precise deposition of photoresist, dielectric coatings, and other thin films. They offer better control and coverage compared to traditional spin coating methods.

Pharmaceutical and medical applications: Ultrasonic spray nozzles are used in pharmaceutical and medical industries for drug delivery systems, coating of medical devices, and creating inhalable or transdermal formulations. They can produce fine droplets for targeted and controlled drug administration.

Food and beverage industry: Ultrasonic spray nozzles find application in the food and beverage industry for flavoring, coating, and preserving food products. They can be used for spraying oils, flavors, and coatings onto bakery items, confectionery, and meats.

Agriculture: Ultrasonic spray nozzles are employed in precision agriculture for pesticide and fertilizer application. They can deliver precise amounts of agrochemicals onto crops, reducing waste and improving efficiency.

Printers and 3D printing: Ultrasonic spray nozzles can be used in inkjet printers for high-resolution printing and precise droplet placement. They are also utilized in 3D printing for the deposition of materials and coatings.

Fuel cells: Ultrasonic spray nozzles are used in the fabrication of fuel cells for the precise deposition of catalyst layers and electrolytes, improving the performance and efficiency of fuel cell systems.

Nanotechnology and research: Ultrasonic spray nozzles are employed in research laboratories for various applications, including nanoparticle synthesis, surface modifications, and thin film deposition.

35khz ultrasonic Widemist Ultrasonic Atomizer Spray Nozzle for fuel Cell Manufacturing 1

What is the parameter of the spray nozzle?

Item Wide type Diffuse type Bunching type long nozzle External fluid supply
Diameter of atomized particle 15-40 15-41 15-42 15-20 15-20
Spray width (um) 40-120 40-80 2-20 1-3 0.5-2
spray height (um) 50-150 30-80 10-30 10-20 10-20
Flow (ml/min) 0.5-20 0.5-20 0.5-10 0.5-10 0.01-1
Suitable viscossity (cps) <30 <30 <30 <15 <15
Particle size in liquid (um) <20 <15 <10 <8 <8
Diversion pressure (mpa) <0.05 <0.05 <0.05 / /

How Ultrasonics Spray Nozzles Work?

Ultrasonic spray nozzles are constructed to vibrate longitudinally at high frequency by means of piezoelectric transducers. This longitudinal up and down motion creates standing waves in a thin film of applied liquid on the ultrasonic nozzle tip, in which the amplitude of these waves can be controlled by the power generator. These standing liquid waves can be extended upwards off the ultrasonic nozzle tip to the point they separate into evenly sized droplets with little to no kinetic energy (see video). Secondary shaping gas or ambient air can be used to easily entrain droplets to the desired shape and velocity if needed. A variety of ultrasonic nozzles are offered that help determine droplet size, liquid flow rate and spray patterns.

Video for reference:
