Ultrasonic Spray Coating System | Precision Ultrasonic Atomizing Spraying Equipment for PTFE, Adhesive, Nano Coating

 Ultrasonic Spray Coating System |

Precision Ultrasonic Atomizing Spraying Equipment for PTFE, Adhesive, Nano Coating

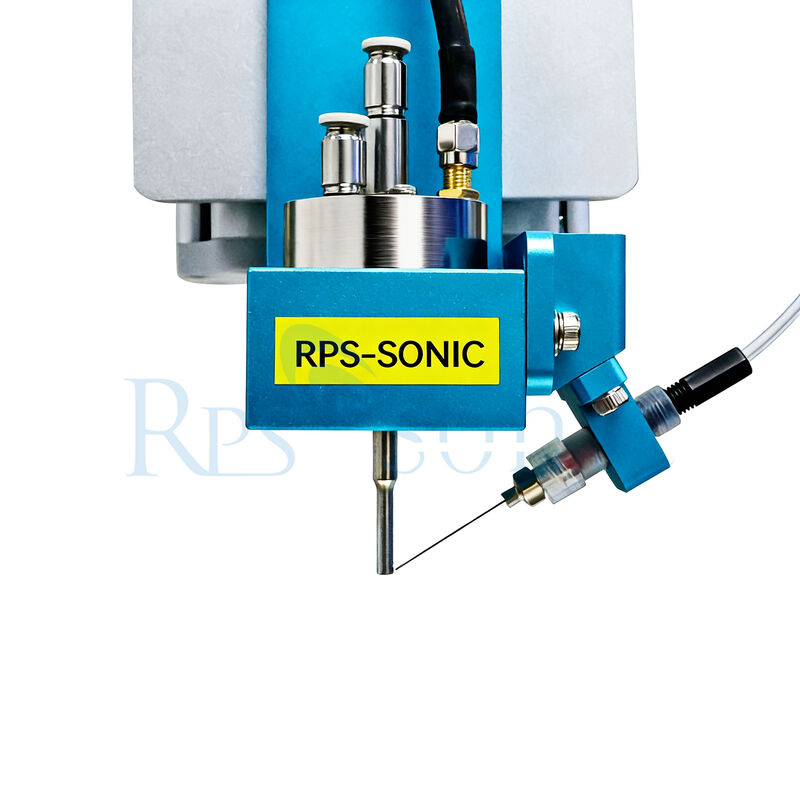

What is the ultrasonic spray nozzle?
An ultrasonic spray nozzle is a device that uses high-frequency vibrations to atomize a liquid into a fine mist or spray. It is designed to generate ultrasonic waves, typically in the range of 20 kHz to 120 kHz, which are transmitted to the liquid being sprayed. These ultrasonic waves create high-velocity pressure waves in the liquid, causing it to break up into tiny droplets.
The ultrasonic spray nozzle consists of several key components. It typically includes a transducer, which is responsible for generating the ultrasonic waves. The transducer is usually made of piezoelectric materials that convert electrical energy into mechanical vibrations. The vibrations are then transferred to a horn or a nozzle tip.
The horn or nozzle tip amplifies the ultrasonic vibrations and focuses them on the liquid. This amplification helps in generating higher velocities and pressures, leading to more efficient atomization. The liquid is supplied to the nozzle, and the ultrasonic vibrations cause it to break up into a fine mist or spray, which can be directed onto a target surface.

What is the parameter of the spray nozzle?

Do you have the spray nozzle pictures?

What is the Application of the Ultrasonic Atomizing Spraying Equipment for PTFE, Adhesive, Nano Coating
Ultrasonic atomizing spraying generates uniform micro-droplets via high-frequency vibration, featuring soft deposition, ultra-high material utilization, adjustable coating thickness (nanometer to tens of micrometers), anti-clogging nozzles and excellent uniformity. It is the preferred precision coating solution for PTFE dispersion, adhesives and all types of nano functional coatings.

1. Applications for PTFE (Teflon) Coating

PTFE coating delivers low friction, anti-stick, corrosion-resistant, hydrophobic and biocompatible surfaces.

Medical Devices
Ultrasonic spray uniform thin PTFE lubricating film on cardiovascular guidewires, hypotubes, catheters, surgical instruments, stents; reduces friction inside blood vessels and avoids vascular injury. It supports low-flow precision spraying for slender complex parts.
New Energy Industry
Hydrophobic PTFE coating on fuel cell gas diffusion layers (GDL / carbon paper); evenly distributes PTFE binder inside porous substrates to optimize water management of MEA membrane electrodes.
Industrial Precision Components
Anti-stick & anti-corrosion PTFE coating on stainless steel pipes, moulds, valve parts, food processing machinery; avoids sagging and uneven coating caused by traditional high-pressure spray.
Electronics & Semiconductor
PTFE insulating coating for small electronic components, anti-contamination coating for test fixtures.

2. Applications for Adhesive Spraying

Suitable for low-to-medium viscosity adhesives, primer, tackifier, conductive glue and protective bonding liquid.

Consumer Electronics Assembly
Precise thin-layer adhesive spraying on earphone components, camera modules, flexible circuits; prevents excess glue overflow and short circuit.
Medical Disposables
Primer adhesive spraying for medical films, tube assemblies, filter membrane composite bonding.
New Energy Components
Adhesive spraying for battery insulation films, composite sealing layers of hydrogen energy parts.
Composite Materials & Textiles
Uniform primer spraying on fabric, non-woven fabric, carbon fiber base materials for laminating.

Advantage: Low impact soft spray, no displacement of tiny workpieces; adjustable spray width for line or area bonding.

3. Applications for Nano Functional Coating

Perfect for nano-suspension, sol-gel, nanoparticle dispersion; capable of forming continuous ultra-thin nano-film.

Optical & Glass Industry
Nano anti-reflection coating, self-cleaning coating, hydrophobic/oleophobic anti-fingerprint coating, anti-fog coating on glass, lenses, display panels.
New Energy & Photovoltaics
Perovskite solar cell layer, conductive nano coating, anti-corrosion nano coating for photovoltaic glass; catalyst layer spraying for fuel cells.
Electronics & Sensors
Nano conductive coating, thermal conductive thin film, humidity-sensitive & gas-sensitive coating for micro sensors.
Functional Textiles & Filters
Nano antibacterial coating, waterproof breathable coating, nano filtration membrane surface modification.
Aerospace & Precision Manufacturing
Nano anti-corrosion, wear-resistant thermal barrier thin film on lightweight alloy parts.

4. Cross-industry General Application Scenarios

Medical manufacturing: Composite coating (PTFE lubricating layer + nano coating) on interventional devices
Automotive electronics: Three-proof nano coating, precision component adhesive coating
Lab & R&D: Small-batch sample preparation of various thin-film coatings
Food machinery: PTFE non-stick coating on conveyor parts and moulds

Can you provide examples of industries or applications where ultrasonic spray nozzles are commonly used?

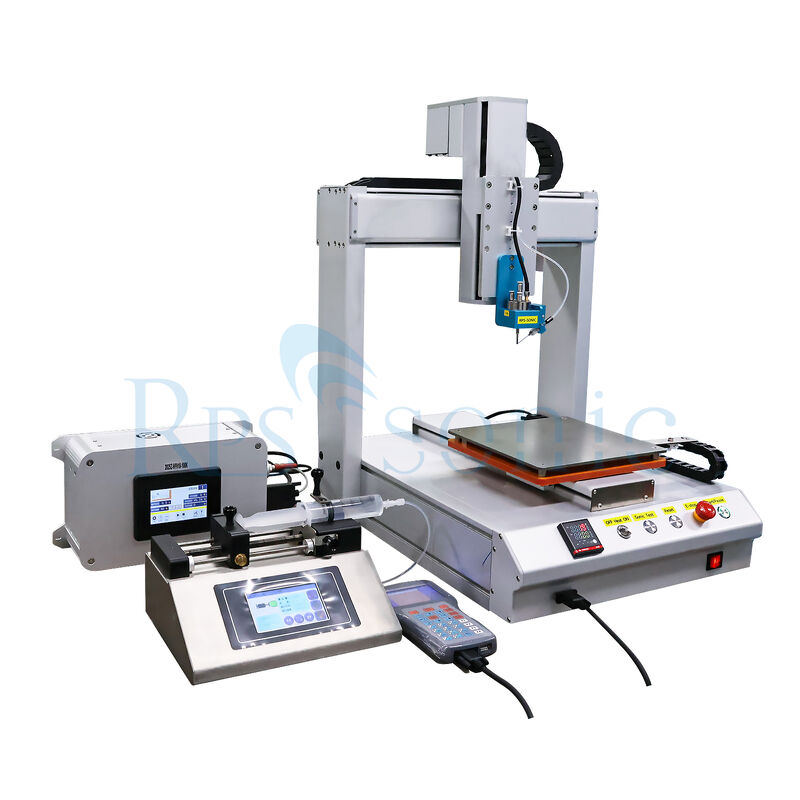

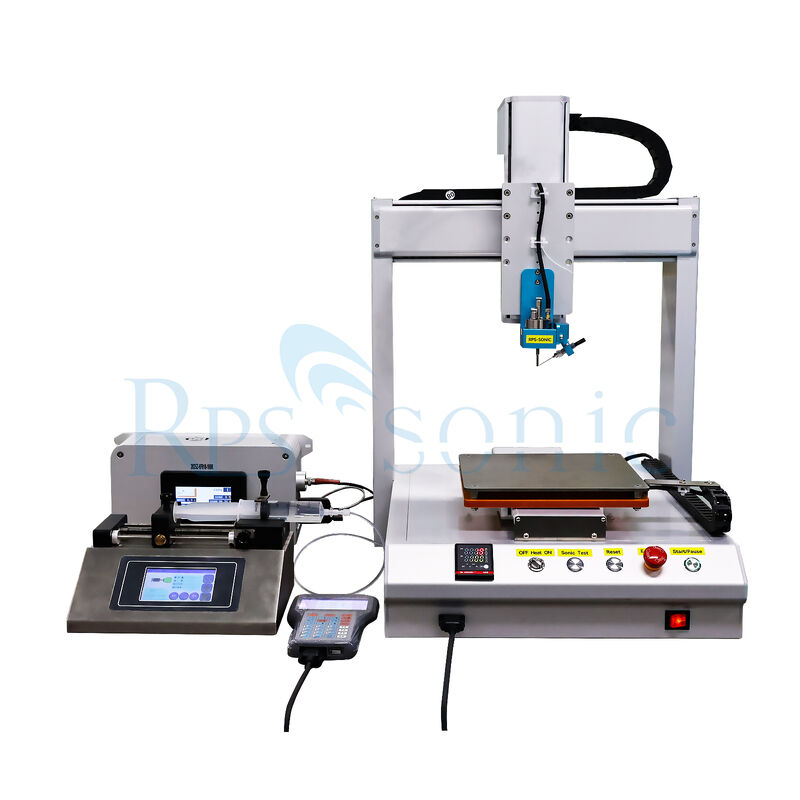

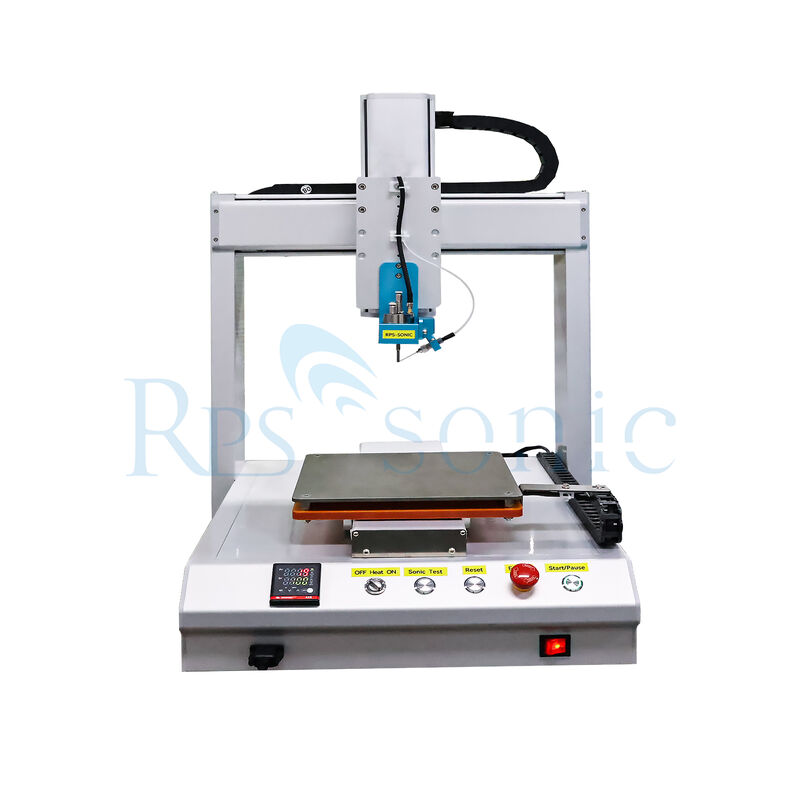

Ultrasonic spraying system
The ultrasonic spraying equipment has self-cleaning, which can avoid pollution of the inner wall of the blood collection tube during the spraying process, and can also avoid the contamination of its own nozzle, and can be sprayed and used in cycles. The ultrasonic spraying system can program the number, distance, thickness and other parameters of spraying, so as to ensure the accuracy of the spraying effect. Ultrasonic spraying equipment can save raw materials, and the utilization rate of raw materials is as high as 85%. Industrial ultrasonic atomizers can be easily retrofitted into existing production lines for efficient spraying with consistent quality output.

As an industrially proven technology, ultrasonic spraying has been successfully applied to high-performance thin film coating lines in the manufacturing of precision electronics such as semiconductors, precision devices, nanotechnology applications, fuel cells and solar cells. During ultrasonic spraying, the size and distribution of droplets can be precisely controlled, resulting in particles with a high surface area.

Can you provide the working video of the spray nozzle?
