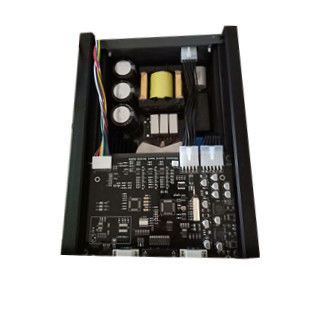

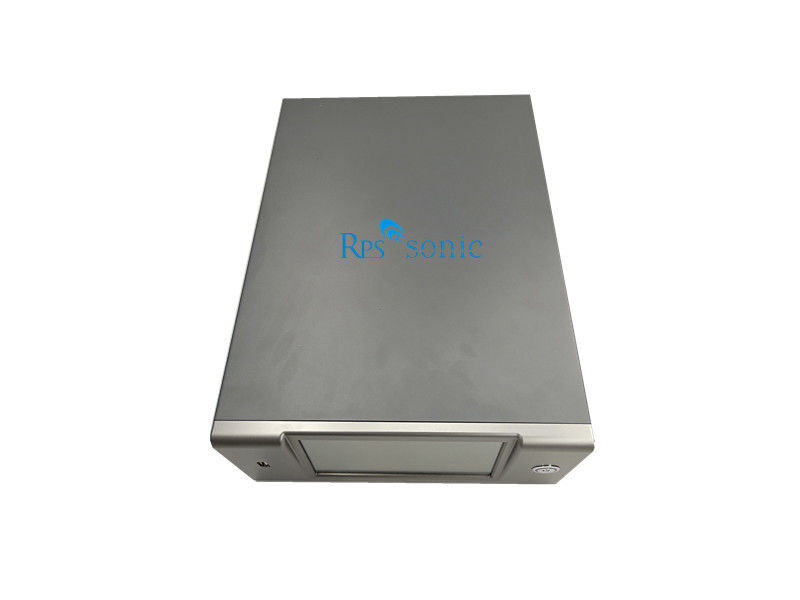

Automatic Digital Ultrasonic Power Generator Touch Screen Operate

Automatic Digital Ultrasonic Power Generator Touch Screen Operate
Automatic Digital Ultrasonic Power Generator Touch Screen Operate Automatic Digital Ultrasonic Power Generator Touch Screen Operate Automatic Digital Ultrasonic Power Generator Touch Screen Operate

Large Image :  Automatic Digital Ultrasonic Power Generator Touch Screen Operate

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-DG6000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Automatic Digital Ultrasonic Power Generator Touch Screen Operate

Description
Frequency: 15Khz~70khz Power: 6000W In Max
Excitement: Separate Excitation Generator: Digital Generator
Operate: Touch Screen Frequency Range: +-500hz
High Light:

high power ultrasonic generator

,

ultrasonic wave generator

20khz high power ultrasonic power supply for ultrasonic welding machine



Parameter:



Item Parameter
Power 6000W In max
Frequency range ±500hz
Operating temperature ≤50℃
Frequency 20Khz
Counting capacity 30000 item
Amplitude adjust 10%~100%
Voltage 110V/220V
Circuit Digital,separate excitation

Ultrasonic power supply is the key point for the whole ultrasonic system. Actually, the value of ultrasonic power supplies accounts for 80% of ultrasonic welding systems. Why power is so important in ultrasonic welding systems. The quality of the ultrasonic power supply directly determines the operating stability, welding speed and welding effect of the entire welding system, so the ultrasonic power supply is very important.

Ultrasonic generator, usually called ultrasonic power supply. Its function is to convert our mains (220V 110V or 380V, 50 or 60Hz) into a high frequency AC signal that matches the ultrasonic transducer. From the form of the amplifying circuit, a linear amplifying circuit and a switching power supply circuit can be used, and the high-power ultrasonic power source generally adopts a circuit form of a switching power supply in terms of conversion efficiency. Linear power supplies also have their own application range, which has the advantage that the circuit can be not strictly required.

Matching allows the operating frequency to change continuously and continuously. From the current situation in the ultrasound industry, ultrasonic generators are mainly divided into self-excited and separate excited power supply.

The principle of the ultrasonic generator is to first generate a signal of a specific frequency by a signal generator, which may be a sinusoidal signal or a pulse signal. This specific frequency is the frequency of the transducer, and is generally applied to ultrasonic in an ultrasonic device. The frequency is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz,70khz, 100KHz.





Advantage :

  • Trigger by Power patented feature provides the ability to accurately start the weld process once a programmed force is achieved. Combined with Weld by Energy, this unit delivers the highest level of process repeatability of any probe system available today.
  • Time, energy ,depth , Multiple combined welding weld modes.
  • Amplitude adjustment in 1% increments from 90% to 10%.
  • Eight programmable setups.
  • Power bar graph with last cycle memory.
  • High-resolution multicolor LCD with a multilingual menu for quick, easy programming.
  • Real time in cycle menu displays frequency, power, and time.
  • 100% digital controls of all power supply functions and parameters.
  • Digi-Trac tuning automatically tracks the resonant frequency digitally. It adjusts the output frequency to match the acoustic stack. This is done for every weld cycle and eliminates the need to manually tune the generator.
  • Ultrasonic overload protection, with fault indication for ease of troubleshooting. The overload power limit is based on true RMS power output level.
  • Patented pulse-width modulation design delivers power more efficiently with substantially less stress on electrical components for superior performance, reliability, and extended life

Why RPS-SONIC Generator:



1. Each power will be tested by Specify transducer .

2. All generator with one year warranty.

3. Specialized in high power ultrasonic for more than ten years

4. Every generator with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation
