Switchable Ultrasonic Spot Welder Plastic Riveting Ultrasonic Hand Welder

Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder
Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder

Large Image :  Switchable Ultrasonic Spot Welder Plastic Riveting Ultrasonic Hand Welder

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-SW35
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Switchable Ultrasonic Spot Welder Plastic Riveting Ultrasonic Hand Welder

Description
Frequency: 35khz Power: 800W
Horn: 8mm Horn Material: Alumium Alloy Or Titanium Alloy
Generator: Digital Generator Weight: 5kg In Totall
High Light:

portable ultrasonic welder

,

ultrasonic welding equipment

35Khz switchable ultrasonic spot welder portable for ultrasonic plastic riveting



Introduction:



Parameter:

Item Parameter Advantage: Application

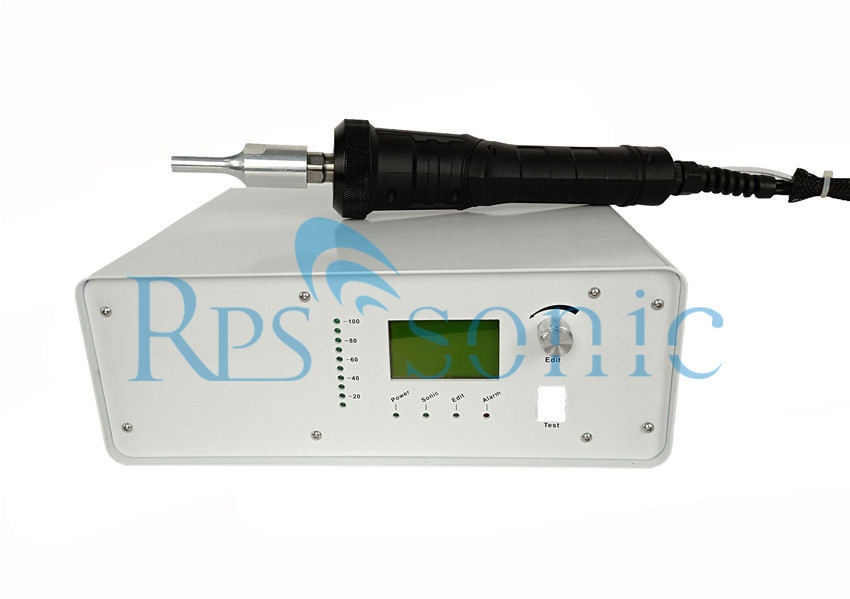

28Khz ultrasonic hand welder

Straight type

▪ 28Khz 800W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate.

2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it’d using life.

3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate.

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.

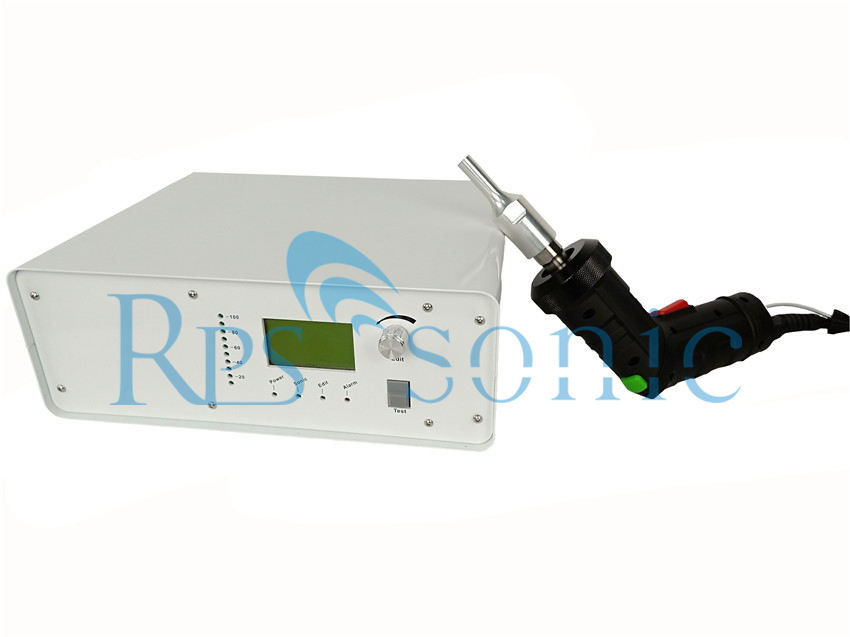

28Khz ultrasonic hand welder

Gun type

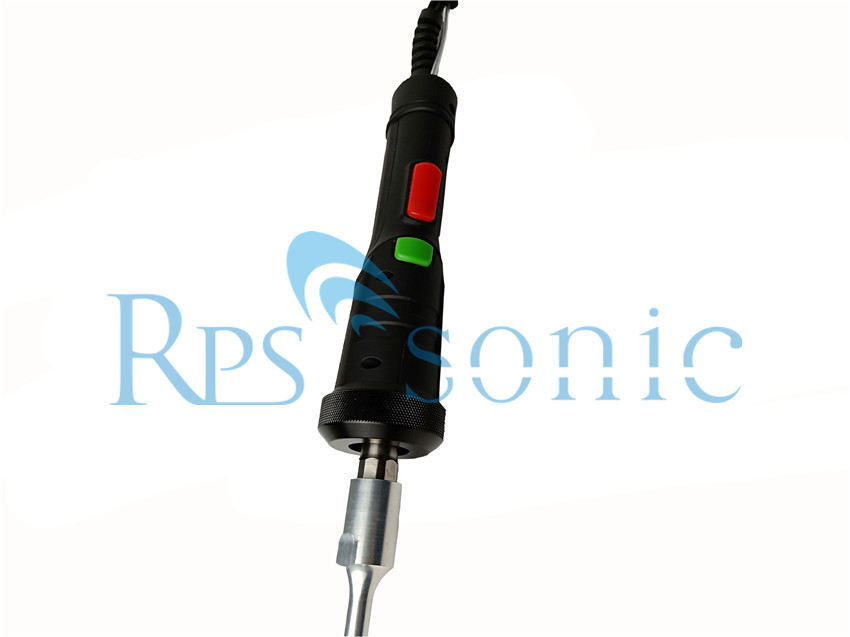

35Khz ultrasonic hand welder

Straight type

▪ 35Khz 500W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.



35Khz ultrasonic hand welder

Gun type

For better application , it is better share all the material information with me, the material, thickness, operate way, speed requirements before order .

We also supply 20Khz 40Khz ultrasonic hand-weld welder.



Ultrasonic plastic riveting technology is a simple, low-cost, efficient and simple permanent fixed assembly technology, which can rivet and assemble plastic parts with metal parts or other components that are not weldable materials. The riveted surface is beautiful and smooth, and it is not easy to crack and embrittle. This technology has the advantages of advanced technology, reasonable structure, no vibration, no noise, no pollution, high processing quality, etc., and can be widely used in the production of aerospace military industry, electronic appliances, instruments, automobiles, household appliances, hardware and other industries, especially suitable for For the processing of various types of automotive components, automotive components processed using this technology have been applied to various models such as BMW, VW, BENZ, FORD, ROVER, TOYOTA, and NISSAN.
The basic principle of the plastic splicing technology reserved by hot riveting is that the rivet posts, ribs or vertical ribs of the molding parts are passed through the pre-made holes on the stamped metal plate, and the non-contact heating process is applied to the plastic parts. The protruding part of the rivet on the metal surface is heated. When the protruding rivet post on the metal surface is softened by heat, it is then pressed with a special metal forming rivet horn, so that the plastic rivet post is reshaped in a locked state after being heated, and riveted after cooling. With specific shape of rivet horns, flush rivets, countersunk rivets (sink rivets), hemisphere rivets, arc flange rivets, stand-up rib-shaped rivets, hemming inlays, etc.pot welding of film, cloth, thermoplastic products, as well as the inlaying and blanking process between metal and plastic parts.





Application



  • Plastic toys, water guns, aquarium games, children's dolls, plastic gifts, etc .;
  • Electronic products: recordings, cassettes and core wheels, disk enclosures, mobile phone battery panels and rectifier transformers, switch sockets, remote controls, electronic mosquito swatters, fake bottle caps, etc .;
  • Household appliances: electronic clocks, electric blower blowers, steam iron water tanks, electric kettles, computers, etc .;
  • Stationery and daily necessities: stationery boxes, aquarium rulers, folder seams and shells, pen holders, cosmetics box shells, toothpaste tube caps, cosmetic mirrors, thermos cups, lighters, seasoning bottles and other sealed containers;
  • Automobiles and motorcycles: accumulators, front corner lights, rear lights, meters, reflectors, welding of automobile manual shields, welding of automobile door panels, welding of automobile front bezels, welding of automobile foot pads, repair welding of automobile bumpers, etc .;
  • Applications in the sports industry: table tennis, table tennis rackets, badminton rackets, tennis rackets, golf clubs, pool tables, treadmill roller skip rope grip steppers, treadmill accessories, jumping boxes, gymnastic mats, boxing gloves, boxing punching bags, Sanda care Sports equipment, such as sign boards, path signs, X displays, etc .;
  • Packaging industry: welding of hollow boards and boxes, welding of ziplock bags, etc.



Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder 0

Switchable Ultrasonic Spot Welder  Plastic Riveting Ultrasonic Hand Welder 1
