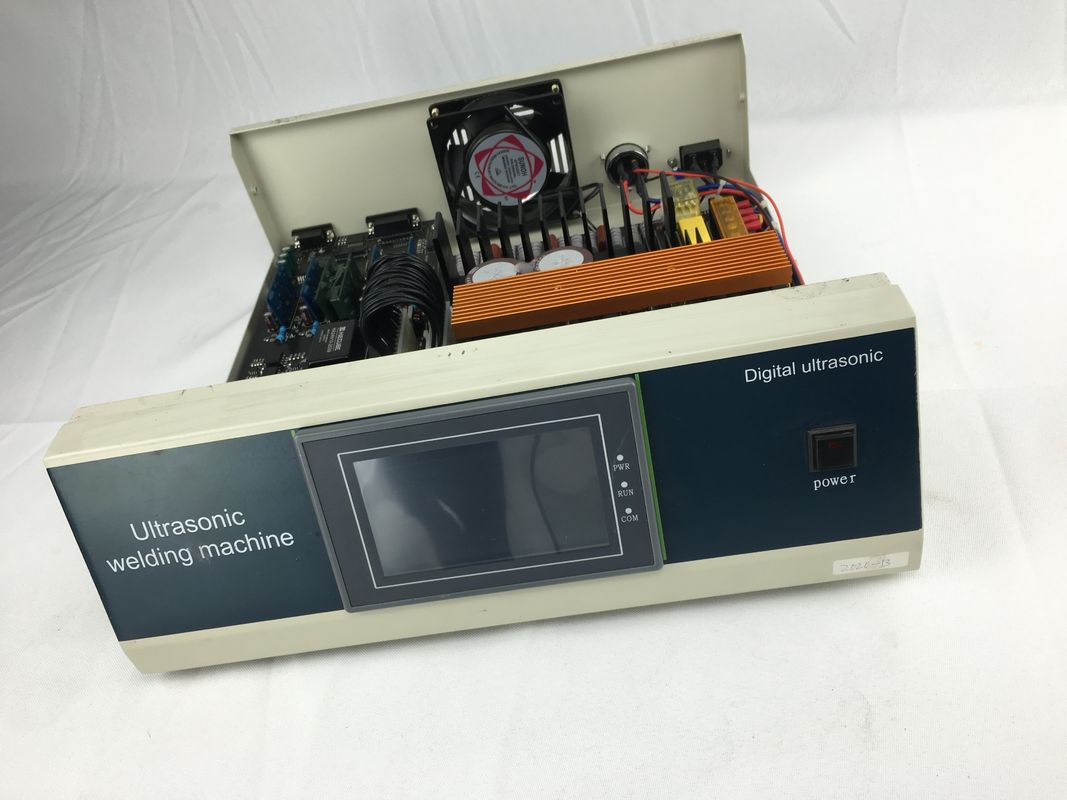

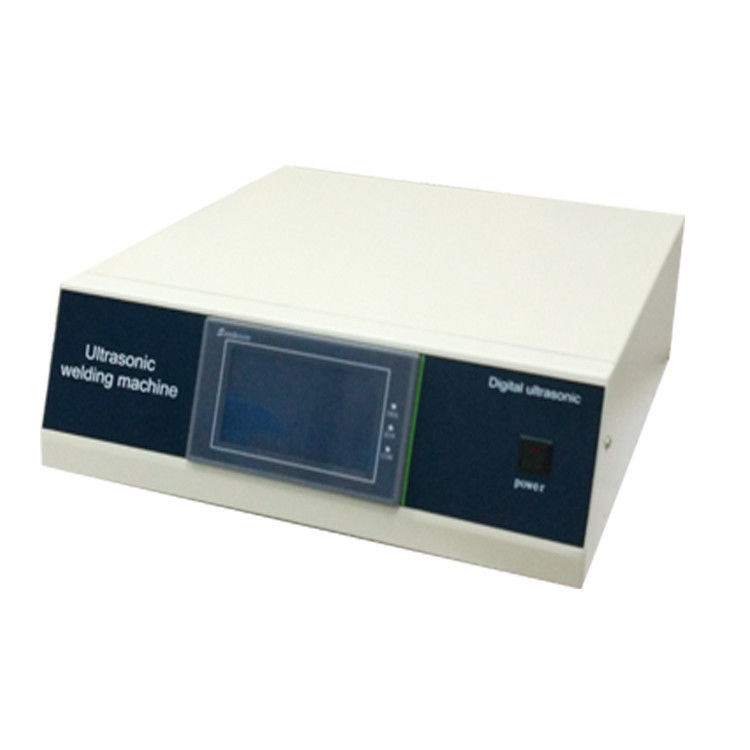

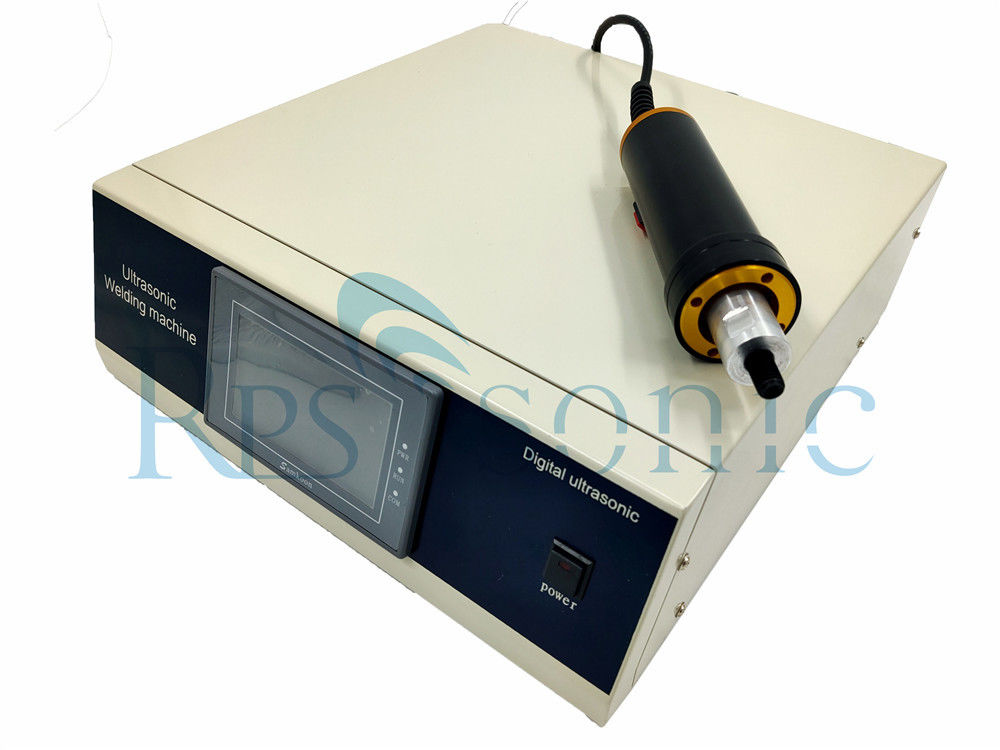

PLC Control Ultrasonic Welding Generator Touch Screen Digital Ultrasonic Generator

high power ultrasonic welding power supply PLC control and touch screen

Ultrasonic welding generator, also known as ultrasonic welding power supply, is an important part of high-power ultrasonic system. The role of the ultrasonic generator is to convert the mains power into a high-frequency alternating current signal that matches the ultrasonic transducer and drive the ultrasonic transducer to work. From the aspect of conversion efficiency, high-power ultrasonic power supply generally adopts the circuit form of switching power supply. Ultrasonic power is divided into self-excited and self-excited power. Self-excited power is called ultrasonic analog power, and it is called ultrasonic generator.

Parameter:

Advantage :

• The ultrasonic generator can monitor the working frequency and power of the high-power ultrasonic system.
• Able to adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time, etc.
• Frequency adjustment: Adjust the frequency so that the ultrasonic transducer always works in the best state, the efficiency reaches the maximum, and the adjustment range is 2%.
• Automatic follow-up: Once the device has completed its initial setup, it can operate continuously without the need to adjust the generator.
• Amplitude control: When the load changes during the operation of the transducer, it can automatically adjust the driving characteristics to ensure that the tool head gets a stable amplitude.
• System protection: When the system works in an unsuitable operating environment, the generator will stop working and display an alarm to protect the equipment from damage.
• Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the working process. The setting range of the amplitude: 0% ~ 100%.
• Automatic frequency search: The working frequency of the tool head can be automatically determined and stored.
