Rotary Button Ultrasonic Power Supply High Accuracy Circuit Board PCB

Rotary Button Ultrasonic Power Supply High Accuracy Circuit Board PCB

high power ultrasonic generator

ultrasonic wave generator

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-HC2000E

Contact Us

Request A Quote
Product Details
Frequency:
15Khz~60khz
Power:
2500W In Max
Excitement:
Separate Excitation
Generator:
Digital Generator
Operate:
Rotary Button
Frequency Range:
+-1000hz
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union
Supply Ability
200PCS/MONTH
Product Description

high frequency Cheap ultrasonic power supply circuit board PCB for welding

The ultrasonic welding generator advanced technologies such as micro-computer controlled other-excited lines, automatic frequency tracking and frequency sweeping operation. Compared with the traditional control box, it has stable and reliable work, continuously adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic tracking of the working frequency makes the output match better, the power is stronger, and the efficiency is higher.



Function: Overheating protection and overcurrent protection, more reliable work.
Working voltage: 220V or 110V

Rated power 600W 900W 1200W 1500W 1800W 2400W 2700W

Working current 2.5A 3.5A4.5A 5A
Working current: Please note that the device cannot be operated for longer than the rated current.

Ambient temperature: 0-40C °

Relative humidity: 40%-90%
Working frequency: 20KHZ ~60Khz.

Time control: 0--59 minutes and 59 seconds

Power control range: 10-90%
Overheating protection: 65 C °





Parameter:



Item Parameter
Power 3000W In max
Frequency range ±1khz
Operating temperature ≤65℃
Frequency 20Khz~60khz
Amplitude adjust 10%~90%
Voltage 110V/220V
Circuit Digital,separate excitation



Why RPS-SONIC Generator:



1. Each power will be tested by Specify transducer .

2. All generator with one year warranty.

3. Specialized in high power ultrasonic for more than ten years

4. Every generator with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation



Advantages:

1. High reliability, due to the use of the latest high-power power electronic devices, control ICs and advanced electrical principle topologies introduced by famous foreign manufacturers, combined with effective soft-start, soft-switching technology, and microsecond-level rapid detection of overvoltage and overcurrent Protection technology makes the new generation of ultrasonic generator not only greatly increase the ultrasonic output power, but also greatly improve the reliability;
2. High efficiency, abandoning low-efficiency power transformers and traditional circuit structures, so that the efficiency of converting mains input power to ultrasonic output power is as high as 95%;
3. Transducer protection, high-permeability power devices step down the output and widen the resonance frequency band, so that the ultrasonic transducer (vibrator) is uniformly loaded at a relatively low voltage, optimize the working conditions of the transducer, and extend the use of the transducer life;
4. Strong output, accurate resonance, large output power, strong explosive power, and high efficiency greatly increase the intensity of ultrasound by 40%;
5. Resonant frequency tracking, fine-tune the resonant frequency according to different working conditions, so that the ultrasonic equipment maintains the best working condition;
6. Amplitude adjustment and modular power adjustment make the ultrasonic output power continuously adjustable from 10% to 90%;
7. Miniaturization and light weight,this ultrasonic generators has achieved unprecedented miniaturization and light weight. Compared with traditional generators, the volume is reduced by 50% and the weight is reduced by 40%. Small and lightweight are advanced power electronic equipment. 120*120*380mm in size and 2.5kgs in weight.

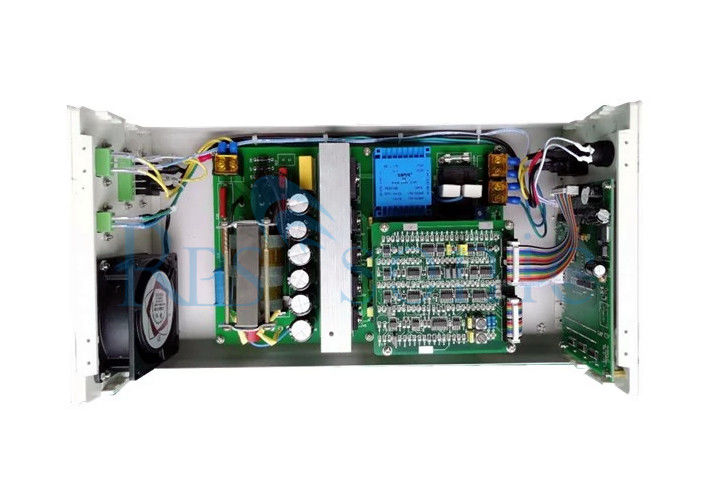

Rotary Button Ultrasonic Power Supply High Accuracy Circuit Board PCB 0

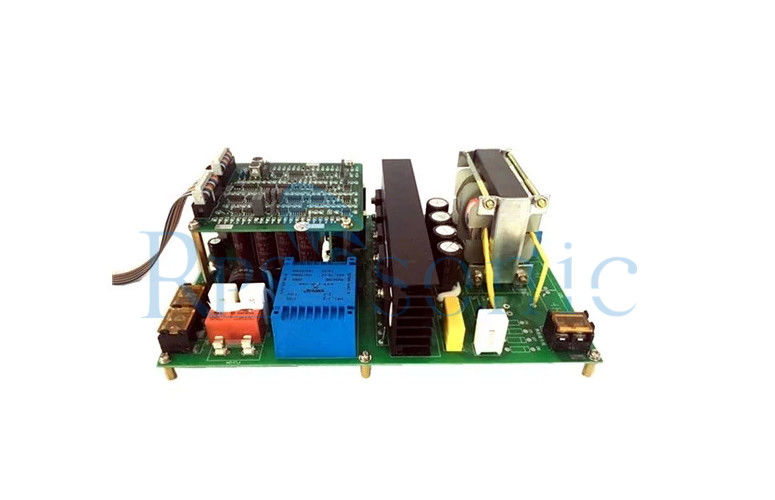

Rotary Button Ultrasonic Power Supply High Accuracy Circuit Board PCB 1
