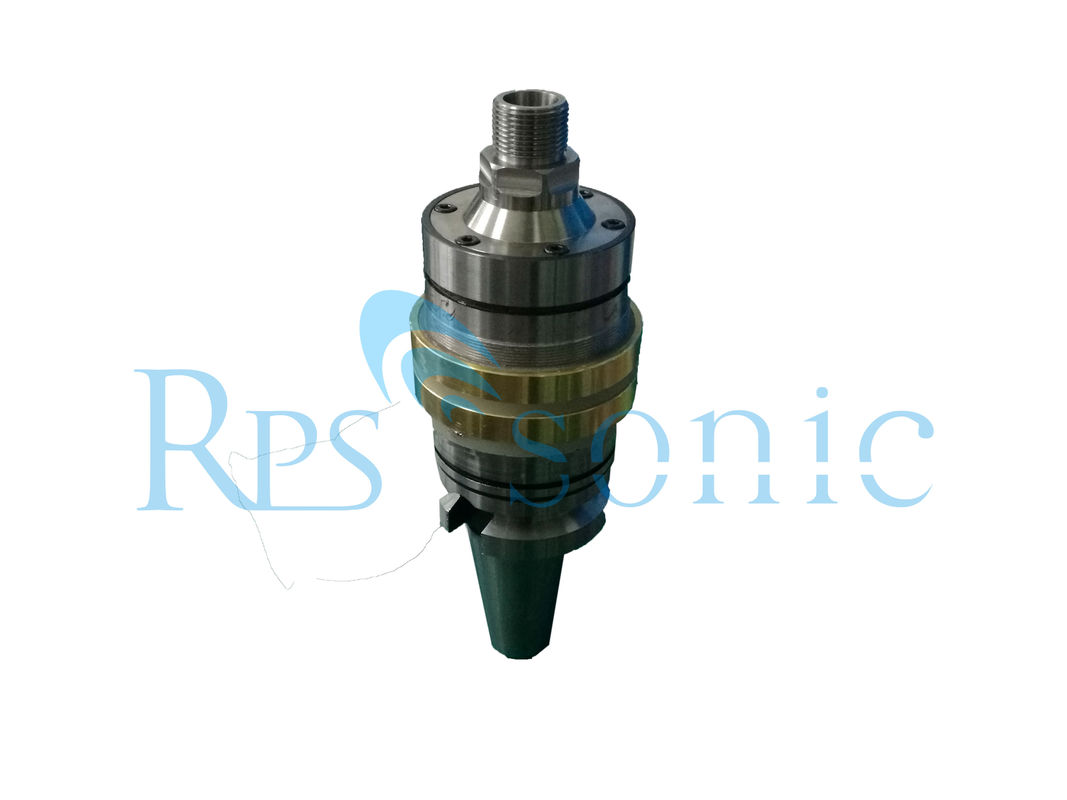

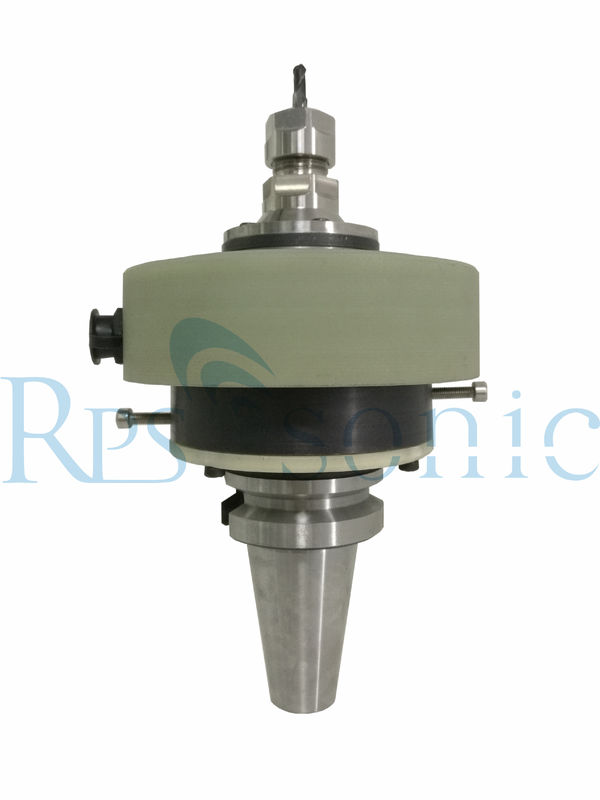

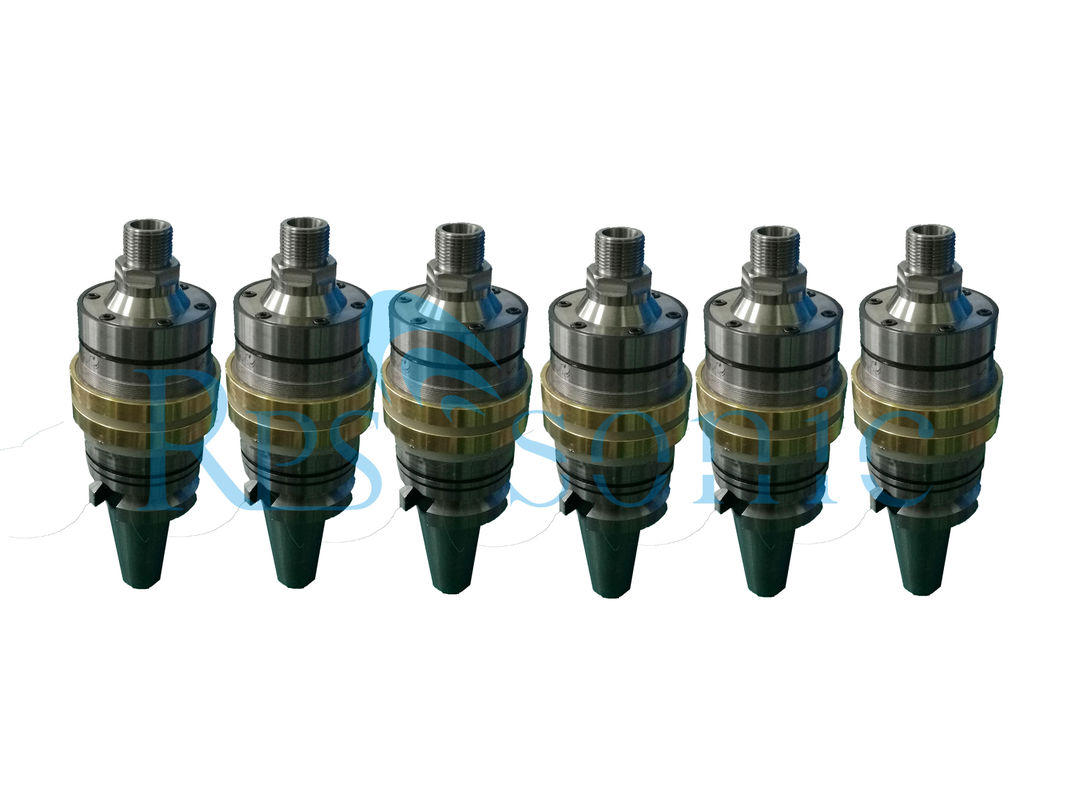

20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting

20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting
20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting 20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting 20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting

Large Image :  20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-HM20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

20Khz Ultrasonic Machining Tool Ultrasonic Vibration Assisted Ceramic Glass Cutting

Description
Frequency: 20khz Power: 1000W
Amplitude: 15~50um Gap Overcut: 0.02-0.1
High Light:

ultrasonic assisted drilling

,

ultrasonic milling components

20Khz ultrasonic vibration-assisted cutting for ceramic & glass cutting

Parameter

Item Parameter
Abrasive Boron carbide, aluminium oxide and silicon carbide
Grit size(d0) 100 – 800
Frequency of vibration (f) 19 – 25 kHz
Amplitude of vibration (a) 15 - 50 µm
Tool material Soft steel titanium alloy
Wear ratio Tungsten 1.5:1 and glass 100:1
Gap overcut 0.02-0.1 mm



Introduction:

Ultrasonic cutting application technology

ultrasonic vibration-assisted cutting for ceramic & glass cutting can be applied to the processing of electronic components (ceramic components) and optical components (optical and electronic components, optical communication components). Difficult cutting materials such as ceramics are cut.

Problems encountered in the past when machining difficult-to-cut materials
When cutting difficult-to-cut materials such as glass, ceramics, metals, and resins, various problems are easy to occur
Due to the phenomenon of passivation of the abrasive particles of the grinding wheel blades * 1 and clogging of air holes * 2, the processing load is increased. As the processing load becomes larger * 3, chipping of the workpiece and the formation of burrs will further increase, resulting in damage to the grinding wheel blade, abnormal wear, and burnout of the workpiece.
* 1 Abrasive particles on the head of the grinding wheel are worn away, and the surface abrasive particles are passivated. In this state, the grinding wheel blade cannot be processed normally.
* 2 Abrasive particles on the surface cannot be protruded because cutting debris and adhesive film adhesive of the workpiece are adhered to the head of the grinding wheel blade. In this state, as with the abrasive grain passivation, the grinding wheel blade cannot be processed normally.
* 3 Using finer abrasive particles or increasing the feed speed will increase the machining load. By observing the change in the spindle current value, you can confirm whether the machining load is increasing.

Because the application range of this type of grinding wheel blade is limited, in order to prevent the occurrence of passivation of abrasive grains and clogging of pores when selecting a bonding agent, the process requires moderate wear of the grinding wheel blade, so a bonding agent other than resin is used It will be more difficult. In addition, even when selecting the size of the abrasive grains, it is necessary to use the larger # 320 to # 600 abrasive grains.
In order to solve the problems mentioned above during the processing of difficult-to-cut materials, our company has developed



Ultrasonic cutting technology as one of its solutions.

When using ultrasonic technology for cutting, the front-back vibration generated by the ultrasonic vibrator installed behind the main shaft is transmitted to the outer part of the grinding wheel blade through the abutment of the main shaft and the grinding wheel blade, and is converted into an expansion motion in the radial direction. With this vibration conversion method, the ideal vibration direction required for ultrasonic processing can be obtained.



Application:


1. Processing of difficult-to-cut materials: stainless steel, hardened steel, high-speed steel, titanium alloy, high-temperature alloy, cold-hardened cast iron, and non-metal materials such as ceramics, glass, stone, etc., which are difficult to process due to mechanical, physical, and chemical characteristics, such as Using ultrasonic vibration cutting can make it easier.
2. Cutting of difficult-to-machine parts: such as slender shaft parts that are easy to bend and deform, small-diameter deep holes, thin-wall parts, thin-disk parts and small-diameter precision threads, as well as complex shapes, high machining accuracy and surface quality requirements Components.
3. High precision, high surface quality workpiece cutting.
4. Difficult chip removal and chip breaking.
Fourth, the application of ultrasonic vibration chip: widely used in aviation, aerospace, military and other fields.
