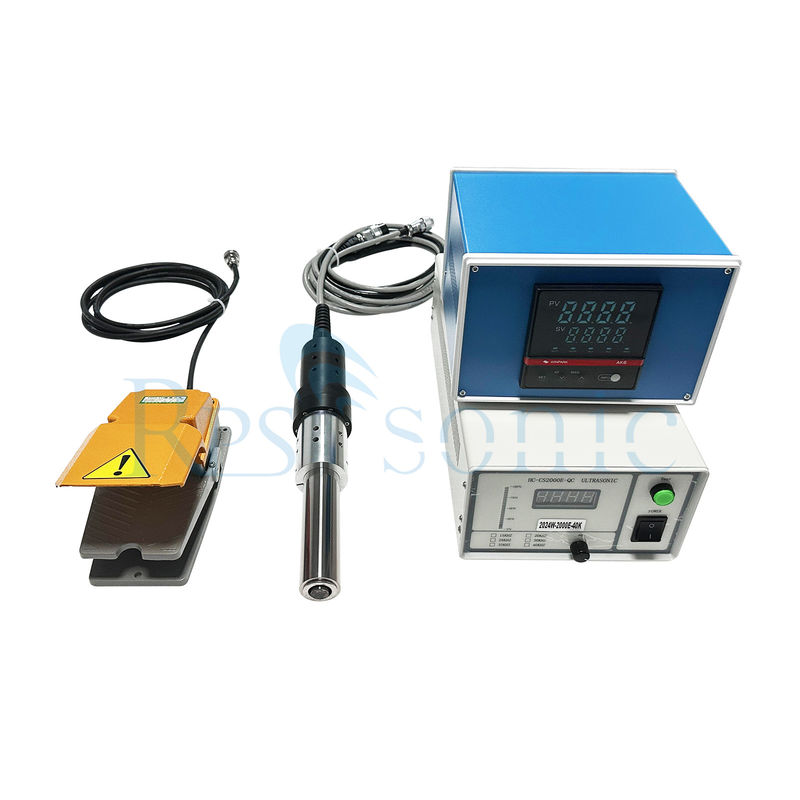

Handheld ultrasonic tinning machine

Handheld Ultrasonic tinning machine

What is ultrasonic tinning machine?

An ultrasonic tinning machine is a specialized piece of equipment used in the electronics manufacturing industry. It employs ultrasonic waves to enhance the tinning process, which involves coating metal surfaces with a layer of tin. This is particularly important for improving solderability and preventing corrosion on components such as wires, connectors, and circuit boards.

Key Features of Ultrasonic Tinning Machines:

Ultrasonic Technology: Utilizes high-frequency sound waves to create microscopic cavitation bubbles in a liquid bath, aiding in the removal of contaminants and improving the adhesion of the tin.

Efficiency: The ultrasonic action allows for faster and more uniform tinning compared to traditional methods.

Quality: Produces a smoother and more consistent tin coating, which enhances the electrical conductivity and longevity of the components.

Environmentally Friendly: Often uses less harmful chemicals compared to conventional tinning processes, reducing the environmental impact.

Versatility: Suitable for various materials and component shapes, making it useful in multiple applications.

Applications:

Electronics Manufacturing: Used for preparing and coating electronic components for soldering.
Automotive Industry: Tinning of connectors and wiring to enhance reliability.
Telecommunications: Coating of components to ensure effective signal transmission.

Overall, ultrasonic tinning machines are vital for ensuring high-quality surface finishes in electronic components, contributing to better performance and reliability in end products.

A tinning machine is primarily used in the manufacturing and processing of metal products, particularly for applying a tin coating to steel or other metals. Here are some key uses and benefits of tinning machines:

Corrosion Resistance: Tinning provides a protective layer that helps prevent rust and corrosion on metal surfaces, thereby extending the lifespan of products.

Solderability: Tin-coated surfaces are easier to solder, making tinning machines essential in the electronics industry for circuit boards and components.

Food Safety: Tinning is commonly used in the food industry, especially for food cans, as tin is non-toxic and helps protect food from contamination.

Electrical Conductivity: Tinned metals maintain good electrical conductivity, making them suitable for various electrical applications.

Aesthetic Appeal: Tin coatings can enhance the appearance of metal products, providing a shiny finish that is appealing in consumer goods.

Automotive and Aerospace Applications: Tinning is used in components that require both corrosion resistance and solderability.

Overall, tinning machines play a crucial role in various industries by enhancing the durability and functionality of metal products.

What are the main advantages of using ultrasonic tinning over traditional methods?

Ultrasonic tinning offers several advantages over traditional tinning methods. Here are the main benefits:

1. Improved Adhesion

Ultrasonic vibrations create microscopic cavitation bubbles that help remove contaminants and improve the bonding of tin to the substrate, leading to better adhesion.

2. Uniform Coating

The ultrasonic process ensures a more even and consistent tin layer across complex shapes and surfaces, reducing the risk of weak spots.

3. Faster Processing Times

The enhanced cleaning and tinning efficiency can significantly reduce the time required for the tinning process compared to traditional methods.

4. Reduced Chemical Use

Ultrasonic tinning often requires fewer and less harmful chemicals, making it more environmentally friendly and reducing operational costs.

5. Lower Energy Consumption

The process can be more energy-efficient, as it operates effectively at lower temperatures and with less energy input than conventional methods.

6. Versatility

Suitable for a wide range of materials and component geometries, ultrasonic tinning can adapt to various applications in electronics, automotive, and telecommunications.

7. Enhanced Surface Finish

The ultrasonic action contributes to a smoother surface finish, improving the electrical properties and corrosion resistance of the coated components.

8. Less Mechanical Stress

The gentler process minimizes mechanical stress on components, reducing the risk of damage during the tinning process.

9. Higher Quality Standards

The ability to achieve precise control over the tinning process helps meet stringent quality standards in the manufacturing of electronic components.

In summary, ultrasonic tinning is a modern and efficient alternative to traditional tinning techniques, offering enhanced performance, quality, and sustainability.

What industries are currently adopting ultrasonic tinning technology?

Ultrasonic tinning technology is being adopted across various industries, primarily due to its efficiency and superior quality. Here are some key sectors utilizing this technology:

1. Electronics Manufacturing

Widely used for tinning circuit boards, connectors, and electronic components to enhance solderability and prevent corrosion.

2. Automotive Industry

Employed for tinning wiring harnesses, connectors, and electronic control units, ensuring reliable connections and performance.

3. Telecommunications

Used for coating components like antennas, circuit boards, and connectors, improving signal transmission and durability.

4. Aerospace

Adopted for critical components where reliability and performance are paramount, particularly in wiring and electronic assemblies.

5. Medical Devices

Utilized in the manufacturing of medical equipment and devices where high-quality, reliable connections are essential for safety and functionality.

6. Renewable Energy

Implemented in the production of solar panels and wind turbine components to improve electrical connections and resistance to environmental factors.

7. Industrial Equipment

Used for tinning connectors and wiring in various industrial machinery, enhancing operational efficiency and lifespan.

8. Consumer Electronics

Adopted for manufacturing items such as smartphones, computers, and home appliances, where quality and performance are critical.

9. Defense and Military

Employed in the production of secure and reliable electronic systems used in defense applications, ensuring high standards of quality and durability.

Can you explain the ultrasonic tinning process in more detail?

The ultrasonic tinning process involves several key steps and utilizes ultrasonic technology to enhance the tinning of metal surfaces. Here’s a detailed breakdown of the process:

1. Preparation of Components

Cleaning: Before tinning, components must be thoroughly cleaned to remove contaminants such as oils, dirt, and oxidation. This step is crucial for ensuring good adhesion of the tin layer.
Inspection: Components are inspected for defects or irregularities that might affect the tinning process.

2. Ultrasonic Cleaning

Ultrasonic Bath: The components are immersed in a liquid cleaning solution (often water-based) within an ultrasonic cleaning tank.
Ultrasonic Waves: High-frequency sound waves are generated using transducers, creating rapid pressure changes in the liquid. This leads to the formation and collapse of microscopic bubbles (cavitation).
Effective Cleaning: The cavitation action effectively dislodges contaminants from the surface of the components, ensuring a clean substrate for tinning.

3. Tinning Process

Tinning Bath: After cleaning, the components are transferred to a tinning bath that contains molten tin or a tin alloy.
Ultrasonic Application: Ultrasonic waves are applied during the tinning process. This helps in:

Enhancing Heat Transfer: The vibrations increase the movement of tin particles, promoting better heat transfer and faster melting.
Improving Wetting: The ultrasonic waves facilitate the wetting of the substrate with the molten tin, ensuring a uniform coating.

Time and Temperature Control: The process is controlled for optimal time and temperature to achieve the desired thickness and quality of the tin layer.

4. Cooling and Solidification

Cooling: After the components are coated, they are removed from the tinning bath and allowed to cool. The cooling process solidifies the tin layer.
Inspecting the Coating: The thickness and quality of the tin coating are inspected to ensure they meet specifications.

5. Post-Tinning Treatment

Finishing Processes: Additional processes, such as polishing or further cleaning, may be applied to enhance the surface finish or prepare the components for assembly.
Quality Control: Final inspections are performed to ensure the components meet all required standards before they are shipped for use in manufacturing.

Benefits of Ultrasonic Tinning Process

Enhanced Cleaning: The ultrasonic cleaning step ensures that surfaces are free from contaminants, which is critical for adhesion and performance.
Uniform Coating: The application of ultrasonic waves during tinning promotes even distribution of the tin layer.
Efficiency: The process reduces the time required for cleaning and tinning, increasing overall production efficiency.

In summary, the ultrasonic tinning process combines advanced cleaning and coating techniques to produce high-quality, reliable components suitable for various applications in the electronics and other industries.
