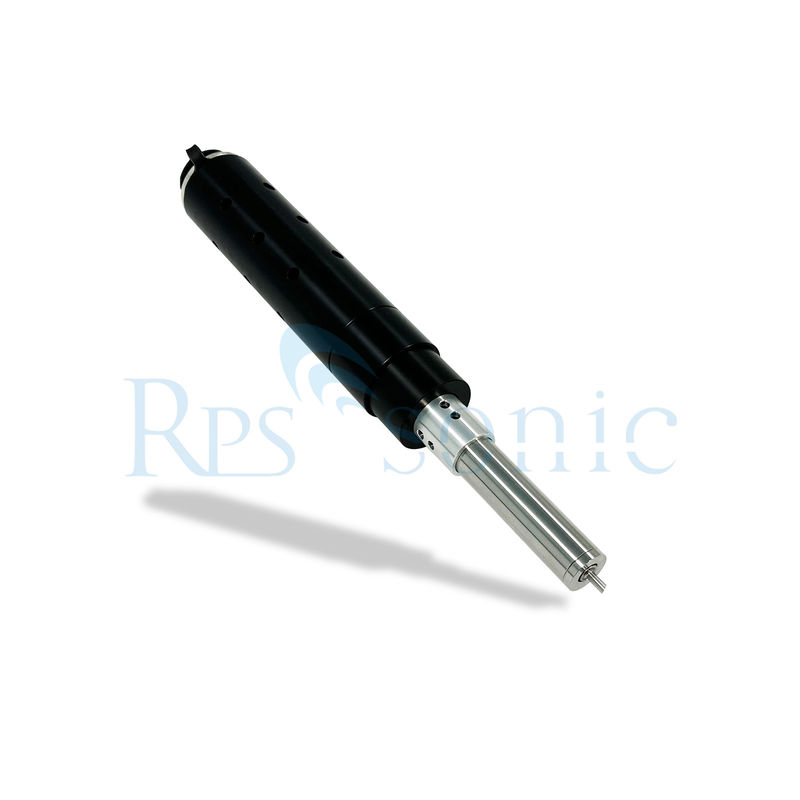

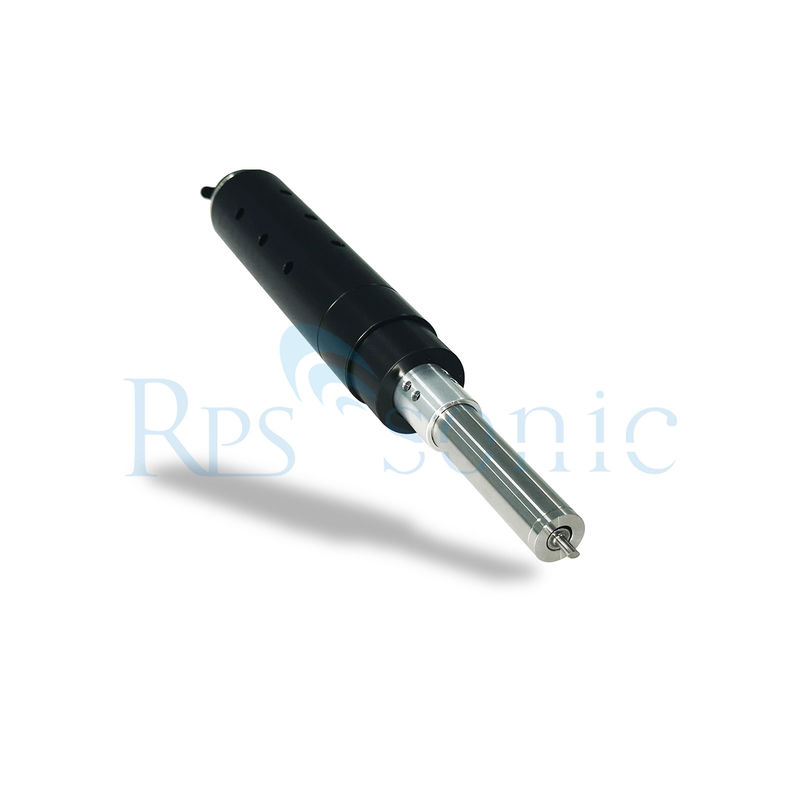

Handheld ultrasonic soldering iron New Rolling Curling Iron
An ultrasonic soldering iron is a specialized soldering tool that utilizes ultrasonic vibrations to enhance the soldering process, particularly for challenging materials like non-ferrous metals, plated components, or surfaces with stubborn oxides. Here’s a detailed breakdown of its features, working principles, applications, and advantages:
Unlike traditional soldering irons that rely solely on heat, ultrasonic soldering irons combine heat with high-frequency mechanical vibrations (ultrasonic waves, typically at 20–40 kHz). The key mechanisms are:
- Vibration-Assisted Cleaning: The ultrasonic waves generate micro-cavitations and shear forces that break down oxide layers and contaminants on the workpiece surface. This is critical because oxides (e.g., on aluminum, copper, or stainless steel) can prevent solder from adhering properly.
- Enhanced Wetting: By removing oxides, the solder (often lead-free or specialized alloys) can “wet” the surface more effectively, forming a strong metallurgical bond.
- Heat Transfer: The iron still provides thermal energy to melt the solder, but the ultrasonic vibrations significantly improve the efficiency of the process.
An ultrasonic soldering iron typically includes:
- Ultrasonic Transducer: Converts electrical energy into mechanical vibrations.

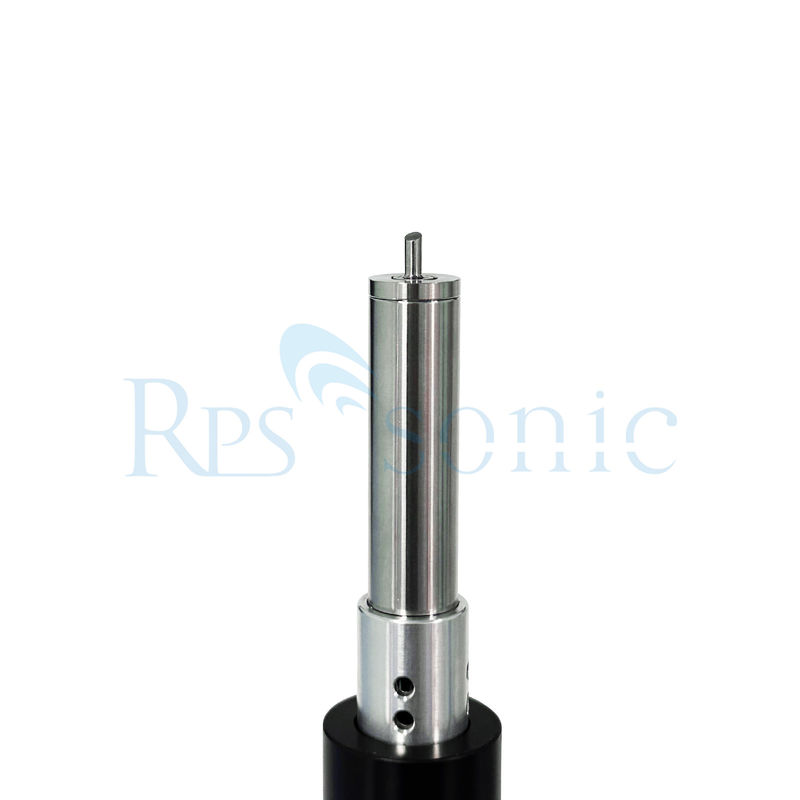

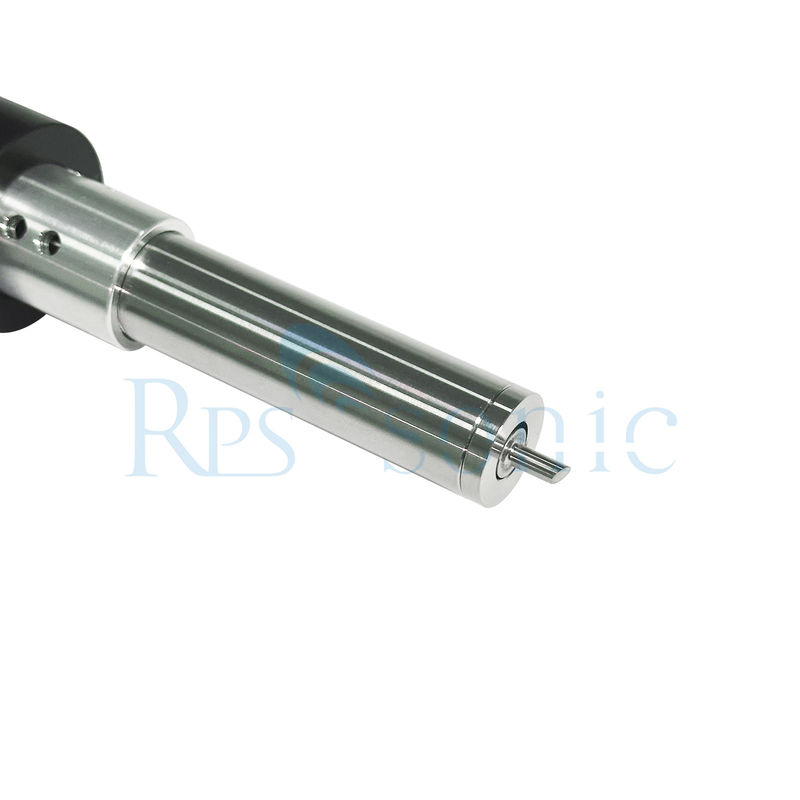

- Soldering Tip: Conducts both heat and ultrasonic waves to the workpiece. The tip is often made of durable materials (e.g., titanium or coated steel) to withstand high-frequency vibrations.
- Power Supply: Provides both heat (via a heating element) and ultrasonic energy to the transducer.
- Control Unit: Adjusts parameters like temperature, vibration amplitude, and soldering time.
Ultrasonic soldering is ideal for scenarios where traditional soldering fails due to oxidation or material complexity. Common uses include:
- Electronics Manufacturing: Soldering aluminum or copper components in circuit boards, especially for high-reliability applications like aerospace or automotive electronics.
- Jewelry and Metalworking: Joining non-ferrous metals (e.g., silver, gold, aluminum) without excessive heat, which can damage delicate designs.
- Solar Panel Production: Bonding aluminum or copper ribbons to solar cells, where oxide layers are prevalent.
- Medical Devices: Soldering tiny components in medical equipment, requiring precise and clean joints.
- Repair Work: Desoldering or reworking components on oxidized or corroded boards.
| Feature |
Ultrasonic Soldering |
Traditional Soldering |
| Oxide Removal |
Automatic via ultrasonic vibrations. |
Requires flux or manual cleaning. |
| Solder Wetting |
Excellent, even on difficult metals. |
Poor on oxidized surfaces without flux. |
| Flux Dependency |
Reduced need for flux (environmentally friendly). |
Heavy reliance on flux (may cause residues). |
| Heat Exposure |
Lower heat required, reducing risk of damage. |
Higher heat may harm sensitive components. |
| Joint Strength |
Stronger, more reliable bonds. |
Variable, depending on surface cleanliness. |
- Cost: Ultrasonic soldering irons are more expensive than traditional models due to the added transducer and electronics.
- Complexity: Requires careful calibration of temperature and vibration settings for different materials.
- Tip Wear: The soldering tip may degrade faster due to continuous vibrations, requiring regular replacement.
- Noise: Ultrasonic vibrations can produce high-pitched sounds (though often below human hearing range, depending on frequency).

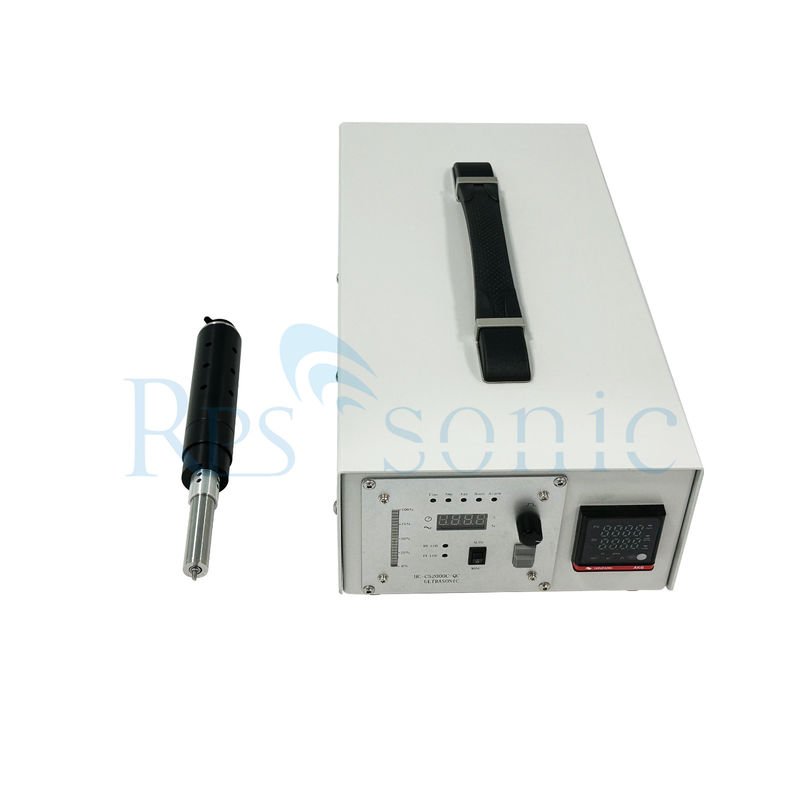

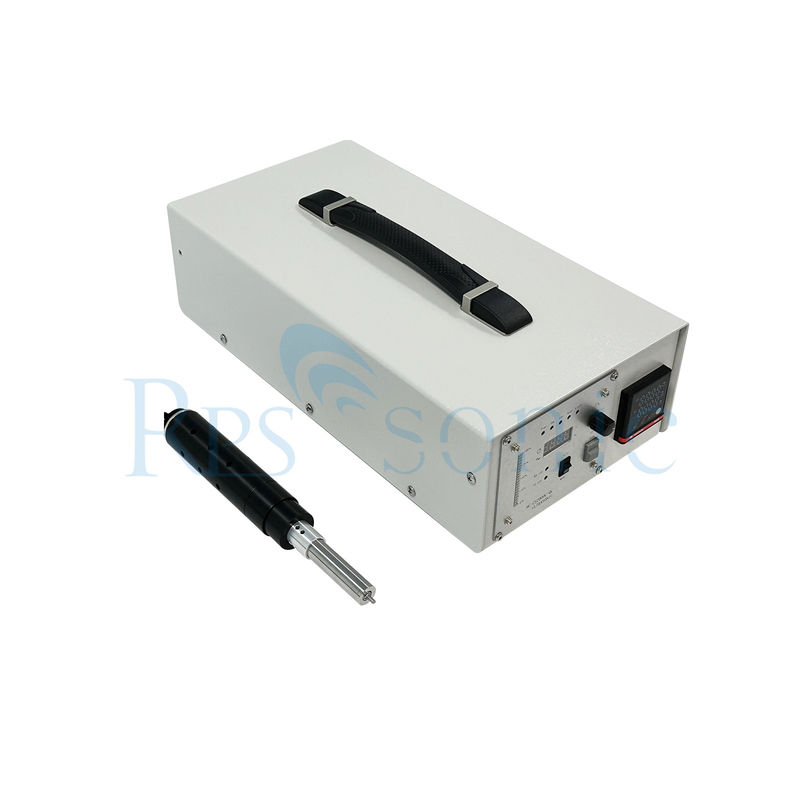

- Handheld Units: Portable for manual soldering tasks (e.g., repair work or small-scale production).
- Bench-Mounted Systems: Industrial-grade models for automated assembly lines, offering precise control over heat and vibration.
- Ultrasonic Soldering Guns: Combine soldering and flux application in a single tool, optimizing efficiency.
- Flux Reduction: By minimizing reliance on chemical fluxes, ultrasonic soldering reduces hazardous waste and improves workplace safety.
- Heat Management: Lower heat output reduces the risk of burns or thermal damage to components.
Ultrasonic soldering irons are indispensable for joining challenging materials where traditional methods fall short. By merging heat with ultrasonic technology, they enable cleaner, stronger solder joints with less reliance on chemicals, making them valuable in industries demanding high precision and reliability. Whether for delicate electronics or robust metal fabrication, their ability to overcome oxidation ensures consistent, professional results.
Ultrasonic soldering irons play a critical role in electronics manufacturing, particularly for tasks involving non-ferrous metals, oxidation-prone surfaces, or sensitive components where traditional soldering methods struggle. Below are their common applications in this field, along with technical insights and examples:
Aluminum is lightweight and cost-effective but forms a thick, tenacious oxide layer (Al₂O₃) that repels solder. Ultrasonic soldering solves this by:
- Breaking Down Oxides: Vibrations disrupt the Al₂O₃ layer, allowing solder (e.g., aluminum-tin alloys) to bond directly with the metal.
- Applications:
- Power Electronics: Bonding aluminum heat sinks to PCBs in power amplifiers or voltage regulators to improve thermal dissipation.
- Automotive Electronics: Soldering aluminum wires or terminals in car sensors, LED headlights, or electric vehicle (EV) battery management systems (BMS).
- Consumer Electronics: Joining aluminum casings or shields to PCBs in smartphones or laptops for electromagnetic interference (EMI) suppression.
While copper solders more easily than aluminum, oxidation (e.g., CuO/Cu₂O) and plating thickness variations can still cause issues. Ultrasonic soldering enhances:
- Wetting on Oxidized Copper: Used in aged or exposed copper traces on PCBs during repair or rework.
- Applications:
- High-Current Circuits: Soldering thick copper buses or traces in inverters, motor drives, or battery packs (e.g., in EVs or renewable energy systems).
- Flexible PCBs: Bonding copper flex traces to rigid PCBs, where traditional heat may damage flexible substrates.
- Copper-Plated Components: Ensuring reliable joints on copper-plated connectors, switches, or relays.
These metals are resistant to corrosion but have poor solderability due to stable oxides (e.g., Cr₂O₃ on stainless steel). Ultrasonic soldering enables:
- Direct Metallurgical Bonding: By removing oxides, solder (often with nickel or silver content) adheres without excessive flux.
- Applications:
- Industrial Electronics: Soldering stainless steel brackets or enclosures to PCBs in harsh environments (e.g., factory automation, oil/gas equipment).
- Medical Devices: Bonding nickel-plated components in pacemakers, MRI equipment, or surgical tools, where biocompatibility and reliability are critical.
Environmental regulations (e.g., RoHS) drive the use of lead-free solders (e.g., Sn-Ag-Cu), which have higher melting points and poorer wetting ability. Ultrasonic soldering addresses this by:
- Reducing Surface Tension: Vibrations help lead-free solder flow into tight gaps or fine-pitch components.
- Applications:
- High-Density PCBs: Soldering microprocessors, BGAs (ball grid arrays), or QFNs (quad flat no-lead packages) with minimal flux residue.
- Aerospace Electronics: Meeting strict standards for lead-free, low-outgassing joints in avionics or satellite components.
|
|
|
|
|
Ultrasonic Amplitude Adjustable
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
