20khz 305mm Ultrasonic Cutting Blades With Digital Generator

20khz 305mm Ultrasonic Cutting Blades With Digital Generator

20khz Ultrasonic Cutting Blades

305mm Ultrasonic Cutting Blades

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Cutting Hight:
Cutting Width:
Ultrasonic Food Cutting
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
Product Description

305mm ultrasonic cutting blades for cheese cutting with digital generator

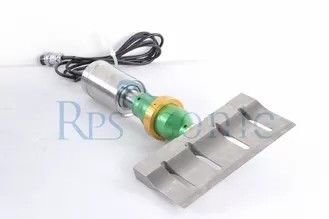

20khz 305mm Ultrasonic Cutting Blades With Digital Generator 0


Machine Ultrasonic cake Cutter
Frequency(KHz) 20Khz
Power 1000 W
Cutting Blade / Horn Titanium
Voltage(V) 220V
The width of blade depend on your requirement
Cutting thickness 86mm in max
Horn amplitude 10-40μm
Equipment weight 1KG

What's the principle of ultrasonic cutting?

RPS-SONIC offers high quality ultrasonic food cutting components, including ultrasonic generators, transducers, guillotines and slitters.

Ultrasonic food processing involves a vibrating knife (guillotine) producing a nearly frictionless surface that minimizes buildup on the blade surface. The ultrasonic blades cleanly cuts sticky products and inclusions such as nuts, raisins & morsels without displacement. Ultrasonic cutting is used by many of the world's largest and most prestigious food producers.

RPS-SONIC has worked in ultrasonic area more than 10years. RPS-SONIC'S ultrasonic components are a widely used and proven technology. The "guillotine" blades are crafted in titanium and employ the latest FEA design technology for trouble free operation and reliability.

Ultrasonic cutting, guillotining or sititing, can be thought of as an enhancedconventional cutting process. The blade has a cutting edge and a shank. Theultrasonic vibration of 20kHz moves the cutting tip rapidly forward andback, superimposed on a forward movement of perhaps 5 m/min. Thisoscillating movement applies an intermittent cutting force to the crack tipand so controls this crack (cut) propagation or growth minimizing the stresson the bulk material. The repeated application of the cutting tip to theproduct applies a local fatiguing effect which reduces significantly theoverall required force to break the bonds of the bulk material. A usefulanalogy is the hammer drill or the pneumatic road drill concepts. A secondaspect to ultrasonic cutting is the friction reduction of the blade shank as itfollows the tip into the opening cut. In conventional cutting the blade has tocompress the bulk material to allow a gap the width of the blade to passthrough; the compression to the bulk applies a tensile rupturing force at thecrack tip. With ultrasonic cutting the whole blade moves or vibratescontinuously as it stretches and contracts. This very high-frequency movement effectively reduces the co-efficiency of friction to a verylow level, enabling the blade to slide through the bulk material withconsiderable reduction to the compression and contact, giving a forcereduction and decreased smearing effects.

The use of ultrasonics is becoming increasingly important for the foodindustry.Ultrasound in Food Processing enables scientists, engineers andmanagers in food manufacturing to make informed choices about anew and important area of research and development. It will also be avaluable reference to people working in other areas of ultrasoundresearch and instrument manufacture.wide ultrasonic food cutting machine Vibrating Guillotine Knives

Cleaner cuts for outstanding aesthetics on layered products
Reduced downtime for cleaning and reduce waste
Flexibility & increased productivity
Larger processing windows

Characteristics of ultrasound blades:
- Ultrasonic blades may vary in length and height, depending on clients' specific requirements
- Knife shapes and dimensions are studied by our technical department after taking into account details such as food thickness, ingredients,dimensions, density and additional special features
- They are made out of titanium and comply with all health and organoleptic standards regarding the automation field.20khz 305mm Ultrasonic Cutting Blades With Digital Generator 1
