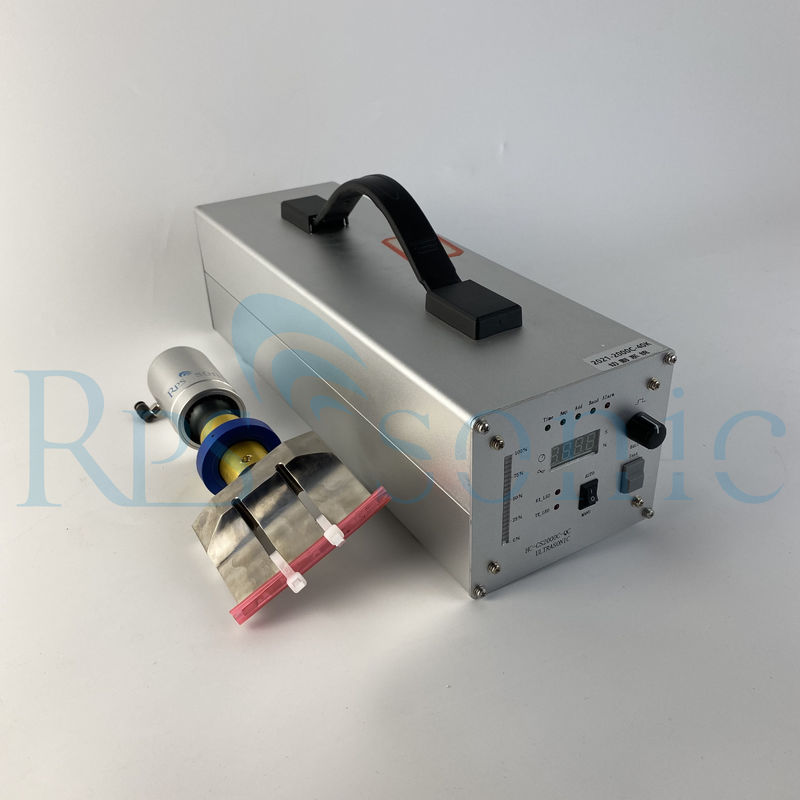

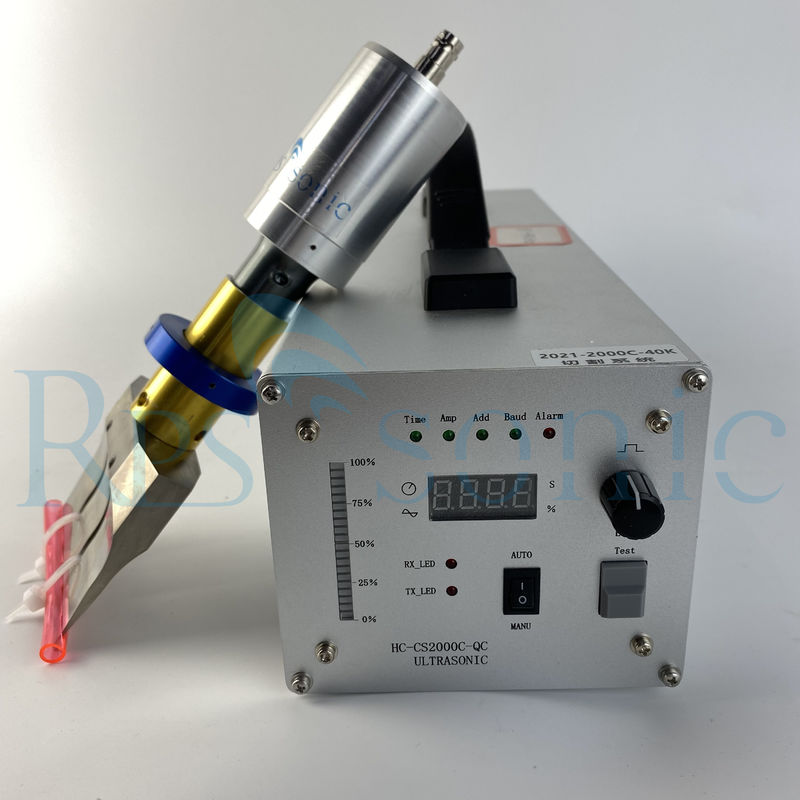

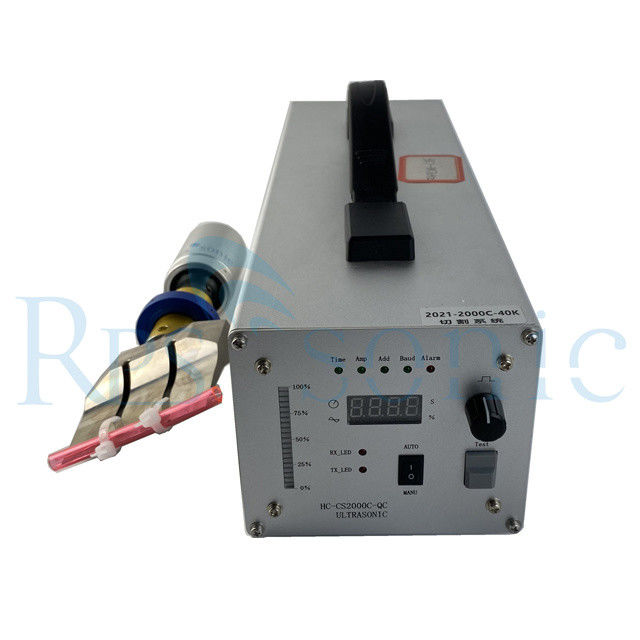

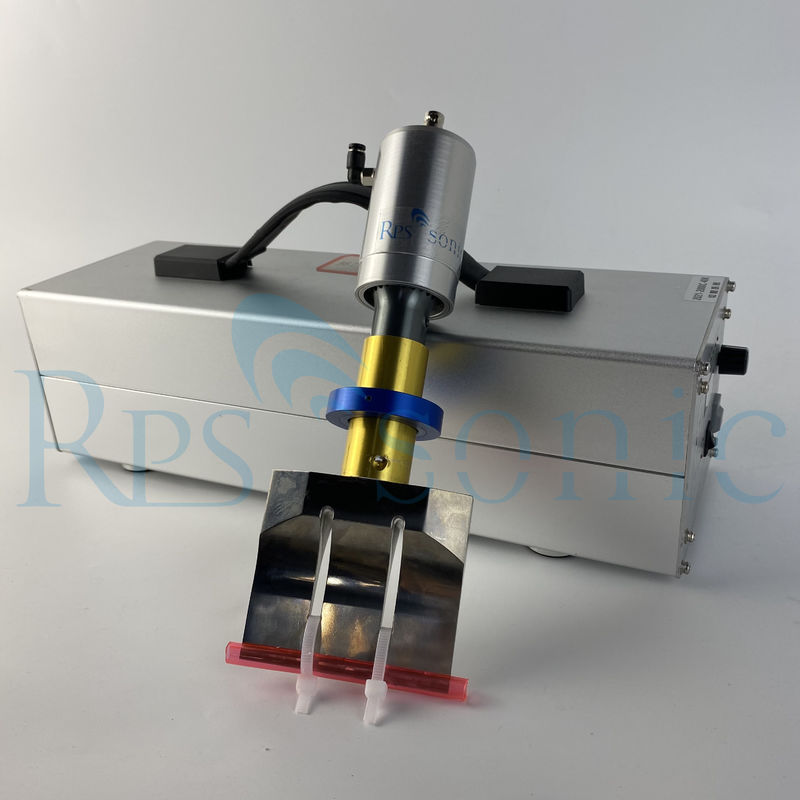

Titanium Horn Ultrasonic Rubber Cutter With 82.5mm Blade RS485 PLC Controlled

Titanium Horn Ultrasonic Rubber Cutter With 82.5mm Blade RS485 PLC Controlled

PLC controlled Ultrasonic Rubber Cutter

82.5mm Blade Ultrasonic Rubber Cutter

Titanium Horn Rubber Cutting Equipment

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Horn Material:
Blade Width:
Rubber Cutting ,food Cutting
Power Supply:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
Supply Ability
Product Description

S485 communication control Ultrasonic rubber cutting system with 82.5mm blade




Machine Ultrasonic rubber/cake Cutter
Frequency(KHz) 40KHz
Power 500 W
Cutting Blade / Horn Titanium
Voltage(V) 220V
The width of blade 82.5mm
Cutting thickness 10~20mm(depend on materials)
Horn amplitude 10-40μm
Equipment weight 0.6KG




The ultrasonic rubber cutting system is composed of an automatic frequency tracking generator, a high-Q ultrasonic transducer, and a titanium alloy cutting knife. It has a good performance in rubber cutting. The whole machine is simple and convenient to install, real-time frequency tracking, adjustable amplitude, abnormal protection, etc.; it can be controlled by PLC or RS485 communication.

The principle of ultrasonic cutting machine is completely different from traditional pressure cutting. It uses ultrasonic energy to locally heat and melt the material to be cut, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require sharp edges, nor does it require great pressure, and does not cause chipping or cracking of the material to be cut. At the same time, since the cutting knife is ultrasonically vibrated, the friction resistance is particularly small, and the cutting material is not easy to adhere to the blade. This is particularly effective for viscous and elastic materials, frozen materials (such as food), rubber materials, and objects that are inconvenient to apply pressure.

We can conduct tests for free and provide a variety of solutions, including production, secondary production, installation of E wiring and optimization of existing production lines.

Ultrasonic cutting uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. Ultrasonic rubber cutter can easily cut resin, rubber, plastic, fabric and various overlapping composite materials and food.

The principle of ultrasonic rubber cutting knife is to convert 50/60Hz current into 20, 30 or 4OkHx electric energy through an ultrasonic generator (also called ultrasonic power supply). The converted high-frequency electric energy is again converted into mechanical vibration of the same frequency through the transducer, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator devices that can change the amplitude. The ultrasonic rubber cutter vibrates along its length with an amplitude of 10-70μm, repeating 40,000 times (40 kHz) per second (the vibration of the blade is microscopic, which is hard to see with the naked eye). The cutting knife then transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the rubber by activating the molecular energy of the rubber and opening the molecular chain.




Intelligent automatic frequency tracking ultrasonic generator, real-time frequency tracking, power, current, and frequency abnormal protection;

20KHz 2000W high-power transducer, low impedance, high conversion efficiency, strong amplitude; special ultrasonic cutting knife, accurate frequency, strong wear resistance;

Titanium alloy horn, low impedance, high transmission efficiency;

The cutting precision is high, and the rubber material is not deformed;

You can choose 20KHz or 40KHz
