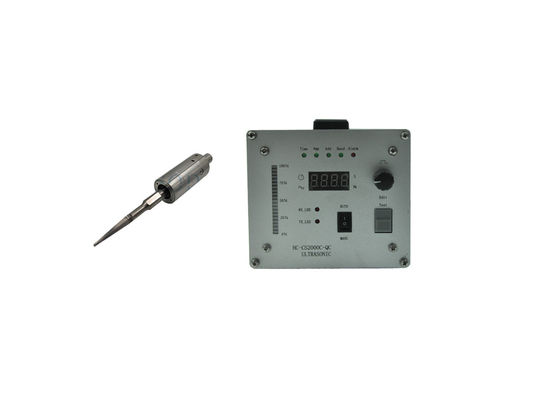

300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting

300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting
300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting 300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting 300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting 300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting 300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting

Large Image :  300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-C40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T
Supply Ability: 200PCS/MONTH

300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting

Description
Frequency: 40Khz Power: 300w
Horn Material: Titanium Weight: 6kg
Blade Thicness: 0.6mm Application: Nonwoven Cutting ,foam Cutting,fabric Cutting
High Light:

40Khz Ultrasonic Cutting Device

,

Honeycomb Cutting Ultrasonic Device

,

300 Watt Ultrasonic Cutting Device



40Khz 300w Handheld Ultrasonic Cutting Device for honeycomb cutting



Parameter



Frequency 40Khz
Frequency adjustment Auto-tracking type
Max. power output 300W
Power output Infinitive adjustment
Power supply AC200V 50/60Hz
Outer dimension (mm) 120*120*380
Weight 6kg
Blade thickness 0.6mm



Introduction



This is a high-frequency cutter featuring the 40 kHz (40,000 vibrations

per second) vibration frequency of tool with the amplitude of 30 microns.

It maximizes the effect of ultrasonic high-speed micro vibrations. A wide

range of materials, including newly developed composite materials,

rubber and leather, can be cut at will with low processing pressure, sharp

cutting surface and little cutting chips. The power control circuit specially

developed by us and the cooling air inlet suppress the heat generation of

transducer even for large amplitude, thus enabling extended continuous

use. (For a long-time operation without air cooling, contact us.)



Description



RPS-SONIC Ultrasonic cutting systems are ideal for cutting rubber, composite aerospace materials such carbon fiber, Nomex and various honeycombs. RPS-SONIC’s ultrasonic cutting systems can be operated as hand-held units or incorporated into automated machinery. Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications. Solid, one-piece construction of horn blade technology virtually eliminates breakage and energy loss. Our robust designs provide minimal blade flexure which yields straight cuts without having to support the blade. RPS-SONIC cutting systems come in 20,30, 35, and 40 kHz frequencies. Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment. Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.



Features



  • Ultrasonic Cuts are cleaner than conventional cutters with minimal debris

    Ideal for cutting rubber, composite aerospace materials such carbon fiber, nomex,and various honeycombs

  • Replaceable blade technology reduces setup time and reduces replacement tooling costs.

    Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.

  • Available in 20,30, 35, and 40 kHz frequencies

    Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment.

  • Large inventory of standard carbide cutting blades for all shapes and sizes of applications.

    Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications.

  • Robust Design

    Minimal blade flexure which yields straight cuts without having to support the blade
