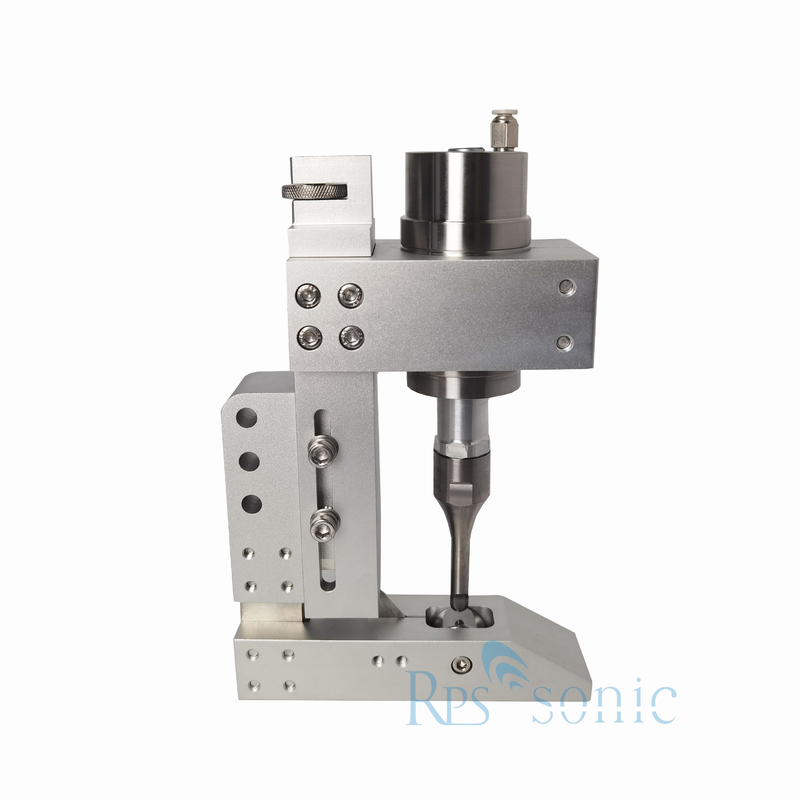

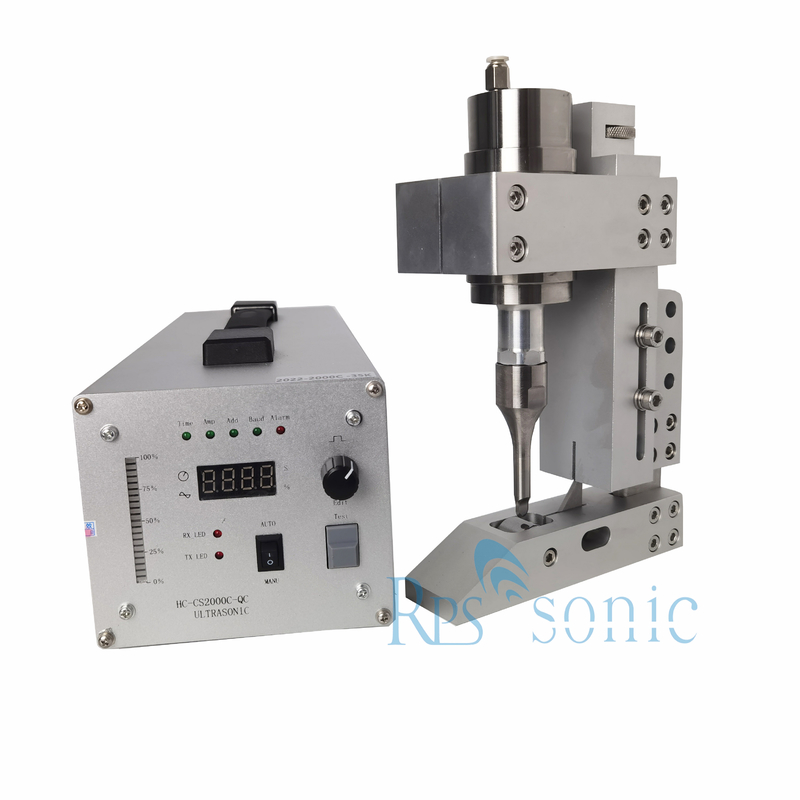

35Khz Ultrasonic Cutting and Sealing Machine for all fabrics

35Khz Ultrasonic Cutting and Sealing Machine for all fabrics

Ultrasonic cutting and sealing is an innovative technologies that have revolutionized the manufacturing industry. They are efficient and reliable, making them ideal for a wide range of applications.

Ultrasonic cutting utilizes high-frequency sound waves to slice through materials cleanly and precisely. It is commonly used for cutting plastics, fabrics, rubber. Ultrasonic cutting has numerous advantages over traditional cutting methods. It produces clean edge without producing any debris or dust, making it more environmentally friendly and improving the overall quality of the cut. It is also faster and more accurate than traditional cutting methods, with a cutting speed of up to 35000 cuts per minute.

Advantages:

Real time frequency automatic tracking display

Welding modes: time, energy, and grounding.

Amplitude division function

Welding amplitude 10%-100% adjustable (1% accuracy)

Amplitude compensation

Mold impedance analysis + protection

Overload protection

Voltage protection (input)

Transducer voltage protection

485 communication

The Ultrasonic Cutting Systems can easily cut to Food (Cakes, Pies, Fish, Snack, Meat, baked Cokkies, Chees, Vegatables, Candy, Confectionery, Ice Cream) Rubber, Tyre, Resin, Cloths Non-Woven, Film, Ribbon, CD, Foam, Cardboards, Bonded Textile, Craft items, Glass and composite material in which various products.

The Ultrasonic cutting horn, which is vibrating at a high frequency, creates a nearly friction-free environment between the horn and the product, its blade vibrate with an amplitude of 10-70 µm in the longitudinal friction. The vibration is microscopic, so it cannot be seen The movement repeats 20,000 – 40,000 times per seconds (20 Khz – 40 Khz ).





Applications for ultrasonic cutting and sealing are numerous. In the automotive industry, ultrasonic cutting is used to cut door panel fabrics, headliners, and carpets, while ultrasonic sealing is used to seal airbags and vehicle interiors. In the packaging industry, ultrasonic sealing is used to seal food packaging, medical packaging, and consumer goods packaging. Ultrasonic cutting is also used in the textile industry for cutting and shaping fabrics. Other applications include cutting and sealing disposable hygiene products, such as diapers and sanitary napkins.

In conclusion, ultrasonic cutting and sealing are two highly efficient and reliable technologies that are changing the face of manufacturing. They offer numerous advantages over traditional cutting and sealing methods, making them ideal for a wide range of applications. As technology continues to evolve, ultrasonic cutting and sealing will undoubtedly remain an important part of the manufacturing process.
