Automatic Ultrasonic Welding Tool Digital Generator Ribbons Label Cutting

Automatic Ultrasonic Welding Tool Digital Generator Ribbons Label Cutting

diy ultrasonic welder

continuous ultrasonic welding

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Ultrasonic Digital Generator
Work Type:
Pulse Work
Horn Width:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union
Supply Ability
Product Description

20Khz Ultrasonic cutting machine for Ribbons cutting & label cutting

The ultrasonic tape cutting machine is especially designed for cutting woven tape and care label, this machine can cut labelswith very high accuracy thanks to the color sensor, it's also able to cut any angle, with a touch of a button you can set any angleyou require, no mechanical settings needed. The angle settings for the front and back angles are independently controlled. Cut-length is accurate owing to a stepping motor. The label will be cut exactly at the marking due to the sensor modul which recognizes the cutting mark on the label.Cutting edge is soft due to using an ultrasonic system.The anti-static device is useful for cutting labels which generate a lot of static electricity, preventing cutted labels from clining to knife blade.Machine works automatically only by setting length and quantity.It stops automatically if materials run out during operation.memory Set-length, set-quantity & set-speed are not erased even if power is turned off & on.



Frequency 20Khz
Horn  Steel horn
Horn width 100mm customized
welding width depending on the horn
Generator  DG4200
Operate automatic
Air pressure 6 bar maximum
Speed 700pcs/Min (50MM)


The ultrasonic tape cutting is completed by high-speed friction and knife pressure.The cutting knife of the ultrasonic tape cutting machine is generally an acute angle below 60 °, so we must make accurate adjustments to the limit of the knife during the debugging process. The cutter and the ultrasonic steel mold are not completely in contact, and they are broken by the vibration and friction of the ultrasonic wave when pressurized, otherwise the cutter of the ultrasonic tape cutter will wear quickly under the impact of high pressure, and it will also affect the Ultrasonic mold life.



  • Easy to operate
  • Less power consumption
  • Optimum performance

Other Details:

  • Ultrasonic Label Cutting Machine achieves smooth cutting edges
  • It has become important and in high demand for Export industries
  • It is designed into cutting and folding combination function 3 kinds of folding are possible Central or Middle fold, end fold and Manhattan fold mainly used to cut labels made of satin, polyester and now woven.

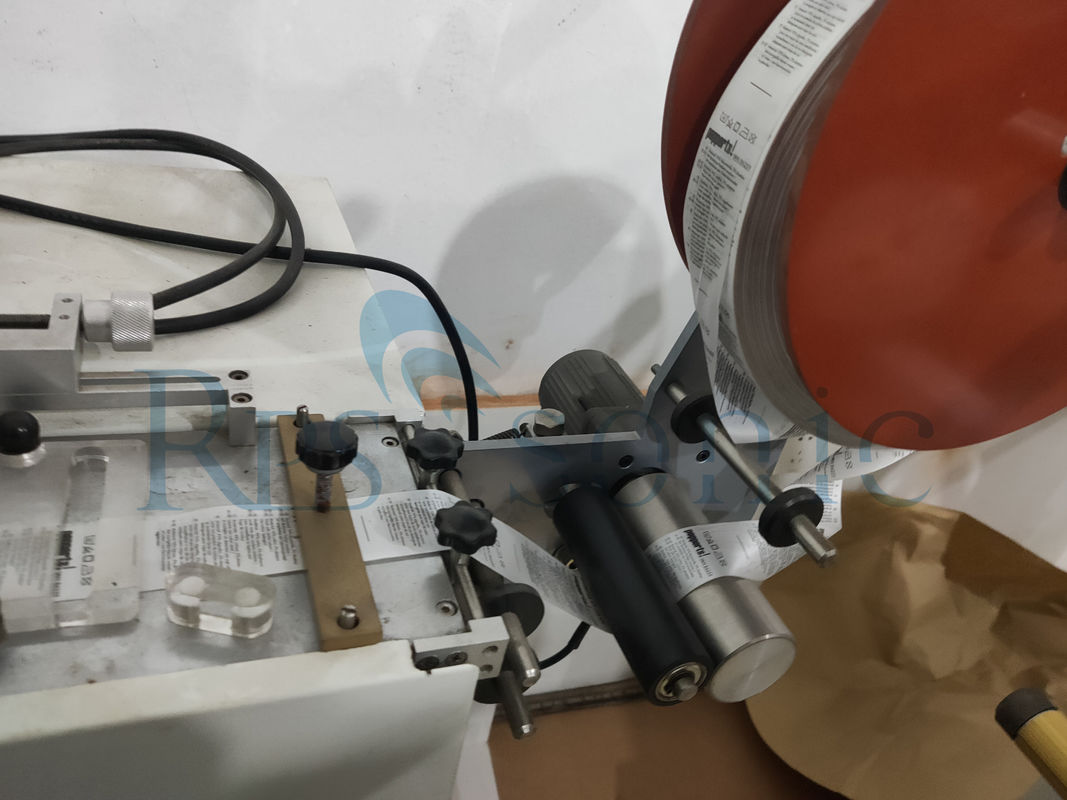

Automatic Ultrasonic Welding Tool Digital Generator Ribbons Label Cutting 0

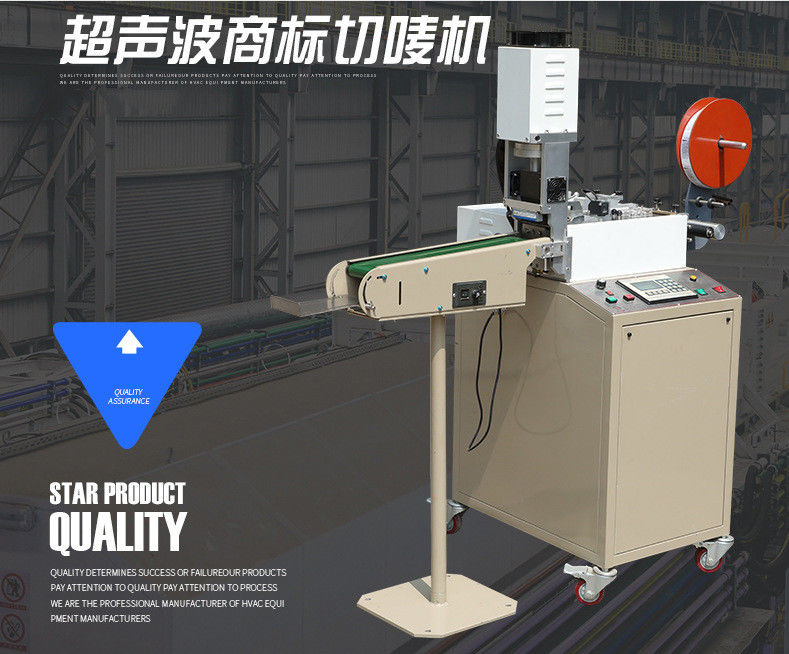

Automatic Ultrasonic Welding Tool Digital Generator Ribbons Label Cutting 1
