Durable Ultrasonic Cable Stripping Machine For Mineral Insulated Cable Strip

Durable Ultrasonic Cable Stripping Machine For Mineral Insulated Cable Strip

ultrasonic welding device

continuous ultrasonic welding

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-MI20

Contact Us

Request A Quote
Product Details
Name:
Ultrasonic MI Cable Probe
Frequency:
20khz
Power:
700W
Genertaor:
Digital Generator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
CARTON
Delivery Time
5~8DAYS
Payment Terms
T/T, Western Union
Supply Ability
200PCS/MONTH
Product Description

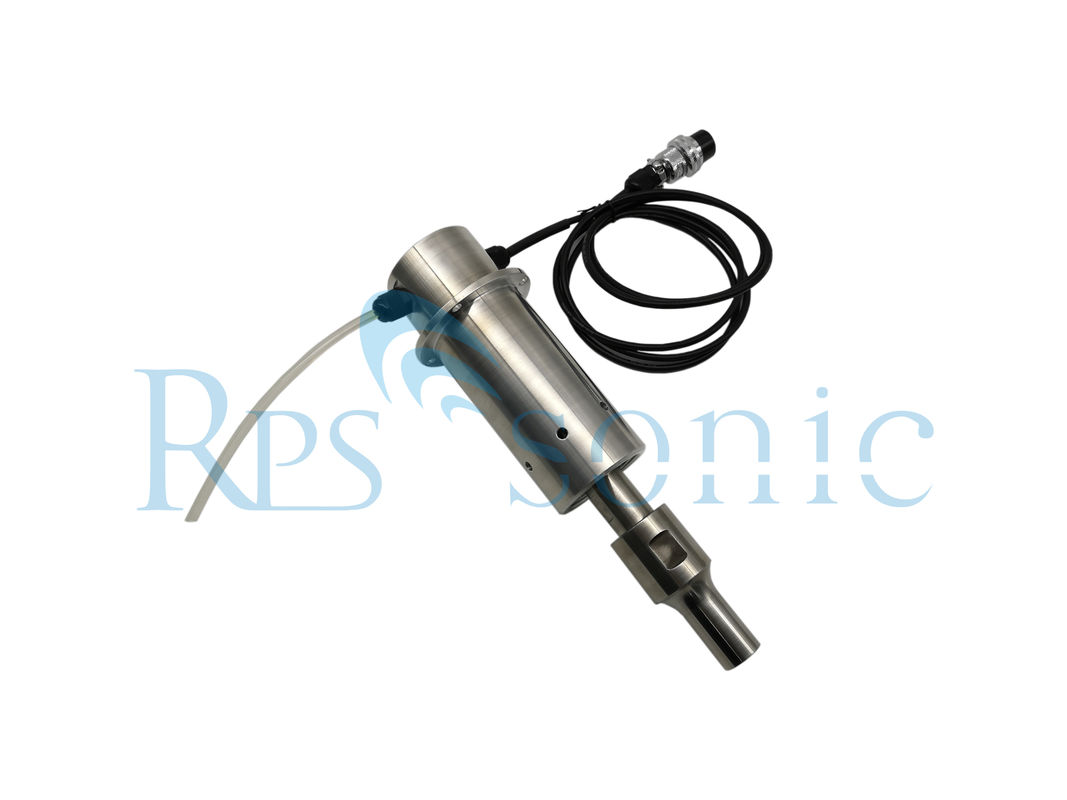

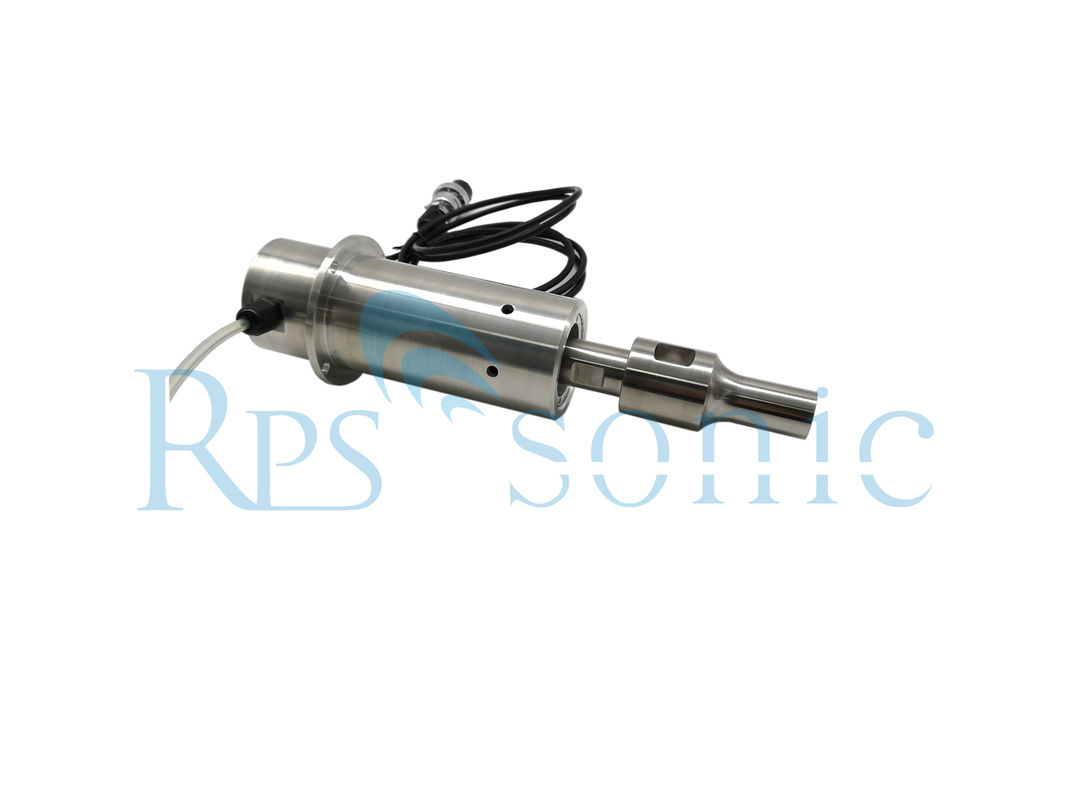

20khz Ultrasonic MI cable Stripper for Mineral Insulated Cable strip



Specifications:



Model MI20
Frequency 20 KHz
Peelable cable diameter 0.8-12 mm
Length of Wire Stripping for One Time 30 mm
Startup Mode Manual or foot Switch
Power 700 W
Voltage 220V 50Hz 3A



Ultrasonic Cable Stripping Machine uses powerful pulses of Ultrasonic energy to strip the sheath from mineral insulated cable.

The ultrasonic energy transfers to the insulation on contact and de-compacts and liquefies the powder, which escapes from the end of the cable.Ultrasonic cable stripping machine is used for mineral insulated cable stripping equipment. Its clever use of ultrasonic energy to the role of the characteristics of both fire cable insulation slag shattered discharge, but also to protect the cable core does not suffer any harm. Design of the stripping machine is compact, reliable, high efficiency, high speed, low power consumption, can be adapted to a variety of mineral insulated cable stripping

The result is that all the powder in the stripped section is cleanly removed leaving the conductors completely untouched.

The whole action is completed in seconds (in the case of small cables in a fraction of a second).

All cable sizes can be accommodated from 1.0mm (0.04”) to 6.0mm (or ¼”)

The only preparation needed prior to stripping is to ring through the sheath at the break point (up to 25mm from the cable end).

The machine is supplied with a ringing tool and a pair of electronic side cutting pliers for the smaller sizes.





APPLICATION:

Ultrasonic MI cables jacket end stripper can work on all cables and optical cables

with mineral isolated shells.

* Fire retardant cable or mineral insulated cable manufacturers

* Fireproof cable or mineral insulated cable construction unit or the use of units

* Optical cable production units

* Optical cable construction unit or the use of units

* Thermocouple manufacturers
