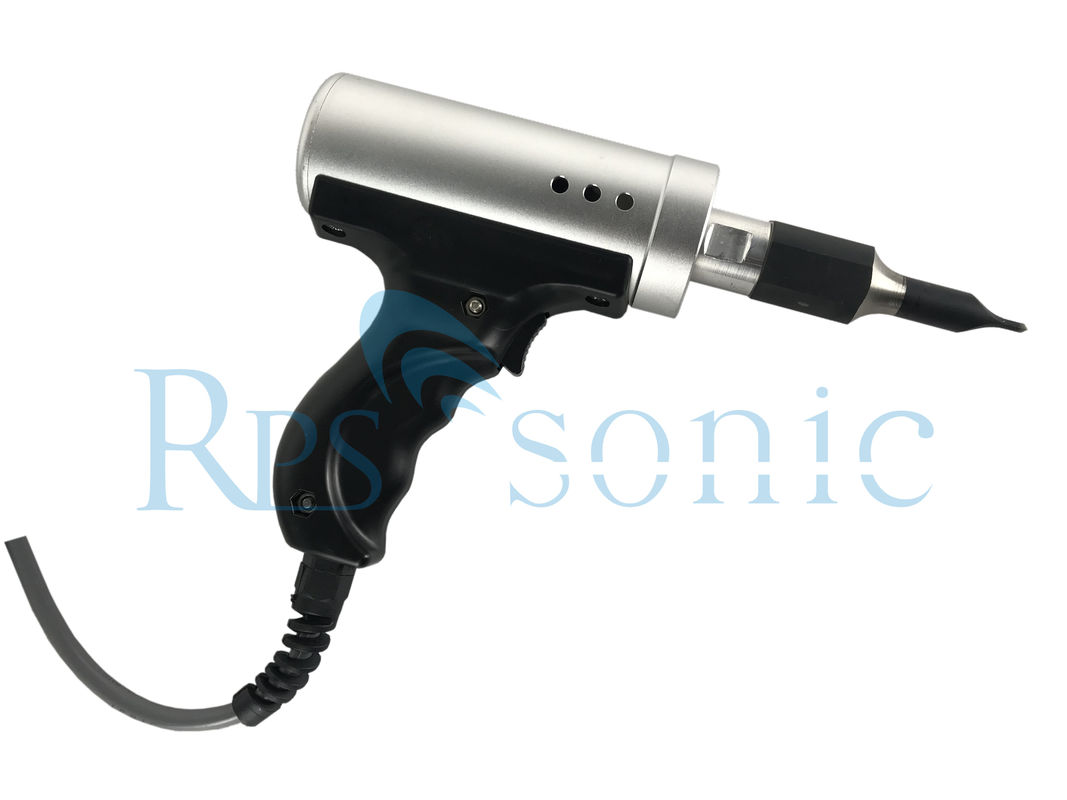

Handheld Fabric Ultrasonic Spot Welding Cutting And Sealing High Efficiency

Handheld  Fabric Ultrasonic Spot Welding Cutting And Sealing  High Efficiency
Handheld  Fabric Ultrasonic Spot Welding Cutting And Sealing  High Efficiency Handheld  Fabric Ultrasonic Spot Welding Cutting And Sealing  High Efficiency Handheld  Fabric Ultrasonic Spot Welding Cutting And Sealing  High Efficiency

Large Image :  Handheld Fabric Ultrasonic Spot Welding Cutting And Sealing High Efficiency

Product Details:
Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: RPS-SC35
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1DAYS
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/MONTH

Handheld Fabric Ultrasonic Spot Welding Cutting And Sealing High Efficiency

Description
Frequency: 35khz Power: 500W
Horn: 8mm Horn Material: Steel Horn
Generator: Digital Generator Weight: 5kg In Totall
High Light:

portable ultrasonic welder

,

ultrasonic welding equipment

35khz hand held ultrasonic cutting and sealing equipment for fabric cutting





Parameter:

FREQUENCY 35Khz
POWER 500W
INPUT AC110V/AC220V, 50/60Hz
POWER CONTROLLER  continuous
GENERATOR WEIGHT 5kg
VIBRATION PARTS WEIGHT 1KG
CUTTING BLADE  customized ceramic blade
COOLING DEVICE compressed air mouth can be installed.
CABLE LENGTH 3M



Introduction:

35khz Ultrasonic cutting and sealing equipment for synthetic fabrics is continuously on the rise even in fields unrelated to the textile industry. Some of them include: disposable items, filtering components, outdoors and medical fabrics.

This machine can be operated manually and it has been designed to perform precise linear cuts on synthetic fabrics. It is possible to connect it with any type of 35khz kHz ultrasonic generator, plus it is equipped with a transducer with piezoelectric ceramics and a machete shaped ultrasonic sonotrode. Its structure is devised to be mounted on workbenches with the assistance of two wheels installed at its base, allowing for its free sliding along the supporting ring.

Cutting with ultrasound technology may be manual, semi or fully automated. They are usually tailored to meet each client’s needs and production standards. Ultrasonic sealing can be used on drapes made of just 25% synthetic fibers, such as polyester, viscose or rayon.Ultrasonic cutting edge sealing machine consists of the ultrasonic generator(drive power) and ultrasonic host (cutting) two parts. Through the Ultrasonic high-frequency vibration, first adhesive fabric, and then cut the fabric and cut edge.To be installed on machines or lines, cutting the fabric with no scattered side, no hardening, smooth and beautiful, operation safe and reliable. Mainly used in chemical fiber textile, geotextile, woven cloth, plastic film and non-woven processing and weaving industry, woven fabric containing polypropylene, polypropylene thermoplastic material composition.

Ultrasonic sealing films and fabrics: finds application in the apparel, non-woven, packaging and textiles industries.
The materials may be 100% synthetic, or fibre blends with up to 35% non- thermoplastic fibre content.

Materials which can be processed are polyester, polyethylene, polypropylene, rigid thermoplastics, thermoplastic polyurethane, some vinyls and thermoplastic coated foils and papers.





Advantages:

– Easy of use and steady production results
– It seal off drape borders immediately
– Avoiding any unwanted fraying
– Efficient space optimization
– Guarantees quick, clean solutions without emitting hazardous fumes.



Application:

1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric

3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.

4. For tape and film cutting .

5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For the automotive industry cutting





Handheld  Fabric Ultrasonic Spot Welding Cutting And Sealing  High Efficiency 0
