High Frequency Earloop 20khz Ultrasonic Welding Machine

High Frequency Earloop 20khz Ultrasonic Welding Machine

earloop Ultrasonic Welding Machine

20khz Ultrasonic Welding Machine

ultrasonic earloop welding machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Separate Excitation
Ultrasonic Digital Generator
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
T/T, Western Union
Supply Ability
Product Description

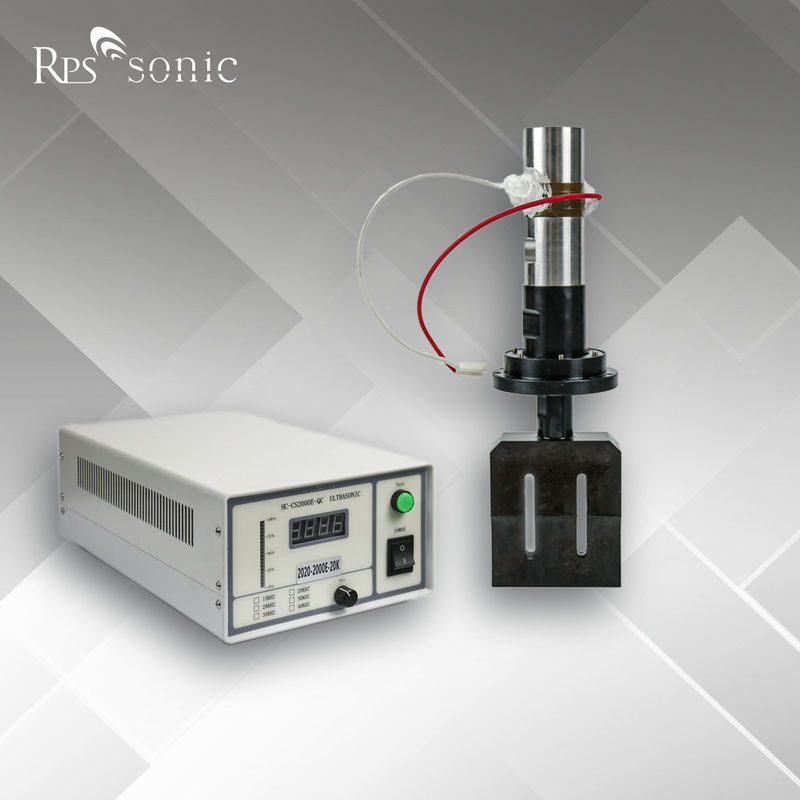

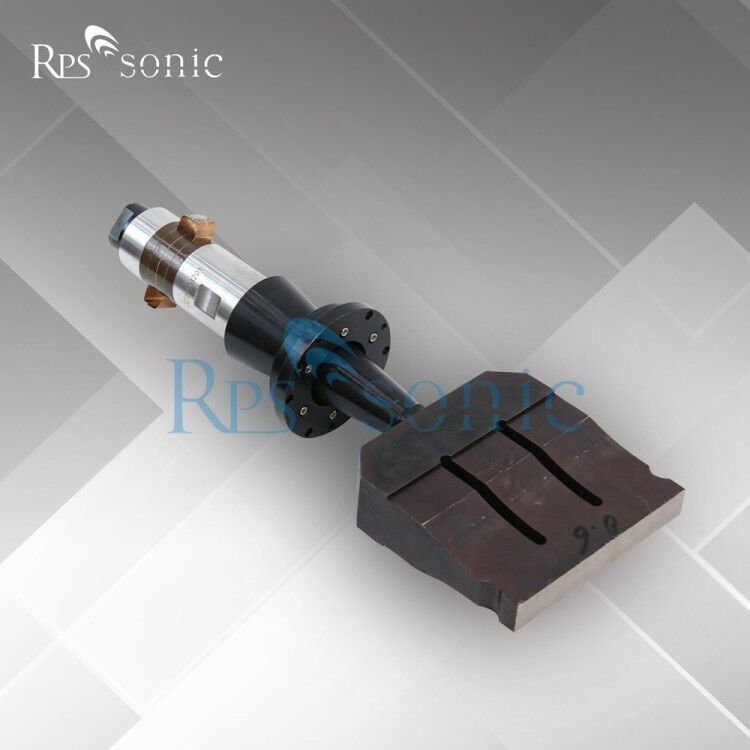

20Khz 2000W ultrasonic welding system for earloop welding mask welding


Item Parameter
Power 2000W In max
Frequency range ±1khz
Operating temperature ≤65ºC
Frequency 20khz
Amplitude adjust 10%~90%
Voltage 220V
Circuit Digital,separate excitation

Where is ultrasonic welding used?

Sonics offers a complete line of specialized ultrasonic equipment and components for face mask and other PPE textile applications such as continuous bonding or slitting; punching; plunge bonding; and hook and loop (Velcro) bonding. Using ultrasonics for these processes provides superior performance in terms of speed, safety, cost-effectiveness and smoothness of finished edges. Applications include face masks, surgical gowns, protective face shields and many others.
Sonics manufactures a comprehensive range of medical-device capable plastics welding equipment, tooling and components, from hand-held units to bench model presses to ultrasonic kits for OEM installation. Ultrasonic plastic welders, including ElectroPress welding systems with superior precision control, staking/inserting machines, and custom tooling and fixtures are available.


Principle of ultrasonic welding generator:
An ultrasonic welding generator is for generating and supplying ultrasonic energy to an ultrasonic transducer. The purpose is to convert our city power (220V or 110V, 50Hz or 60Hz) into a high-frequency AC signal that can be matched with an ultrasonic transducer. This signal can be a sinusoidal signal or a pulse signal.
The perfect ultrasonic generator has a feedback link, which mainly provides the following two aspects of feedback signals.
Output Power signal:
When the input voltage of the ultrasonic generator changes, the output power of the generator also changes. Will make the mechanical vibration of the ultrasonic transducer unstable, resulting in poor working results. Therefore, the output power needs to be stabilized, and the power amplifier is adjusted accordingly through the power feedback signal, so that the power amplification is stable.
Frequency tracking signal:
When the transducer works at the resonance frequency, it has the highest efficiency and the most stable operation.
The resonant frequency of the transducer will change due to assembly and work aging. If the changed frequency is only drifting and not much changed, the frequency tracking signal can control the signal generator, so that the frequency of the signal generator can track the resonant frequency of the transducer within a certain range, so that the generator works in the best state.


  • Easy to operate
  • Less power consumption
  • Optimum performance

Service and shipment:

  • Warranty one year for transducer.
  • You can contact us for technical inquiry any time.
  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
  • We supply customized products service for small quantity also.
  • Shipment by FED-EX /DHL/UPS/TNT
