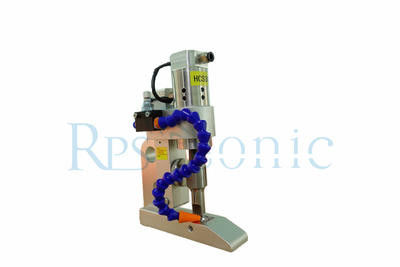

4mm 40khz Fast Simple and Efficient Ultrasonic Cutting Device And Sealing Equipment

4mm 40khz Fast Simple and Efficient Ultrasonic Cutting Device And Sealing Equipment

40khz Ultrasonic Cutting Device

4mm ultrasonic cutting device

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-C40-T

Contact Us

Request A Quote
Product Details
Frequency:
40kHz
Weight:
5kg
Horn Width:
2~4mm
Outer Dimension (mm):
120*120*380
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
200PCS/MONTH
Product Description

40Khz Ultrasonic Cutting And Sealing Equipment for Processing And Trimming The Edge of The Blanke

What's the principle of ultrasonic cutting?

The principle of an ultrasonic cutter is completely different from conventional one. It uses the energy of ultrasonic to melt the material to be cut. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause any chipping or breakage. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.

The basic structure of the ultrasonic cutting machine is an ultrasonic transducer, a horn, a cutting blade (tool head), and generator. The ultrasonic generator converts the commercial power into a high-frequency high-voltage alternating current and transmits it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to amplify the output amplitude of the transducer. The cutting blade (tool head) further enlarges the amplitude on the one hand and focuses the ultrasonic wave. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting the material can be achieved.

Similar to conventional cutting, the basic components required are a cutter and an anvil, and the ultrasonic cutter has two basic structures. Depending on the location of the ultrasonic application, we may wish to divide it into an ultrasonic cutter cutter and an ultrasonic cutter cutter.



Introduction:

Ultrasonic Slitting/Sealing,40Khz Ultrasonic Cutting And Sealing Equipment for Processing And Trimming The Edge of The Blanket,Ultrasonic slitters cleanly cut and seal the edges of synthetic or blended fabrics, eliminating the disadvantages of hot wire or rotating knives. Fraying, unraveling, or beading along the cut edge are eliminated.

Slitters may be mounted on a loom to cut the non-selvedge edge of woven fabric. Equipment is available to operate at the slow speed of weaving looms without burning or beading me fabrics. With special framework and motor drive, crosscuts can be made on the loom.

Parameter

Frequency 40Khz
Frequency adjustment Auto-tracking type
Max. power output 300W
Power output Infinitive adjustment
Power supply AC200V 50/60Hz
Outer dimension (mm) 120*120*380
Weight 5kg
Horn width 2~4mm

Application areas

Ultrasonic cutting sewing equipment is mainly suitable for fabric, suitable materials such as butyrate, cellulose, nylon, polyester, polyethylene, polypropylene, PVC and other materials. It is also suitable for a wide range of tubing in automotive, metal, pharmaceutical, food, cosmetic, medical and scientific applications.

Advantage

Cutting the fabric with no scattered side,no hardening,smooth and beautiful
Can be hand-held or installed on machines and line,easy operation.
Power adjustable,can connect with the client's control system
Safe separation and sealing of the workpiece during operation
Beautiful and closed cutting edge
Special fabric cutting blade,cutting high quality,easy to replace
Completely replace the resistance heat knife cutting process,
energy saving and environmental protection

BENEFITS OF ROBOTIC ULTRASONIC CUTTING



4mm 40khz Fast Simple and Efficient Ultrasonic Cutting Device And Sealing Equipment 0

  • Process flexibility

  • Enhanced precision

  • Cleaning edages

  • cost reduce

  • Energy efficient

  • worker safety

  • Enviroment Friendly

  • No water waste disposa
