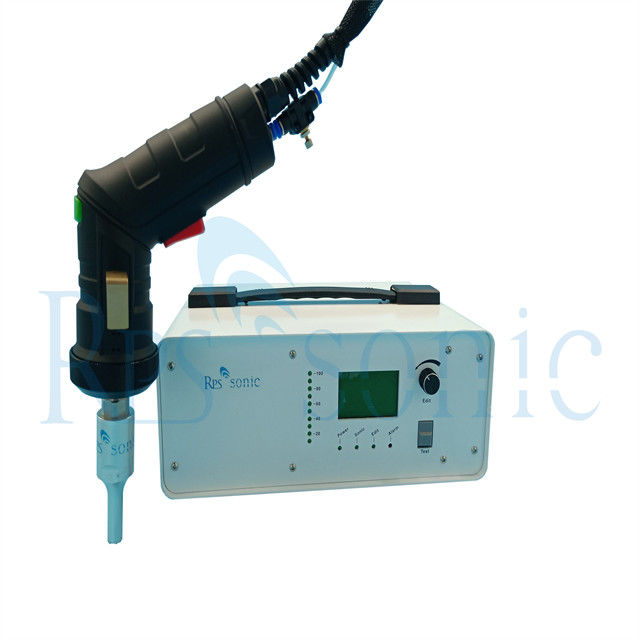

600w 35Khz Adjustable Handheld Ultrasonic Welder For PP PE Welding

600w 35Khz Adjustable Handheld Ultrasonic Welder For PP PE Welding

Adjustable Handheld Ultrasonic Welder

600w Ultrasonic Spot Welding System

Titanium Horn Handheld Ultrasonic Welder

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-SW35

Contact Us

Request A Quote
Product Details
Frequency:
35Khz
Power:
600w
Horn Material:
Titanium
Horn Size:
Customized
Type:
Adjustable
Weight:
7kg
Generator:
Digital
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

Handheld 35Khz Adjustable ultrasonic spot welding machine for PP/PE welding



Parameter



Item Parameter Advantage: Application

28Khz ultrasonic hand welder

Straight type

▪ 28Khz 800W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate.

2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it’d using life.

3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate.

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.





28Khz ultrasonic hand welder

Gun type

35Khz ultrasonic hand welder

Straight type

▪ 35Khz 500W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.



35Khz ultrasonic hand welder

Gun type

For better application , it is better share all the material information with me, the material, thickness, operate way, speed requirements before order .

We also supply 20Khz 40Khz ultrasonic hand-weld welder.



Description



Ultrasound is a sound wave with a frequency higher than 20000 Hz. It has good directivity, strong penetrating ability, easy to obtain concentrated sound energy, and spreads long in the water. It can be used for distance measurement, speed measurement, cleaning, welding, and stone crushing. , Sterilization, etc. There are many applications in medicine, military, industry, and agriculture. Ultrasound gets its name because the lower limit of its frequency is greater than the upper limit of human hearing.

Ultrasonic plastic spot welding machine uses the characteristics and principles of ultrasonic to produce a plastic welding equipment, small in size, light, and versatile. Ultrasonic spot welding machines are divided into: ultrasonic spot welding machine, ultrasonic plastic spot welding machine, riveting spot welding machine, ultrasonic metal welding machine, ultrasonic metal spot welding machine, ultrasonic welding machine, etc.

Ultrasonic plastic spot welders are often used in industrial production. It emits a certain frequency of ultrasonic waves to increase the surface temperature of the two parts that need to be combined and melt quickly. Then stop the ultrasonic wave, reduce the surface temperature of the parts, and make them join together; it not only improves the efficiency of industrial production, but also provides convenience for the workers. So what are the components of the ultrasonic electric welding machine, such a high-efficiency industrial production machine? What is the principle of the ultrasonic spot welding machine? Let me understand the relationship between the ultrasonic plastic spot welding machine and the principle of the ultrasonic spot welding machine together with the editor. Knowledge.

The welding principle of the ultrasonic plastic welding machine is to convert the electric energy into 15k or 20k high frequency current through the ultrasonic generator (ultrasonic electric box), and then use the transducer to convert the current into the same frequency mechanical motion, and then transmit it to the ultrasonic wave through the amplitude modulator Welding head.



Feature



1. Strong power and good stability;

2. Exquisite design, easy to carry, convenient for outdoor work;

3. The product has high power and strong output;

4. The noise is low and the working environment is environmentally friendly;



Application



1. Medical hygiene: welding of medical containers, welding of surgical instruments, welding of dressings and bandages, baby hygiene products, feminine hygiene products, welding of paper diapers, etc.
2. Lighting industry: plastic welding for lighting
3. Telecommunications industry: welding of cables and plugs, welding of electronic instruments, welding of outer covers, welding of sensors and switches, etc.

4. Electronic products: recording, tape cassettes and core wheels, disk shells, mobile phone battery panels and rectifier transformers, switch sockets, remote controls, electronic mosquito swatters, imitation bottle caps, etc.
5. Consumables industry: printing consumables welding, communication equipment welding, computer peripheral equipment welding

6. Household appliances: electronic clocks, electric blow dryers, steam iron water tanks, electric kettles, computers, etc.

4. Daily necessities: stationery box, aquarium ruler, folder center seam and shell, pen holder, cosmetic box shell, toothpaste tube seal, cosmetic mirror, thermos cup, lighter, seasoning bottle and other sealed containers.

5. Automotive industry: automotive interior welding, automotive lamp welding, engine room welding, functional parts welding, etc.

6. Food processing: soft beverage packaging welding, PET material packaging welding, film packaging welding, paper cup & top cover welding

7. Stationery toys: children's plastic toys, stationery boxes, document bags, etc.

8. Textile and clothing: plastic cutting, edge banding, etc.
