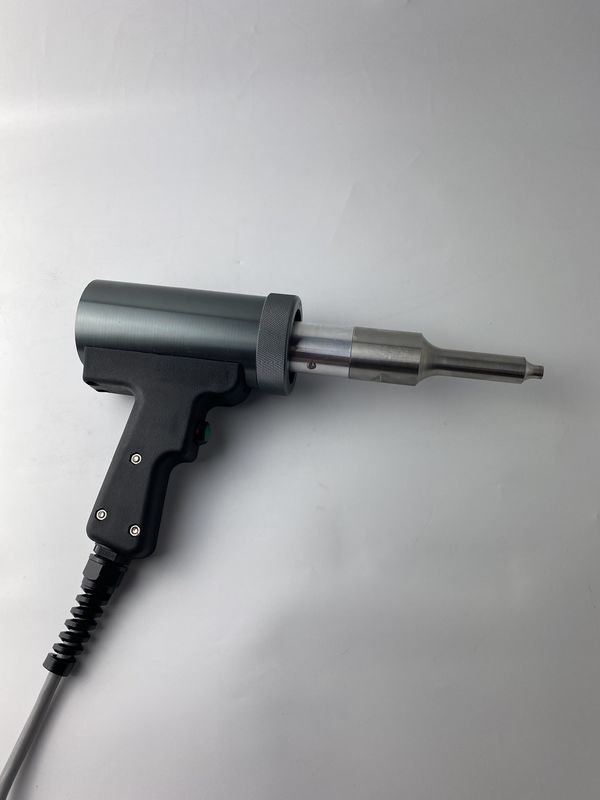

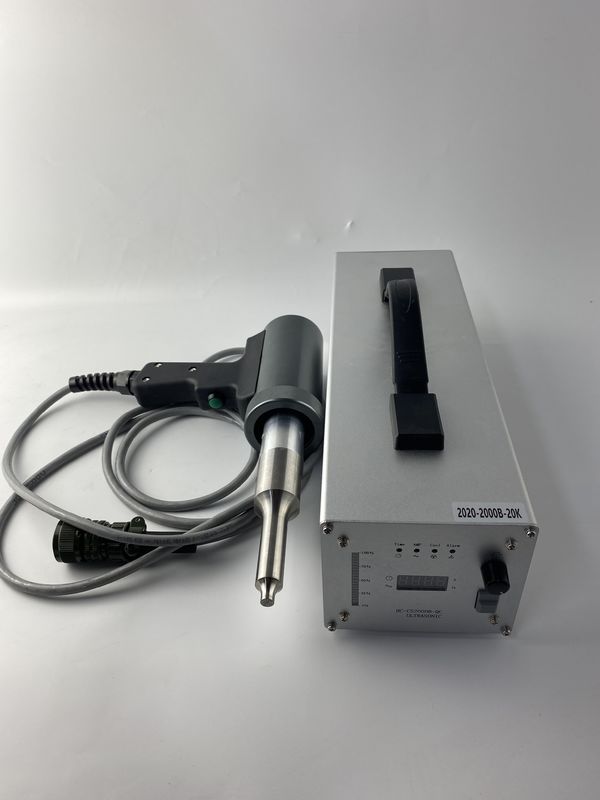

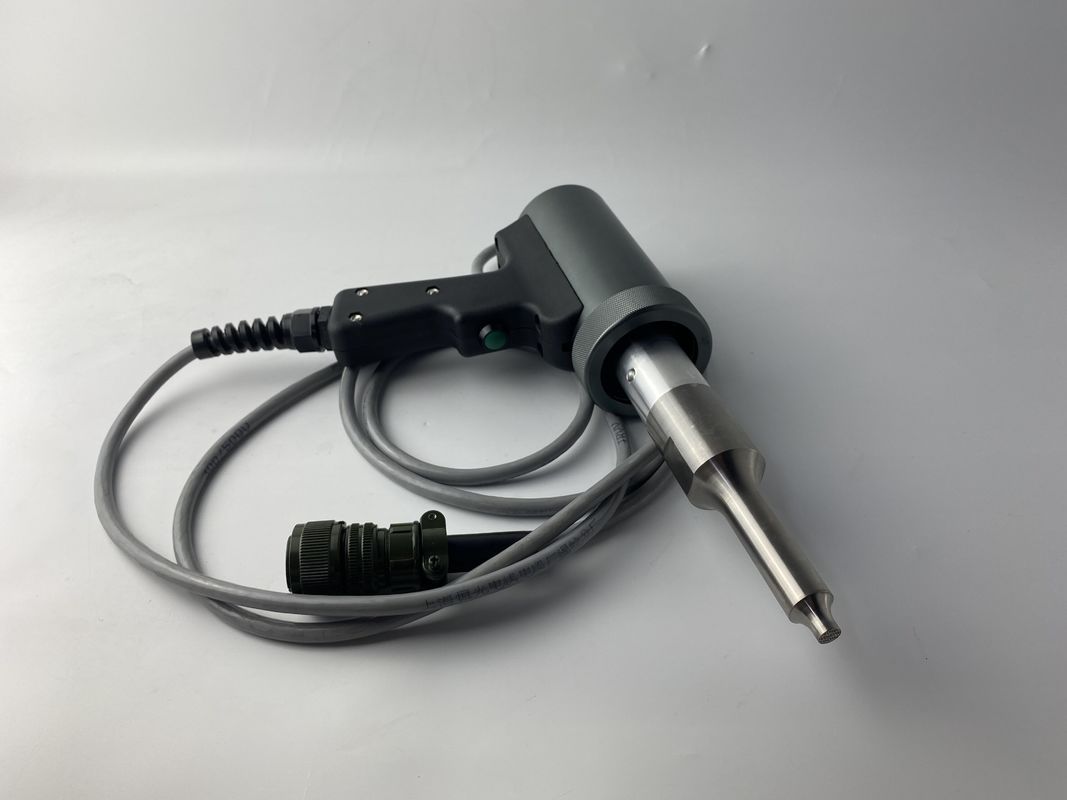

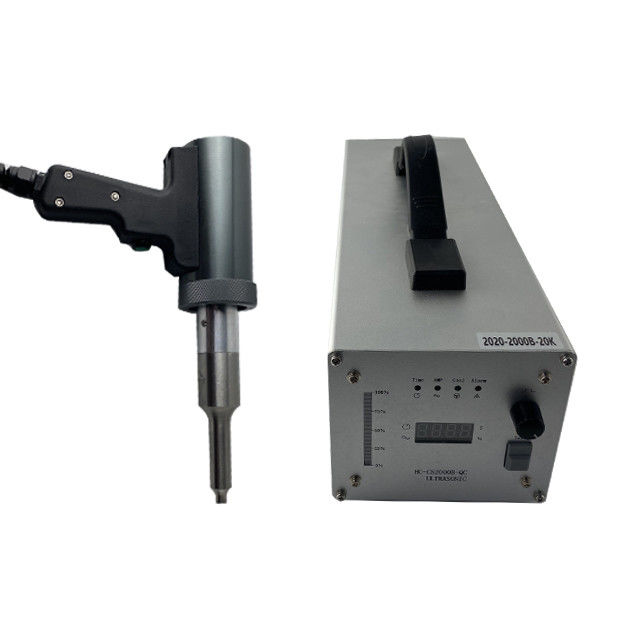

Handheld Titanium High Power 20Khz Ultrasonic Spot Welding For PP Welding

Handheld Titanium High Power 20Khz Ultrasonic Spot Welding For PP Welding

Titanium Handheld Ultrasonic Welder

20Khz Ultrasonic Spot Welding

Handheld Ultrasonic Spot Welding

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-SW20

Contact Us

Request A Quote
Product Details
Frequency:
20Khz
Power:
1000w
Horn Material:
Titanium
Horn Size:
Customized
Weight:
8kg
Generator:
Digital Type
Power Supply:
220V
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

Handheld High power 20Khz Ultrasonic spot welding machine for PP welding



Parameter



Item Parameter Advantage: Application

28Khz ultrasonic hand welder

Straight type

▪ 28Khz 800W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate.

2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it’d using life.

3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate.

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.





28Khz ultrasonic hand welder

Gun type

35Khz ultrasonic hand welder

Straight type

▪ 35Khz 500W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max.



Straight type suit for both hand /machine operate.

Gun type suit for hand operate.



35Khz ultrasonic hand welder

Gun type

For better application , it is better share all the material information with me, the material, thickness, operate way, speed requirements before order .

We also supply 20Khz 40Khz ultrasonic hand-weld welder.



Description



Ultrasonic spotwelding is used predominantly when, for instance, flat mouldings without weld preparation (ED) have to be welded (e.g. semi-finished products, thermoformed, blow moulded, extruded and large-surface mouldings).

The tip of the sonotrode penetrates through the upper part into the lower part. Heat is produced on the contract surfaces of the mouldings, as a result of which the material is plasticised and welded. The expelled plastic flows upwards and forms a ring shaped elevation. The back of the lower part remains largely free of marks. The mouldings can be fixed appropriately by hold-downs or clamping devices. The thickness of the moulding adjacent to the sonotrode should not exceed 8 mm. Spot welding can also be carried out with a moveable ultrasonic hand welding apparatus (welding gun).

The HandyStar Energy can be used for a multitude of applications. Perfect for manual workstations or as an entry-level device. A solution for your ultrasound application. These are typically spot welding, riveting, crimping and cutting. With 600 W peak power and 375 W continuous power, it can also be used for all other 35 kHz applications.
The HandyStar Energy is based on the proven MAG Multi-Application Generator and, in addition to the manual mode, also masters the common welding modes such as time and energy. Converter cooling by compressed air is integrated and is switched on automatically if required. This minimizes the consumption of cooling air and your operating costs.



Areas of application



The HandyStar Energy is designed for simplicity and cost efficiency.
It therefore meets the requirements for manual workstations.
It is also the ideal device for test laboratories.
Developed applications can easily be combined be integrated with the identical generator MAG into production lines.



Features and benefits



Robust design
High reliability
Low maintenance requirements
Quick application changes
16 storable jobs
3 welding modes (energy, time, manual)
Weld counter
Demand-controlled cooling
