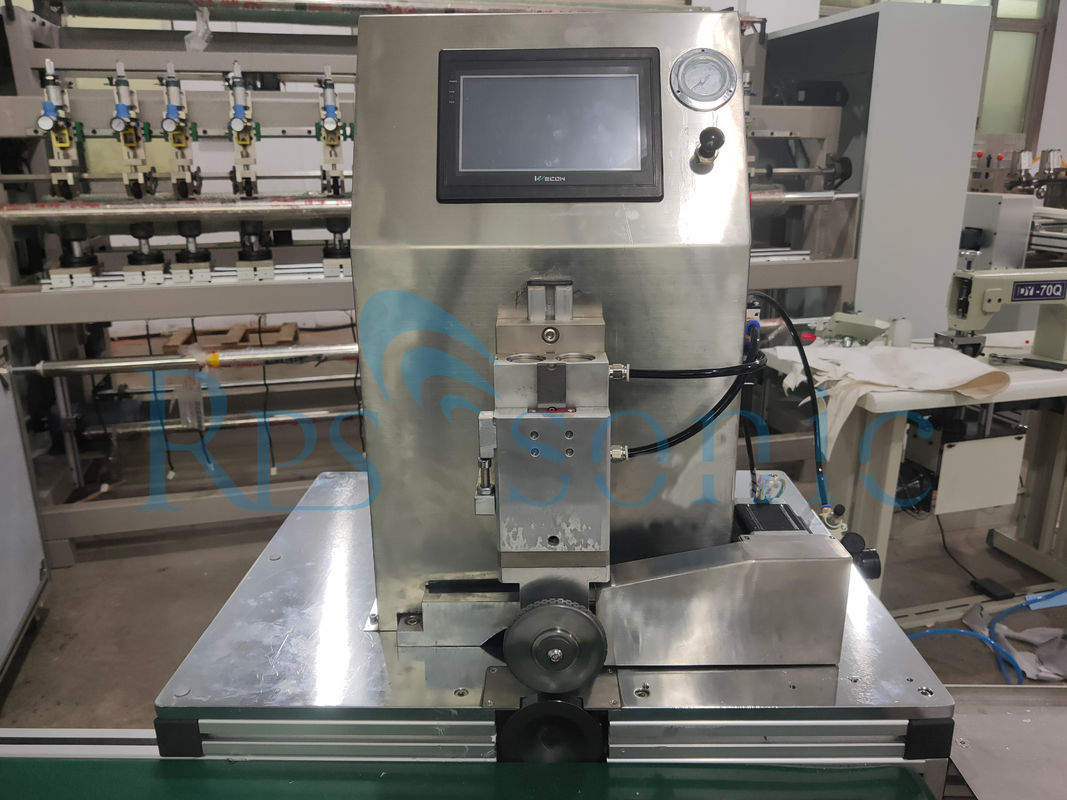

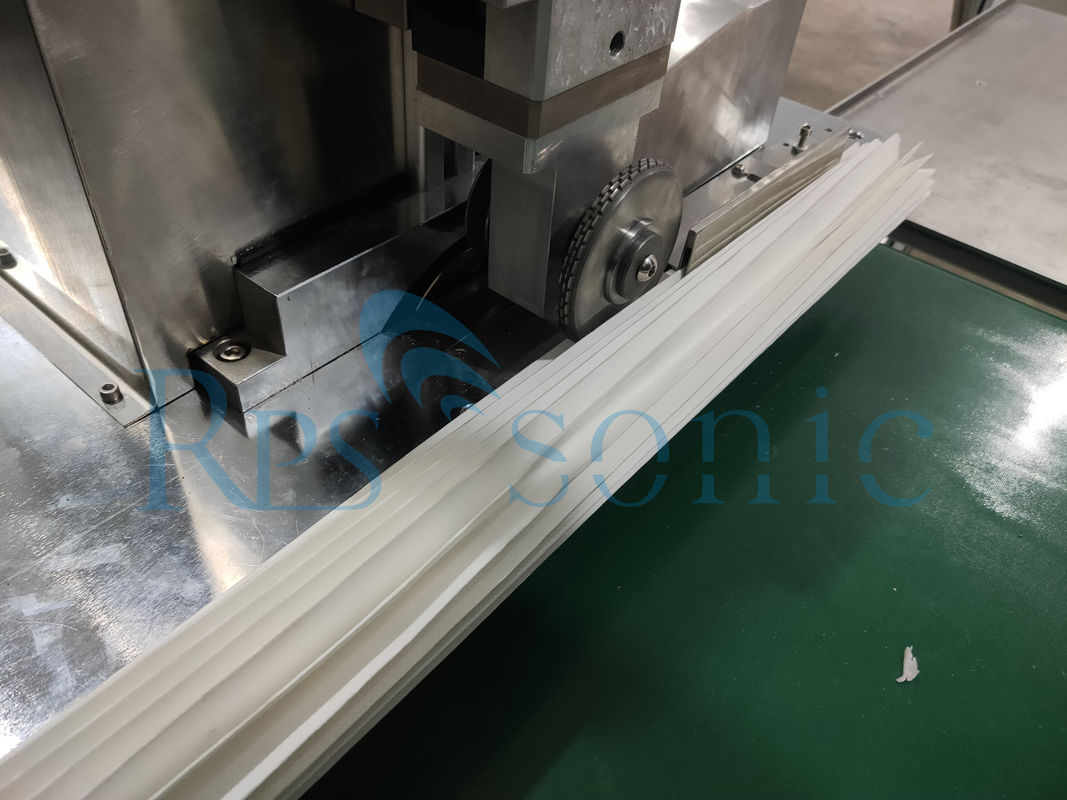

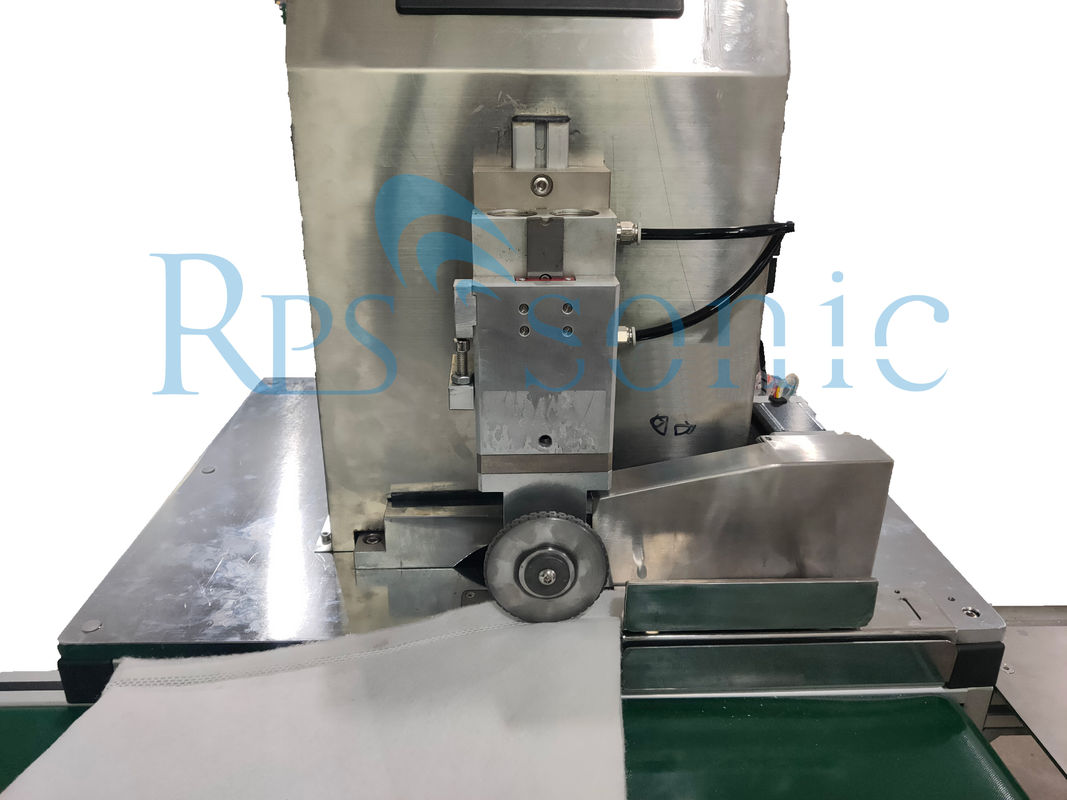

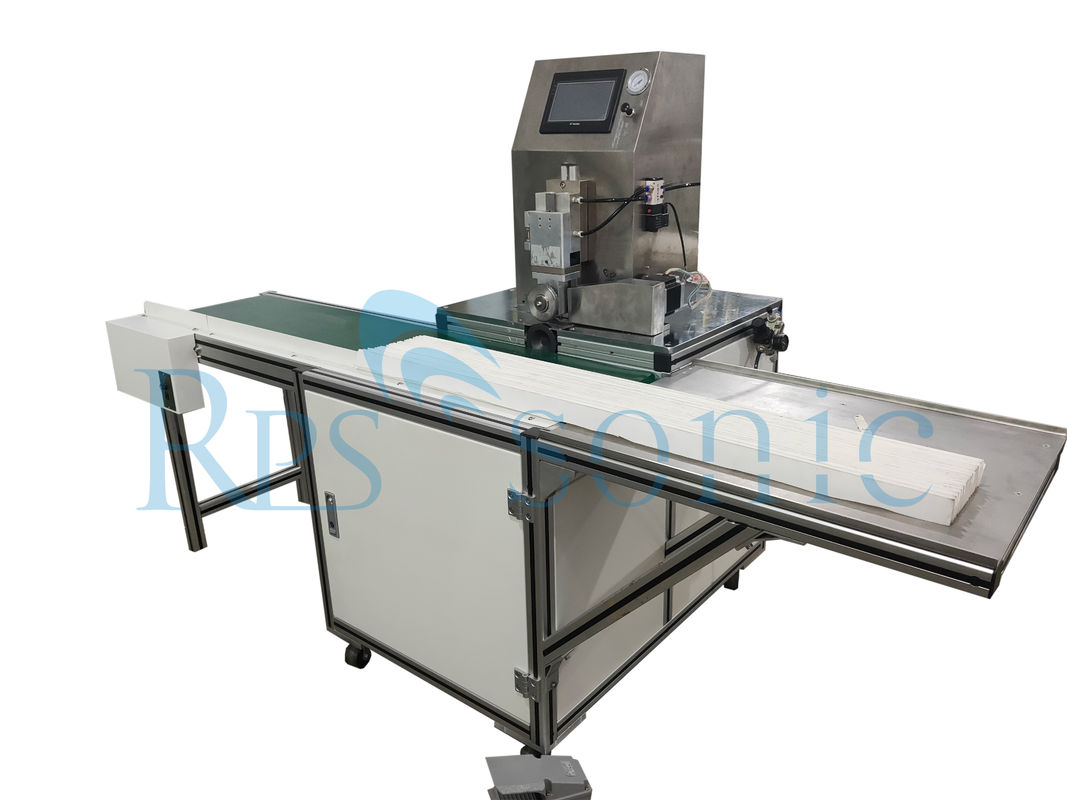

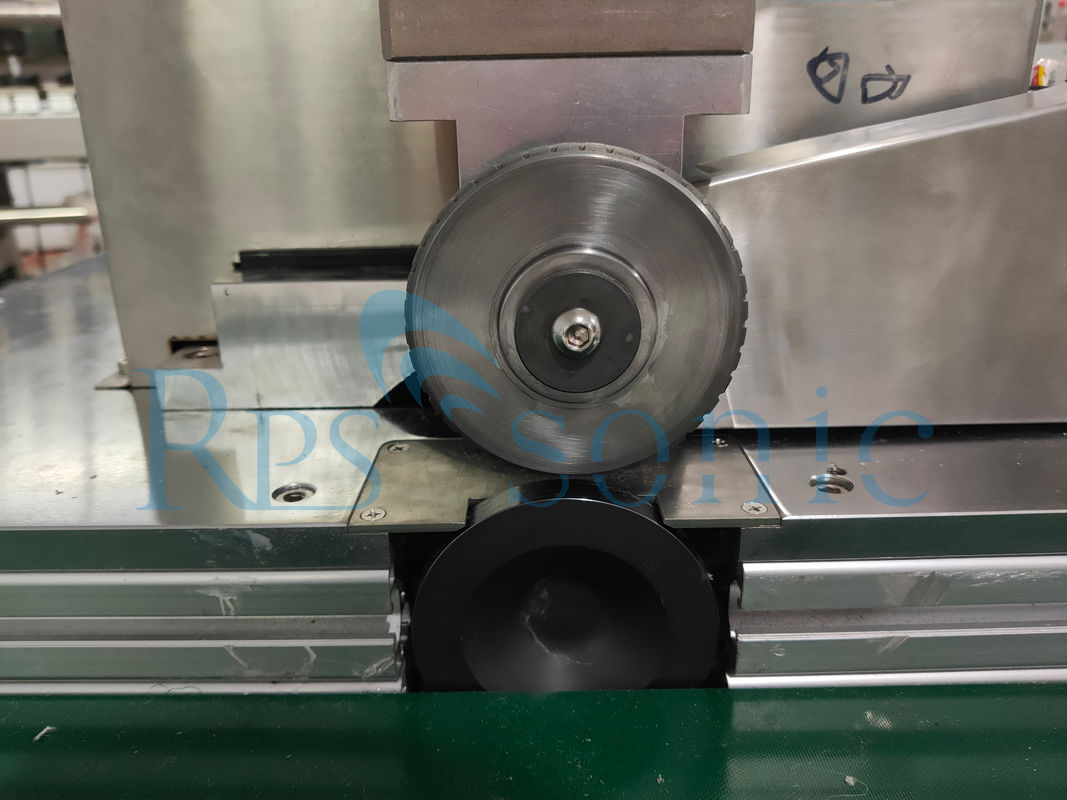

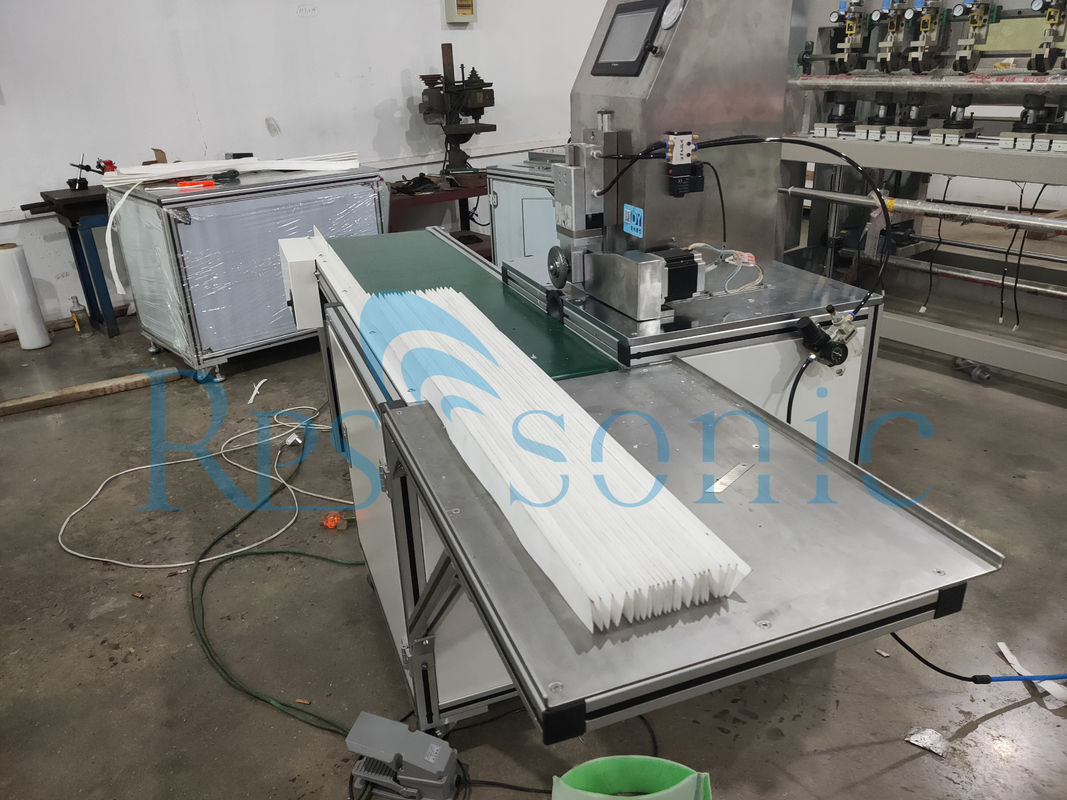

Rotary Horn 20kHz Ultrasonic Welding Machine For Pleated Sediment Water Filter

Rotary Horn 20kHz Ultrasonic Welding Machine For Pleated Sediment Water Filter

Rotary Horn Ultrasonic Welder Machine

20m/Min Ultrasonic Welding Machine

Water Filter Ultrasonic Welding Machine

Place of Origin:

China

Brand Name:

Rps-sonic

Certification:

CE

Model Number:

RPS-FW20

Contact Us

Request A Quote
Product Details
Frequency:
20Khz
Power:
2000w
Horn Material:
Titanium
Welding Width:
0-10mm
Speed:
20m/Min
Weight:
150kg
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
CARTON
Delivery Time
1DAYS
Payment Terms
T/T
Supply Ability
200PCS/MONTH
Product Description

20kHz 2000w Ultrasonic Welding Machine For Pleated Sediment Water Filter Welding

20kHz Ultrasonic Welding Machine for pleated Filter Welding with Rotary Horn





Parameter



ITEM PARAMETER
Frequency 20Khz
Horn Rotary horn
Horn width 25mm in max
welding width 2mm~25mm
Horn material Steel
Generator DG4200
Operate Touch screen PLC control
Air pressure 6 bar maximum



Description



Ultrasonic welding is an industrial process whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics and metals, and especially for joining dissimilar materials.

Rotary ultrasonic bonding is the process of using high-frequency compression/relaxation of materials against specially designed anvil patterns that cause them to heat at the molecular level and melt. This process enables the materials to flow around the shapes of the anvil and adhere to each other and to other materials that are in the web matrix.

Fastest sealing speed in the industry with focused energy and the “flywheel effect” of the rotary system. Cross or end seal through product or residue without the worry of burning or contaminating the packaged product. Reduce scrap rate by bonding materials with localized heat input, programmable control, and failed seals during shipment are a thing of the past. Packages are sealed strong enough to survive temperature and air pressure changes during transit for distribution.

Our patented Rotary Ultrasonic bonding technology provides high-speed continuous or intermittent bonding of nonwoven materials. Rotary ultrasonic bonding is suitable for many different applications including fin and lap sealing, tube forming, bonding, feature attachment, embossing, sheet lamination, cutting, and slitting.



Features



Save time by eliminating bagging of your sealing unit in washdown environment
Uniform Melt & Hermetic Seal with molecular bonding
GO GREEN by reducing energy consumption and by easily sealing recyclable and paper based materials

Higher productivity with high speed rotary technology (800 meters/minute) and lower process delay time
Reduces material weight by eliminating adhesive
Energy savings by eliminating adhesive dispensing systems (heater and pump)



Application



1.Ultrasonic package sealing occurs when high frequency (ultrasonic) mechanical energy is transferred into two or more layers of thermoplastic materials. A strong, reliable molecular bond is formed between the layers. Nearly all packaging materials and laminates, with a thermoplastic sealing layer or coating, are suitable for the ultrasonic sealing (welding) process.



2.RPS-SONIC ultrasonic systems are widely used for cutting thermoplastics, textiles, films, rubber, wovens and non-wovens, and many aerospace materials. These versatile cutting systems can be operated as hand-held units or incorporated into automated solutions.



Rotary Horn 20kHz Ultrasonic Welding Machine For Pleated Sediment Water Filter 0
