|Blade Thicness:||0.6mm||Application:||Nonwoven Cutting ,foam Cutting,fabric Cutting|
Ultrasonic Cutting Device 300w,
Ultrasonic Cutting System Auto Tracking,
Titanium Cutting Blade Ultrasonic Device

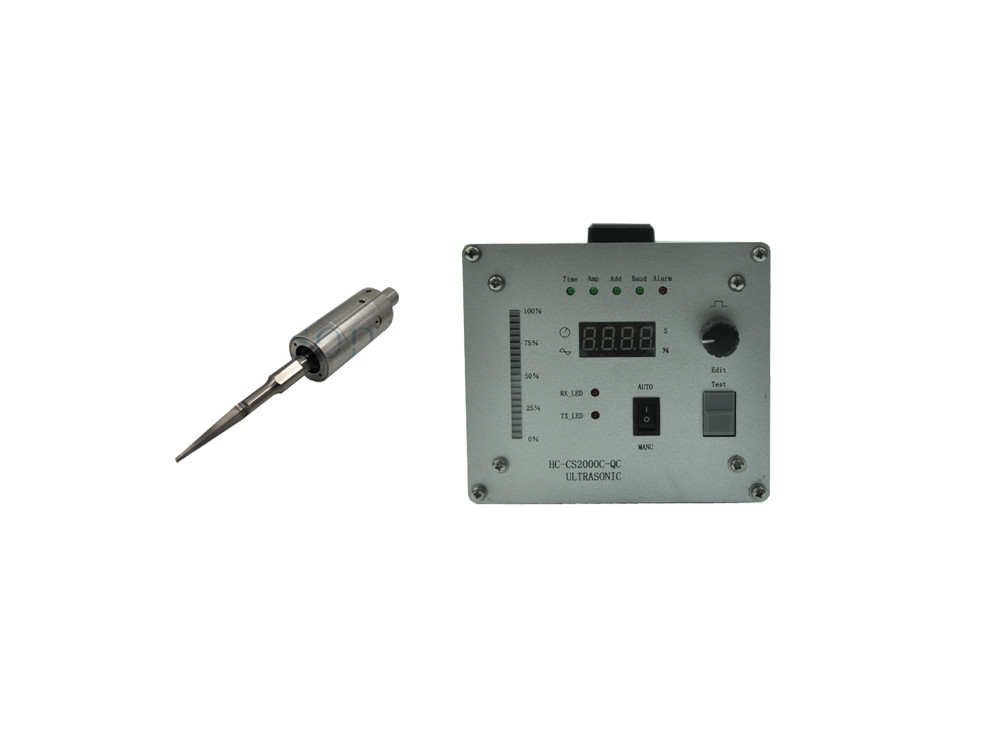

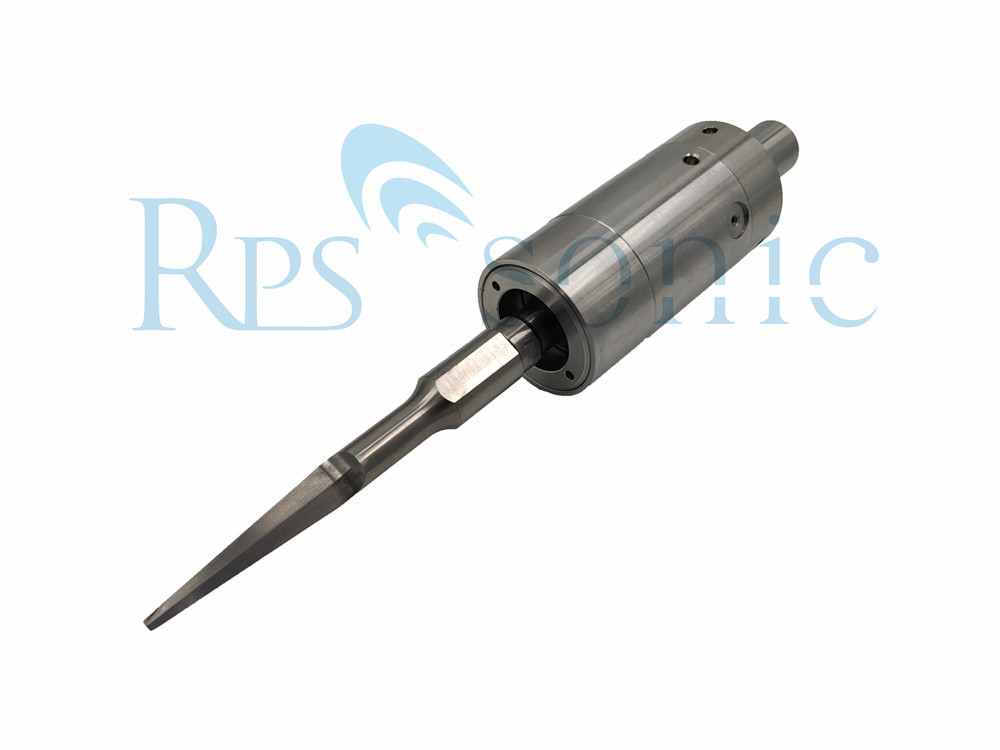

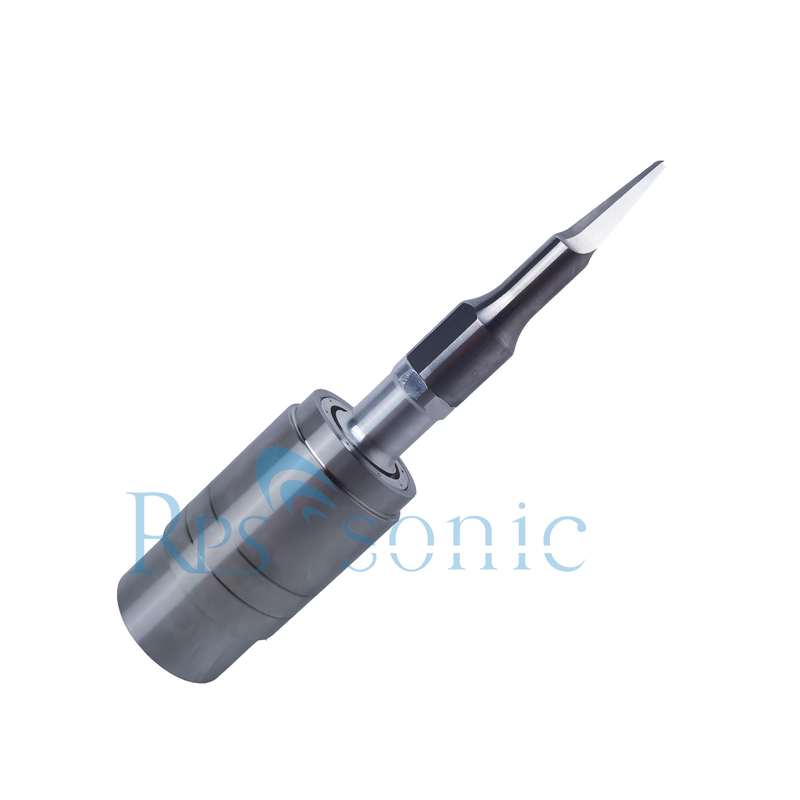

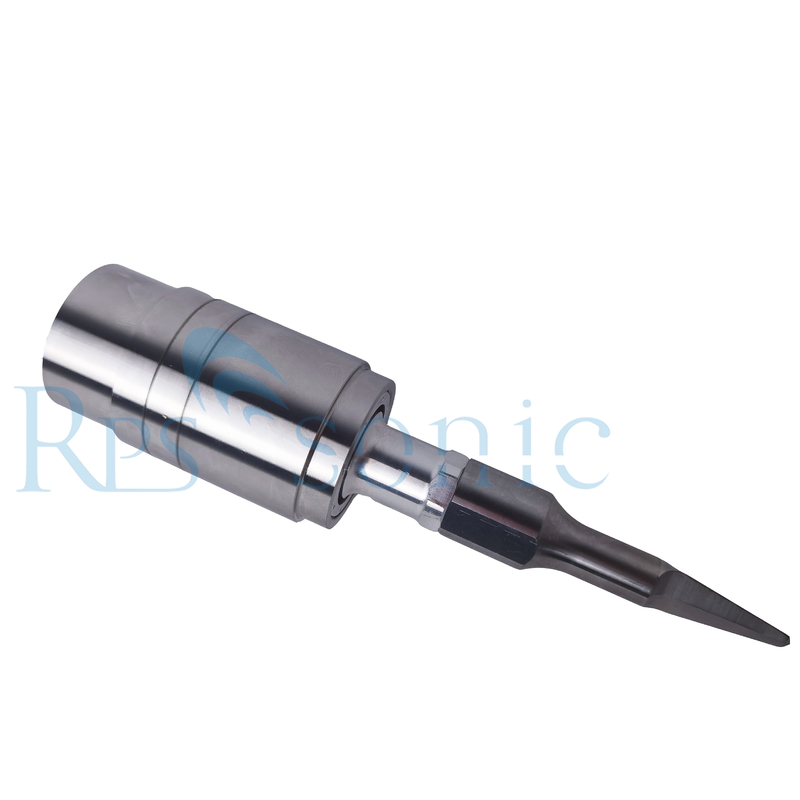

Auto Tracking 40Khz 300w Handheld Ultrasonic Cutting Device With Titanium Cutting Blade
40Khz 300w Handheld Ultrasonic cutting device for foam cutting
|Frequency adjustment||Auto-tracking type|
|Max. power output||300W|
|Power output||Infinitive adjustment|
|Power supply||AC200V 50/60Hz|
|Outer dimension (mm)||120*120*380|
RPS-SONIC Ultrasonic cutting systems are ideal for cutting rubber, composite aerospace materials such carbon fiber, Nomex and various honeycombs. RPS-SONIC’s ultrasonic cutting systems can be operated as hand-held units or incorporated into automated machinery. Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications. Solid, one-piece construction of horn blade technology virtually eliminates breakage and energy loss. Our robust designs provide minimal blade flexure which yields straight cuts without having to support the blade. RPS-SONIC cutting systems come in 20,30, 35, and 40 kHz frequencies. Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment. Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.
Ultrasonic machines include ultrasonic processing machine, ultrasonic welding machine, ultrasonic cleaner machine, ultrasonic dispersion machine, ultrasonic measuring instruments, ultrasonic levitation, etc. and we specialize in ultrasonic processing machine. We deal with ultrasonic cutters that can cut materials with less resistance or ultrasonic polisher that can polish metal such as molds with high efficiency by making use of ultrasonic wave to transmit oscillation to tools.
What is the cutting done by the ultrasonic cutter?
Ultrasonic cutter vibrates its blade 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven fabric and composite materials. Besides being excellent in maintainability, our products are environment-friendly as they do not substantially discharge any crumbs, waste water, noise, or smoke.
How does ultrasonic cutter work?
Each object has its special frequency, by which the object is stable and easy to oscillate. By adding an external force that corresponds to that special frequency, a small force can obtain a large oscillation. This phenomenon is called resonance. The cutting edge is oscillated greatly with the use of resonance.
The ultrasonic cutter is composed of a "transducer" that generates oscillation and an "oscillator" that drives the transducer. Piezoelectric elements are incorporated in the transducer, and by applying an AC voltage aligned with the characteristic frequency of transducer from the oscillator to the piezoelectric element, the entire vibrator including the cutter blade is resonated. Transducer comes with feedback-control system which transmits information of frequency or amplitude deviation to oscillator caused by cutting load. The feedback-control system can keep resonance state and amplitude of blade stable and it enable the cutters always to cut materials sharply and cleanly.
