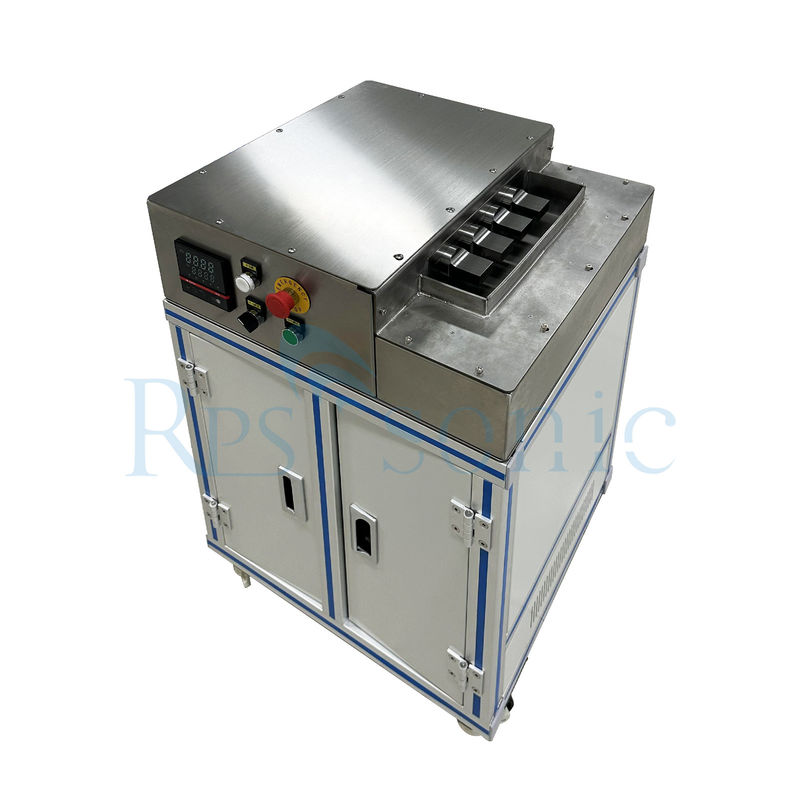

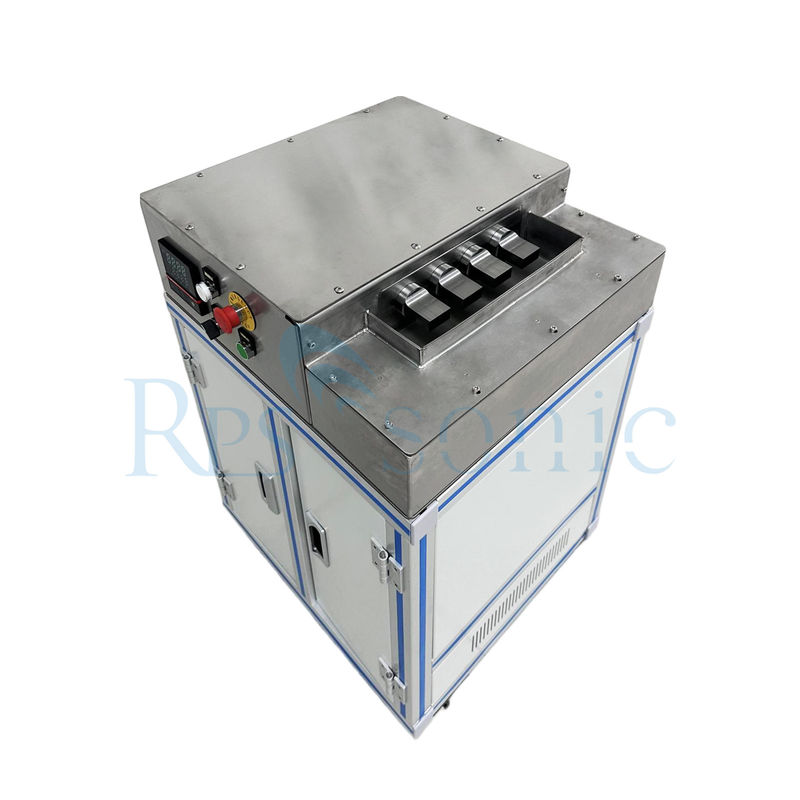

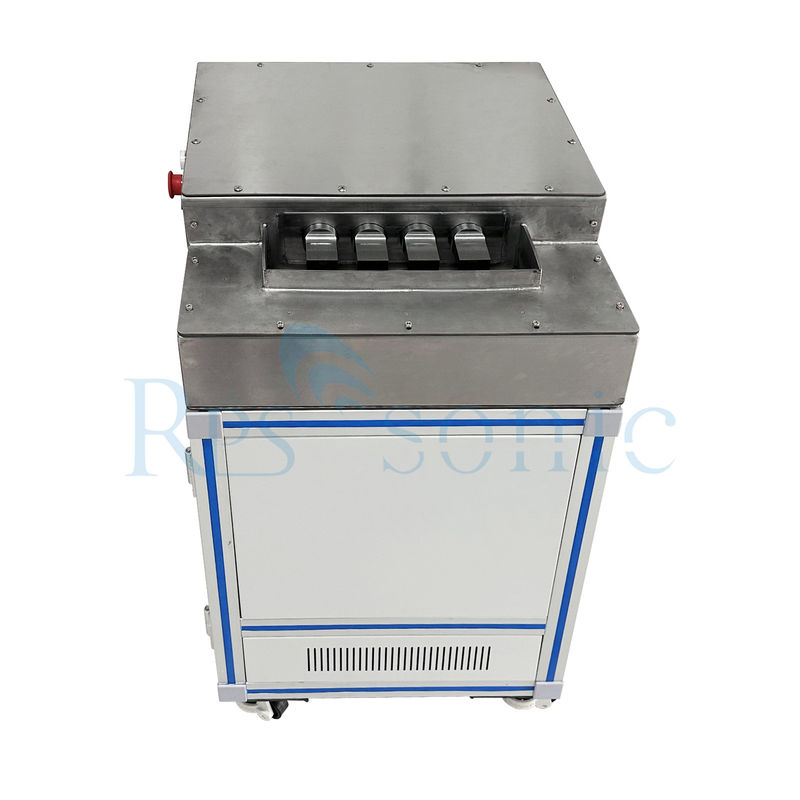

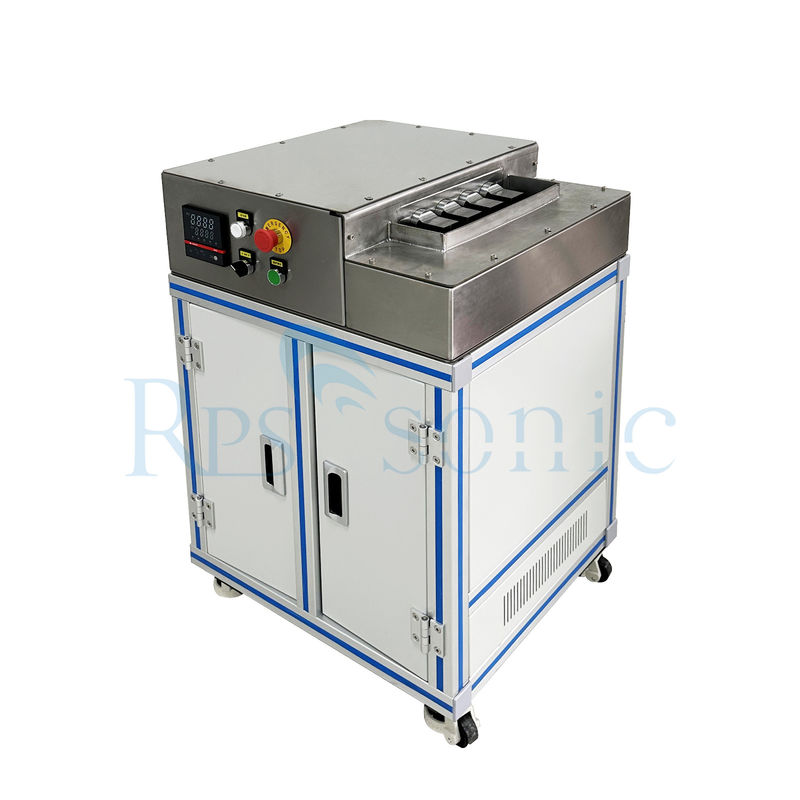

Ultrasonic Tinning Machine for Aluminium Wire
What is ultrasonic tinning machine?
An ultrasonic tinning machine is a specialized piece of equipment used in the electronics manufacturing industry. It employs ultrasonic waves to enhance the tinning process, which involves coating metal surfaces with a layer of tin. This is particularly important for improving solderability and preventing corrosion on components such as wires, connectors, and circuit boards.
Key Features of Ultrasonic Tinning Machines:
Ultrasonic Technology: Utilizes high-frequency sound waves to create microscopic cavitation bubbles in a liquid bath, aiding in the removal of contaminants and improving the adhesion of the tin.
Efficiency: The ultrasonic action allows for faster and more uniform tinning compared to traditional methods.
Quality: Produces a smoother and more consistent tin coating, which enhances the electrical conductivity and longevity of the components.
Environmentally Friendly: Often uses less harmful chemicals compared to conventional tinning processes, reducing the environmental impact.
Versatility: Suitable for various materials and component shapes, making it useful in multiple applications.
Applications:
Electronics Manufacturing: Used for preparing and coating electronic components for soldering.
Automotive Industry: Tinning of connectors and wiring to enhance reliability.
Telecommunications: Coating of components to ensure effective signal transmission.
Overall, ultrasonic tinning machines are vital for ensuring high-quality surface finishes in electronic components, contributing to better performance and reliability in end products.
Why Use Ultrasonic Tinning for Aluminum Wire?
Breaks Aluminum Oxide Layer
Aluminum naturally forms an oxide layer (Al₂O₃), which prevents proper solder bonding.
Ultrasonic cavitation (20–40 kHz) disrupts this layer, allowing molten solder to adhere.
Flux-Free Soldering
Reduces or eliminates the need for chemical flux, making the process cleaner and more eco-friendly.
Stronger, More Reliable Bonding
Ensures uniform solder coating without voids or weak spots.
Faster & More Efficient Than Traditional Methods
Ultrasonic tinning machines use the cavitation effect and mechanical vibration generated by ultrasound in molten tin liquid to achieve tinning treatment on the metal surface. The specific process is as follows:
Generation of high-frequency electrical signals: The ultrasonic generator generates high-frequency electrical signals, generally with a frequency of about 20-30kHz.
Signal amplification and conversion: After the electrical signal is amplified by the loudspeaker, it is transmitted to the ultrasonic transducer, which converts the electrical signal into mechanical vibration and generates high-frequency sound waves.

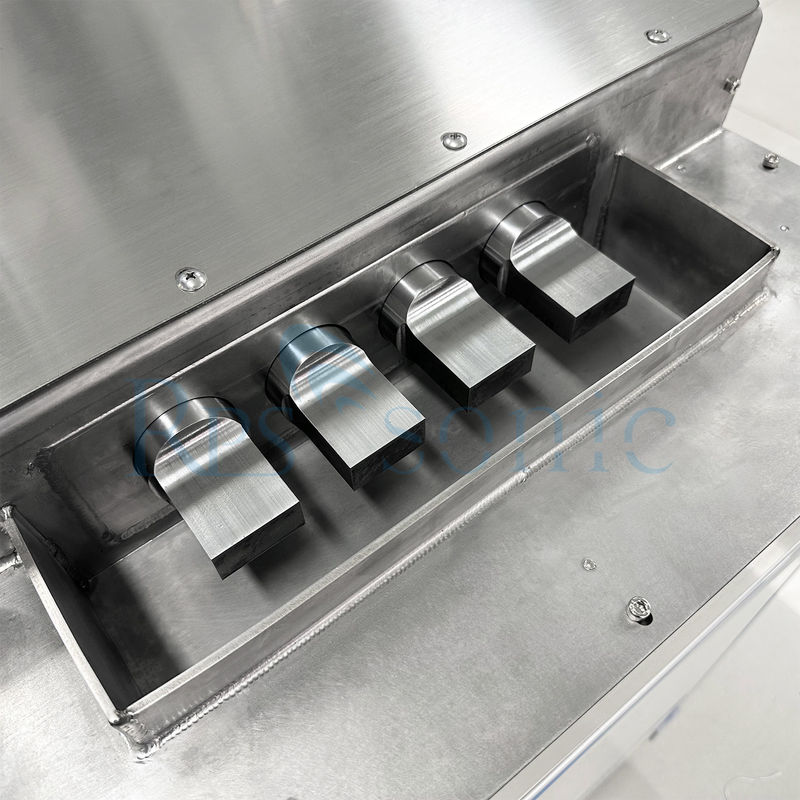

Oxide layer peeling: The sound wave is transmitted to the working head, which applies vibration to the tin liquid to generate tiny bubbles in the molten tin liquid. When the sound pressure reaches a certain value, the bubbles expand rapidly and then suddenly close, generating shock waves and microjets. These physical effects can destroy and remove the oxide layer on the metal surface.
Tin liquid penetration and adhesion: The vibration energy pushes the liquid tin into the metal micropores and gaps, so that the tin liquid can wet the metal surface and form a uniform and firm tin layer on it, eliminating welding bubbles and improving the adhesion and sealing between weldments or between tin and weldments.
What industries are currently adopting ultrasonic tinning technology?
Ultrasonic tinning technology is being adopted across various industries, primarily due to its efficiency and superior quality. Here are some key sectors utilizing this technology:
1. Electronics Manufacturing
Widely used for tinning circuit boards, connectors, and electronic components to enhance solderability and prevent corrosion.
2. Automotive Industry
Employed for tinning wiring harnesses, connectors, and electronic control units, ensuring reliable connections and performance.
3. Telecommunications
Used for coating components like antennas, circuit boards, and connectors, improving signal transmission and durability.
4. Aerospace
Adopted for critical components where reliability and performance are paramount, particularly in wiring and electronic assemblies.
5. Medical Devices
Utilized in the manufacturing of medical equipment and devices where high-quality, reliable connections are essential for safety and functionality.
6. Renewable Energy
Implemented in the production of solar panels and wind turbine components to improve electrical connections and resistance to environmental factors.
7. Industrial Equipment
Used for tinning connectors and wiring in various industrial machinery, enhancing operational efficiency and lifespan.
8. Consumer Electronics
Adopted for manufacturing items such as smartphones, computers, and home appliances, where quality and performance are critical.
9. Defense and Military
Employed in the production of secure and reliable electronic systems used in defense applications, ensuring high standards of quality and durability.
Can you explain the ultrasonic tinning process in more detail?
The ultrasonic tinning process involves several key steps and utilizes ultrasonic technology to enhance the tinning of metal surfaces. Here’s a detailed breakdown of the process:
1. Preparation of Components
Cleaning: Before tinning, components must be thoroughly cleaned to remove contaminants such as oils, dirt, and oxidation. This step is crucial for ensuring good adhesion of the tin layer.
Inspection: Components are inspected for defects or irregularities that might affect the tinning process.
2. Ultrasonic Cleaning
Ultrasonic Bath: The components are immersed in a liquid cleaning solution (often water-based) within an ultrasonic cleaning tank.
Ultrasonic Waves: High-frequency sound waves are generated using transducers, creating rapid pressure changes in the liquid. This leads to the formation and collapse of microscopic bubbles (cavitation).
Effective Cleaning: The cavitation action effectively dislodges contaminants from the surface of the components, ensuring a clean substrate for tinning.
3. Tinning Process
Tinning Bath: After cleaning, the components are transferred to a tinning bath that contains molten tin or a tin alloy.
Ultrasonic Application: Ultrasonic waves are applied during the tinning process. This helps in:
Enhancing Heat Transfer: The vibrations increase the movement of tin particles, promoting better heat transfer and faster melting.
Improving Wetting: The ultrasonic waves facilitate the wetting of the substrate with the molten tin, ensuring a uniform coating.
Time and Temperature Control: The process is controlled for optimal time and temperature to achieve the desired thickness and quality of the tin layer.
4. Cooling and Solidification
Cooling: After the components are coated, they are removed from the tinning bath and allowed to cool. The cooling process solidifies the tin layer.
Inspecting the Coating: The thickness and quality of the tin coating are inspected to ensure they meet specifications.
5. Post-Tinning Treatment
Finishing Processes: Additional processes, such as polishing or further cleaning, may be applied to enhance the surface finish or prepare the components for assembly.
Quality Control: Final inspections are performed to ensure the components meet all required standards before they are shipped for use in manufacturing.
Benefits of Ultrasonic Tinning Process
Enhanced Cleaning: The ultrasonic cleaning step ensures that surfaces are free from contaminants, which is critical for adhesion and performance.
Uniform Coating: The application of ultrasonic waves during tinning promotes even distribution of the tin layer.
Efficiency: The process reduces the time required for cleaning and tinning, increasing overall production efficiency.
In summary, the ultrasonic tinning process combines advanced cleaning and coating techniques to produce high-quality, reliable components suitable for various applications in the electronics and other industries.
